Highly efficient difference-frequency generation for mid-infrared pulses by passively synchronous seeding
Download： 936次
1 Introduction
Mid-infrared (MIR) spectrum covers several transparent windows of the Earth’s atmosphere, and accommodates so-called fingerprint region for molecular rotational-vibrational transitions. These unique features render MIR laser sources in great demand for a variety of scientific, industrial and medical applications including environmental sensing, atmospheric communication, molecular spectroscopy, material processing, microsurgical treatment, and biological analysis[1–3]. So far, various approaches have been developed for direct MIR generation, such as supercontinuum generation[4,5], optical parametric oscillators (OPOs)[6–8], quantum cascaded lasers[9], as well as lasers based on rare-earth doped fluoride fibers[10–12] and transition-metal doped chalcogenides[13].
Another common way to produce MIR light could resort to difference-frequency generation (DFG) between two near-infrared (NIR) beams. Notably, the DFG technique is featured with single-pass configuration, simple light-path alignment and reduced number of optical components, which thus provides desirable advantages like compactness, robustness and versatility[14]. Additionally, it has been shown that simultaneous injection of signal and pump fields could significantly lower the required pump power to approach high-power and/or high-efficiency performance[15–17]. Consequently, the reduced pumping threshold for MIR parametric emission would alleviate the damage risk of nonlinear crystal. Over the past decades, the nonlinear parametric effect has been exploited to prepare MIR coherent light of superior optical quality with temporal coverage ranging from continuous wave to femtosecond pulses[14].
In particular, the DFG technique for MIR pulsed generation has been greatly fueled by the maturation of efficient periodically poled nonlinear crystals, as well as the advances in high-power fiber lasers and amplifiers in the ultrafast regime. To optimize the nonlinear conversion efficiency, it is prerequisite to temporally synchronize the two NIR pulses with a sufficiently small relative timing jitter. Although the synchronized dual-color light sources could be accessed based on supercontinuum generation[18,19] or Raman-induced soliton self-frequency shift[20] from the same laser source, the available power at specified wavelength windows was usually limited by the conversion efficiency. Moreover, the nonlinear spectral extension between two disparate wavelengths might inevitably suffer from detrimental intensity instability or degraded optical coherence due to the competition of various nonlinear processes[21].
Alternatively, two-color synchronized pulses could be obtained from two independent laser sources by tightly locking their relative repetition rates[22]. For instance, two independent laser sources have been used to achieve watt-level high-efficiency mid-infrared generation by using two amplitude modulators with a common timing clock, albeit that the available output pulse duration was limited by the bandwidth of electronic devices[23]. To generate much shorter MIR pulses, active synchronization system based on two ultrafast mode-locked lasers was exploited[24]. Recently, there has been emerging investigation on all-optical passive synchronization between ultrafast fiber lasers based on cross-phase modulation[25,26]. The passive fashion of timing locking could effectively mitigate the system complexity in the active configuration, which may facilitate synchronously pumping DFG.
In this work, we proposed and implemented a novel scheme for ultrafast MIR generation based on an all-optical passive synchronization fiber laser system, which eliminated the stringent requirement of complicated feed-back system and high-speed electronics. In combination with techniques of spectro-temporal pulse engineering and high-power fiber amplifiers, we finally obtained 1.24-W MIR output with a high conversion efficiency about 77%. Additionally, thanks to the all-polarization-maintaining fiber structure, the whole system was also featured with compact layout and long-term stability.
2 Experimental setup

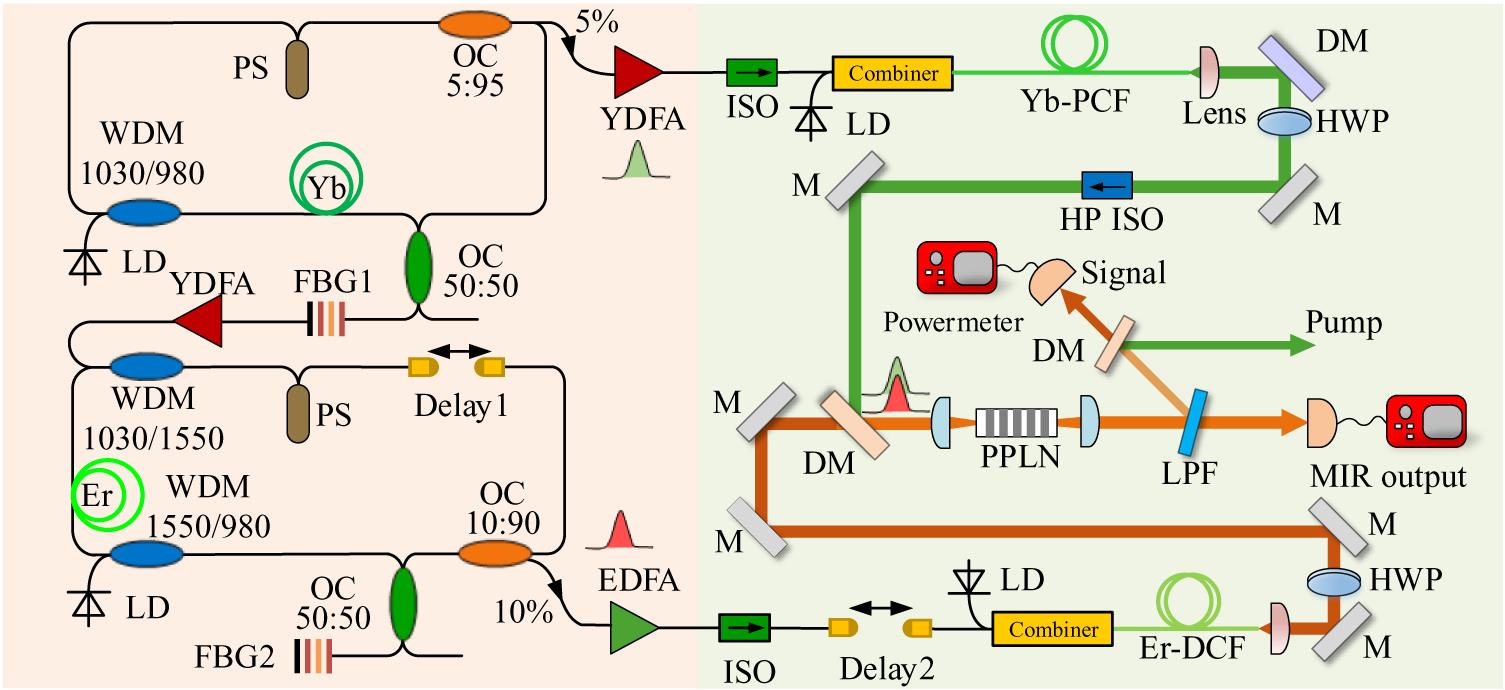

Fig. 1. Experimental schematic for mid-infrared generation based on passively synchronized ultrafast fiber laser system. The pump and signal pulses originated from mode-locked Yb- and Er-doped fiber lasers, respectively. After cascaded fiber amplifiers, the two-color pulses were steered into a PPLN crystal for implementing difference-frequency generation. Consequently, the average power and conversion efficiency for the MIR output could be effectively improved due to the synchronous seeding. LD: laser diode; WDM: wavelength division multiplexer; Yb/Er: ytterbium/erbium-doped gain fiber; OC: optical coupler; PS: phase shifter; FBG: fiber Bragg grating; PCF: photonic crystal fiber; DCF: double-clad fiber; DM: dichroic mirror; HWP: half-wave plate; M: mirror; HP ISO: high-power isolator; LPF: long-pass filter; PPLN: periodically-poled lithium niobate crystal.
In order to obtain the synchronization between the two-color fiber lasers, the transmitted portion of the FBG in the master laser was injected into the slave laser cavity after being amplified via an Yb-doped fiber amplifier (YDFA). The passive locking of the relative repetition rate was realized by the cross-phase modulation effect between the master injection and slave pulses. The underlying mechanism for the all-optical synchronization lied in the effective fast intensity modulation due to the periodic introduction of nonreciprocal phase difference within the phase-biased Sagnac interferometer loop[25]. In contrast to previous schemes, the synchronization system was configured in an all-polarization maintaining (all-PM) structure, thus gaining substantially improved stability and robustness. Notably, the tolerance range of the cavity-length mismatch could reach the centimeter level, which was essential to maintain the long-term stable performance.

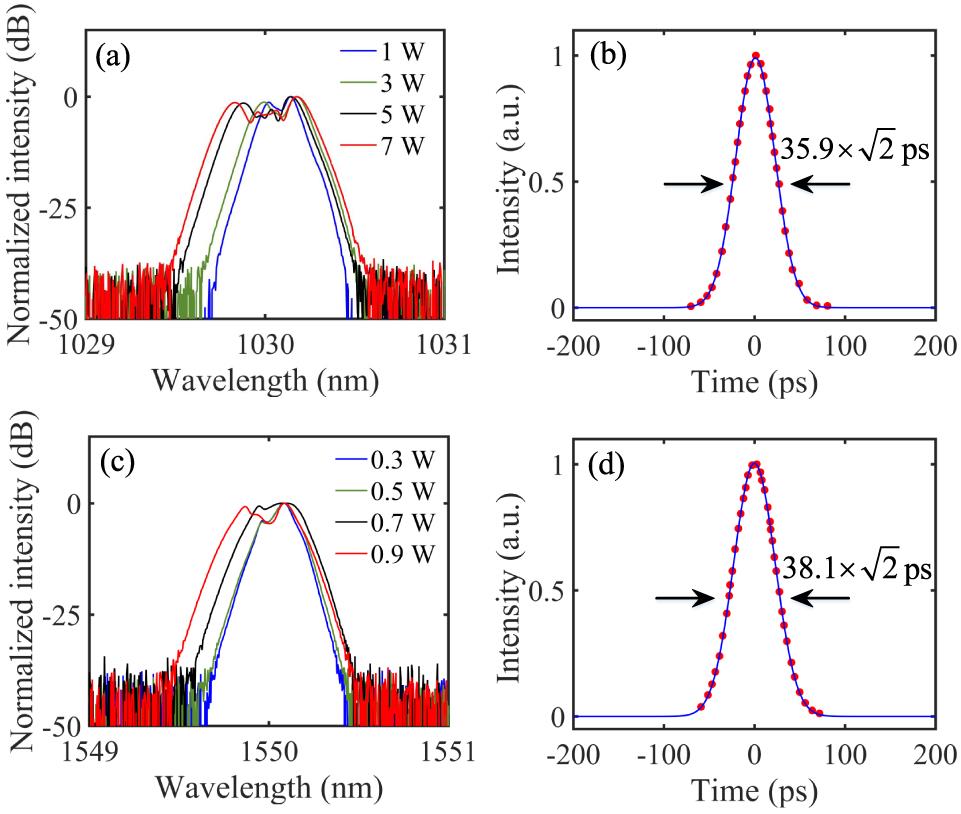

Fig. 2. Experimental characterization of output pulses from (a), (b) pump and (c), (d) signal after two-stage fiber amplifiers, including (a), (c) the measured optical spectra and (b), (d) corresponding auto-correlation traces. Note that the traces given in (b) and (d) were measured at the average power of 7 and 0.9 W, respectively. The actual intensity profiles are scaled down by a factor of
under an assumption of Gaussian pulses.
Finally, the two-color pulses were spatially combined by a dichroic mirror (DM1) and temporally overlapped by a delay line (Delay2). Their polarizations were adjusted to be perpendicular by half-wave plates to satisfy the type-0 phase-matching condition. The combined beam was then focused by an achromatic lens into a periodically-poled lithium niobate (PPLN) crystal with a length of 25 mm and a thickness of 1 mm. Both end surfaces of the nonlinear crystal were antireflection coated for three relevant bands, i.e., 1030–1080 nm, 1380–1800 nm and 2400–4500 nm. The PPLN crystal was installed in an oven with a copper heat sink for implementing active temperature stabilization. The operation temperature was set at 37.8°C with a precision of 0.1°C, corresponding to a periodically-poling period of 30.3 μm used in our experiment. As shown in Figure 1(a), the generated MIR light was collimated by a calcium fluoride (CaF2) plano-convex lens with a focus length of 75 mm. The collimated MIR beam was then spectrally purified by another dichroic mirror (DM2) and a long-pass filter (LPF) with a cutoff wavelength of 2.4 μm. The power transmissions of the CaF2 lens, DM2 and LPF for the MIR light at 3070 nm were about 90%, 78% and 89%, respectively.
3 Results and discussion

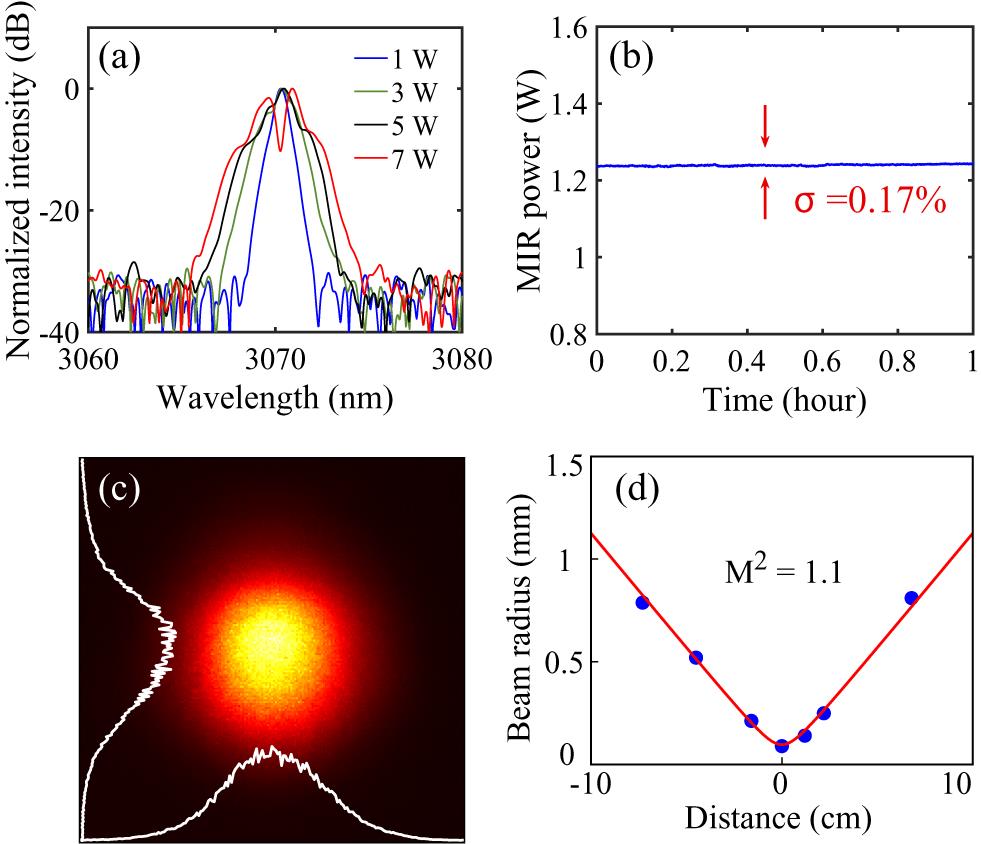

Fig. 3. (a) MIR spectra under different pump power. The signal power was kept at 900 mW. (b) Power stability of the mid-infrared output.
indicates the relative fluctuation. (c) MIR beam image at the near field as well as two section profiles along orthogonal axes. (d) Evolution of MIR beam waists along the propagation distance. Note that the central position was defined at the focal point.

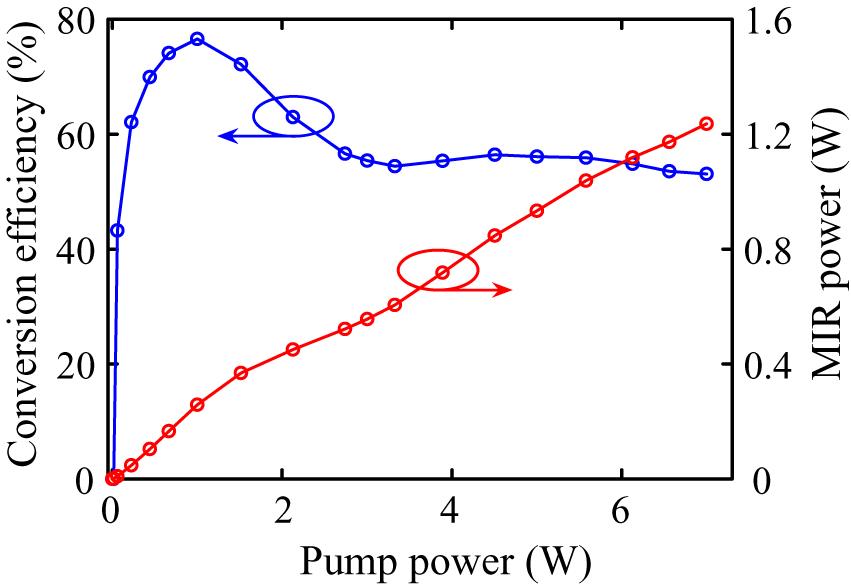

Fig. 4. Generated mid-infrared power and corresponding conversion efficiency vary as functions of the pump power. Note that the conversion efficiency was defined as total power of down-converted fields divided by the initial pump power. Connecting lines are only used to guide the eye.
It is noteworthy that without injecting the signal at 1.55 μm we could barely observe the MIR emission even at 7-W pumping, which indicated a typically high threshold to realize pronounced spontaneous down-conversion. Indeed, the synchronous seed injection could effectively induce the parametric generation[15,16]. Therefore, the requirement of intense pump for high-power and/or high-efficiency MIR generation could be significantly relaxed, which would lower the damage risk for nonlinear crystals and mitigate the performance degradation due to thermal and photo-refractive effects. We also note that the presented configuration could be extended to generate femtosecond MIR pulses. The nearly instantaneous nonlinearity based on cross-phase modulation effect enables us to effectively suppress the high-frequency noises for the passive locking, which may lead to realizing the temporal synchronization between the ultrashort pulses. In this scenario, the efficient and stable DFG would stringently require a much lower timing jitter. To this end, a hybrid synchronization technique, including the low-bandwidth active locking and the fast-response passive locking, could be used to approach sub-femtosecond timing jitters[29].

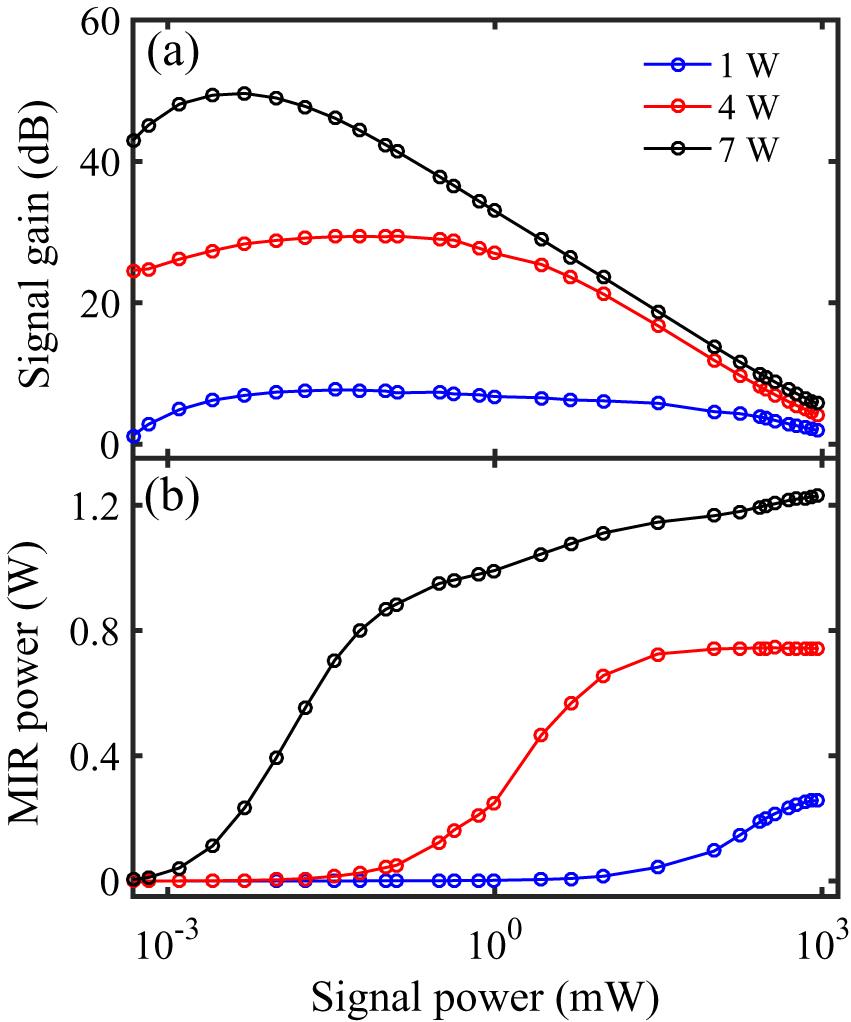

Fig. 5. (a) Signal gain against input signal power for different pump power. (b) Generated MIR power versus injected signal power under various settings of pump power. Solid lines are used to guide the eyes only.
4 Conclusion
To conclude, we have proposed and implemented a novel scheme for generating MIR ultrafast pulses, which relied on DFG between temporally synchronized dual-color mode-locked fiber lasers. Thanks to the passively synchronous seeding, the pump threshold for efficient parametric conversion was substantially reduced, which enabled us to obtain a maximum MIR output power of 1.24 W and a peak nonlinear conversion efficiency up to 77%. Notably, the whole system benefited from the all-optical passive synchronization and all-polarization-maintaining configuration, which favors compact layout, self-starting operation and superior long-term stability.
Therefore, the demonstrated system here would provide a practical picosecond MIR light source for potential applications such as laser selective cutting of biological tissues[30] and plasma-free water droplet shattering for efficient fog clearing[31]. Moreover, the presented configuration might be engineered to access MIR pulses from femtosecond to nanosecond with the help of proper fiber-laser design and intra-cavity dispersion management. Also, direct combinations with wavelength-tuning or spectral-broadening techniques would permit to obtain MIR pulsed sources with broadband spectral tunability, which would be promising for expanding fields.
