激光辐照下生物组织内光分布理论模型

光热、光化及光机械等多种激光-生物组织相互作用研究的基础都是对激光辐照下生物组织内部光分布的准确描述,而准确描述组织内部光分布的有效手段是采用各类数学模型及模拟方法。主要概述了目前国内外描述组织内部光分布的主要理论、研究模型及定量分析方法,对各方法模型的适用范围、优势及局限等进行了横向对比分析,同时对大多数仿真及实验的理论基础进行了纵向回顾,并将重点聚焦于总结国内外学者在理论上的最新突破及对实际问题的解决,以方便读者快速、全面地追踪前沿。最后总结了目前该领域研究中所面临的几个主要问题,并对今后的发展方向进行了展望。

Abstract

The basis of various laser-biological tissue interaction studies such as photothermal, actinic, and photomechanical effect studies is the accurate description of the light distribution in biological tissues under laser irradiation, and the effective methods to accurately describe the light distribution are various mathematical models and simulation methods. Therefore, the paper systematically summarizes the main theories, research models, and quantitative analysis methods that describe the light distribution in the biotissue at home and abroad. At the same time, the horizontal comparison and analysis of the application scope, advantages, and limitations of each method model is carried out. We longitudinally review the theoretical basis of most simulations and experiments, and focus on summarizing the latest theoretical breakthroughs and solutions of practical problems proposed by domestic and foreign scholars, so as to facilitate readers to track the frontier quickly and comprehensively. Finally, we point out some deficiencies in the current research in this field and make a certain prospect for the future development direction.

1 引言

激光与组织相互作用机理的研究是一项十分复杂且应用广泛的基础性研究,随着激光技术的发展,很多应用需要对不同生物组织内的激光剂量进行定量分析,如激光医学^[1-5]、激光外科^[2]、激光热疗^[6-7]及激光成像^[4]等方面的应用。人们对于**领域的研究主要集中于对非致命激光**的人体效应评估等方面,例如对人眼的暂时性致盲以及对人体皮肤的热痛刺激等^[8-9],而所有这些研究及应用的都是对激光辐照下组织内部光分布的准确描述。多年来该领域学者在无数理论和实验基础上试图通过多种数学及物理模型来准确描述组织内光的传播特性,国外方面,Jasiński^[10]、Hamdy^[11]、Gökçe^[12]、Korczak^[13]等诸多学者都对研究该问题的特定方法进行了深入的研究,但是能够较为系统地总结目前主流方法的综述类文章却很少,对这些方法的横向对比分析的文章更是匮乏;国内方面也面临着同样的问题,早期张震西等翻译的国外著作对该领域具有奠基性作用,后来以李小霞^[14]为代表的天津大学的学者较早地对该问题展开了研究,此后王亚芬^[15]、张纪庄^[16]、董晓曦^[17]和王晗^[18]等都对该问题进行了一定的回顾。但通过大量分析国内外文献可以发现,目前几乎没有能够系统性地总结组织内光分布的主要理论、研究模型及定量分析方法的文献。因此很有必要对目前最新的理论及应用进行综述。研究该类问题的关键在于通过建立激光与组织间关系的数学模型来求解光在强散射且不均匀的活体组织介质中的传播和分布变化规律,因此本文主要对不同的理论模型进行总结及对比分析,并对该理论的前沿应用进行概述,以方便读者在全面了解该领域问题的同时快速追踪前沿。

2 生物组织中的光子传输

研究光分布模型的前提是对光子在生物组织中传输特性的准确描述。激光的物理剂量以及组织的光学特性参数共同决定了组织内部的光分布,利用光分布以及组织的热物学参数表示组织的热源,进而通过辐射传热方程求解组织内的温度场分布。温度场随时间的变化会改变组织的光学特性进而改变光分布,因此组织光热过程既是一个多物理场的耦合过程也是随时间变化的动态过程,总体研究思路如图1所示,由此可见准确描述组织内的光分布是研究激光与组织光热效应作用机理中最为重要的一个环节。

表 1. 全文公式中的物理量含义

Table 1. Meaning of physical quantities in equations in this paper

Parameter	Physical meaning	Parameter	Physical meaning
J	Attenuated irradiance	s’	Direction before scattering
r=(r, z)	Spatial location	s	Direction after scattering
dω'	Micro stereoangle in direction of s’	ρ	Radial position vector
θ	Angle between s’ and s	S	Optical path length
p	Scattering phase function	g	Anisotropic factor
J_c	Coherent irradiance	I₀	Incident light intensity
J_d	Diffuse irradiance	I	Transmitted light intensity
Q	Photon source	d	Optical depth
P	Laser power	φ	Luminous flux density
ω₀	Spot radius	φ₀	Incident luminous flux density
D	Diffusion coefficient	G	Photon time dispersion
τ	Laser pulse duration	t	Calculating time
μ_a	Absorption coefficient	R	Specular reflectance
μ_t	Total attenuation coefficient	μ_s	Scattering coefficient
L	Physical thickness of sample	c	Speed of light in medium
μ_s_’	Reduced scattering coefficient	μ_t’	Reduced attenuation coefficient
k_sc	Scattered photon distribution	h	Spatial angular distribution function
k	Total photon distribution

查看所有表

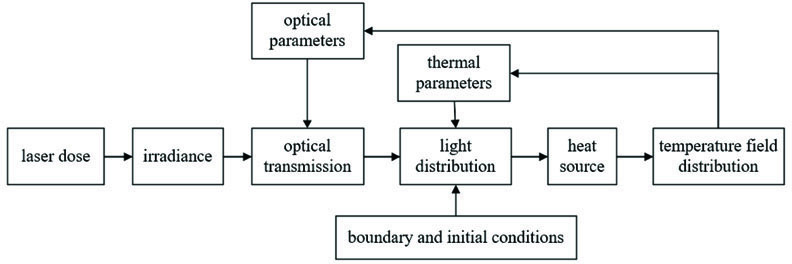

图 1. 生物组织光热效应的动态分析模型

Fig. 1. Dynamic analysis model of photothermal effect of biological tissues

下载图片查看所有图片

根据近似程度的不同,多年以来各国学者提出了多种方法来对光在生物组织内的传播行为进行理论建模,传输理论和解析理论是目前两种最主要的方法。解析理论从光的波动性出发,通过Maxwell方程组推导出相关变量的微积分方程,其在数学上的推导是严格的,但是需要得到组织的电介质特性且推导过程比较复杂,因此局限性较大。而传输理论描述了光子通过浑浊介质时的现象,因此没有上述这些限制,但这一理论具有一定的试探性特点,虽然不具备分析理论的严格性,但在大多数情况下光子传输理论的分析结果与实验结果的相关度很高,是目前国内外研究中应用最多的理论模型。表1总结了全文公式中所有符号的物理量含义。

传输理论是从光的粒子性出发,依据光在混浊介质中的传播特性建立微分控制方程。Ishimaru^[19]提出的辐射传输方程(RTE)便是对光子传输理论的详细描述,该方程描述了光子束辐照的空间变化^[20]:

\begin{array}{l} \frac{d J (r, s)}{d s} = \\ - μ_{t} J (r, s) + μ_{s} \int_{4 π} p (s, s') J (r, s') d ω', (1) \end{array}

该方程的解为^[21]

\begin{matrix} J_{c} = I_{0} δ (ω - ω_{s}) \exp (- d), (2) \end{matrix}

式中:J_c=J-J_d;δ $(ω - ω_{s})$ 为在给定方向s上的狄拉克函数。由以上分析可以看出,该理论的关键在于对呈指数型衰减的J_c的分析。为此,多年来无数的学者运用了多种方法开发能够准确描述光子在浑浊介质中多次散射过程的简化模型。这些方法主要包括随机游走理论^[22-23]、经验预测方法^[24]和加法倍增方法^[25]等,它们通常使用简化的解析表达式来预测如总透射率分布、散射的平均余弦和行进距离等参数。各种模型的理论基础包括蒙特卡罗(MC)和输运方程两大类^[26-27],输运方程的缺陷在于通常使用简单的相函数来描述各向异性或各向同性散射,这种简化不能区分例如具有相同的各向异性因子g但光子概率密度函数却完全不同的相似组织的相位函数,且利用输运方程计算各向异性散射、吸收介质、光密度或相函数非均匀分布时存在不足。图2总结了该问题研究中所涉及的理论及方法之间的逻辑层次关系。

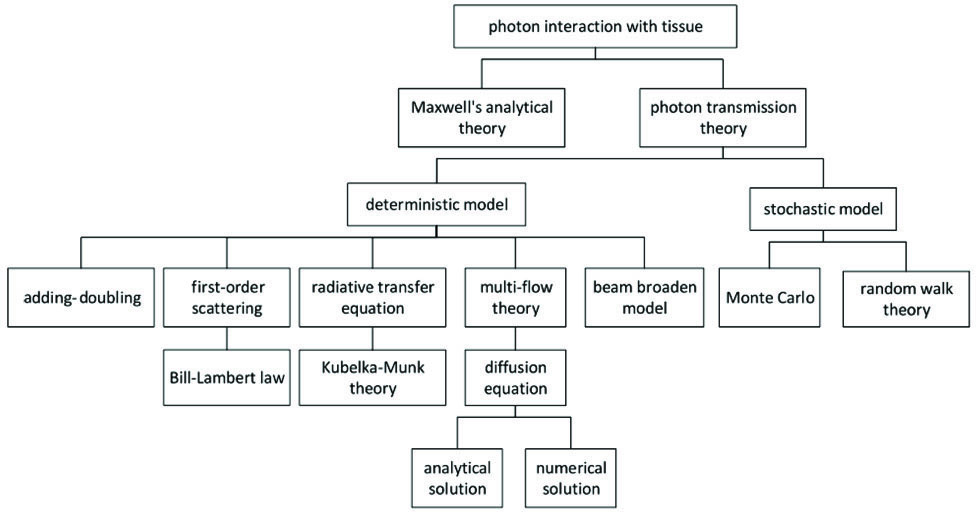

图 2. 光子输运理论层次结构图

Fig. 2. Hierarchical structure of photon transport theory

下载图片查看所有图片

3 基于MC的光分布模型

3.1 分析方法

MC法是所有组织光学建模方法中最为准确的一种,具有不受组织结构复杂程度的限制、可以兼容高散射和低散射介质、可模拟混浊介质中非均匀性和折射率变化等特性的优势。在计算量可以承受的前提下,MC法能够以任何所需要的精度求解输运方程,为复杂结构的混浊介质中的光传输问题提供了一种灵活而严谨的计算方法。MC具有统计方法的灵活性,不仅可以用来求解正问题,也可以用来求解反问题。正问题通常是对给定光学性质的组织进行光分布模拟,而反问题则是通过将MC方法模拟的光分布与实验测量值进行拟合来估计组织光学性质。MC法最先由Metropolis和Ulam^[28]提出,后来Graaff等^[29]对其进行了改进,大幅缩短了计算时间。 Groenhuis等^[30-31]提出了MC法模拟光分布的具体步骤^[32-35]。该算法的基础是随机游走原理以及概率论和统计理论,其“俄罗斯轮盘赌”的方法虽然在一定程度上节省了计算资源^[36],但却增加了光子路径长度,这影响了光子路径的分布并带来了一定的不确定性,而且使得物理解释方面也存在争议^[37]。因此,Meglinsky等^[38-39]提出了一种结合统计加权和光子路径进行有效建模的新方法,该方法解决了“俄罗斯轮盘赌”中出现的能量守恒问题,并避免了为解释结果而进行的额外计算。近年来,Lin等^[40-41]又引入了马尔可夫链来模拟光子通过混浊介质的各向异性散射过程,成功地将复杂的多次散射问题转化为矩阵形式。MC建模分析的一般过程可以通过如图3所示。图3MC建模分析流程图Flow chart of MC modeling analysisFig. 3在实际应用过程中,MC法常与积分球(IS)组合成MC/IS系统,通过该系统可以准确测量组织的光学参数并描述光分布,例如:Pushkareva等^[42]使用MC法结合双积分球实验验证了激光与新生儿皮肤组织的相互作用;Cook等^[43]对现有MC法进行了扩展以模拟IS实验,并用解析表达式表示出了IS中光子重新入射到组织上的概率。Zhu等^[44]对2013年以前的MC方法在组织光学中的应用进行了比较详细的综述;Wehner等^[45]模拟了激光生物组织焊接过程中激光波长和光束轮廓对软组织凝血深度的影响;Petrova^[46]通过对波长为800 nm的激光束进行数值模拟来研究人体皮肤的温度分布;Chen等^[47]对人体脂肪组织中的光散射和吸收进行了准确描述;Burhan和Tozburun^[48]模拟了1455,1490,1550 nm的激光使人体神经达到激活温度的最佳刺激参数,这为光学神经刺激技术的发展提供了参考。此外,Lim等^[49]使用具有光学特性的多层组织模型进行MC模拟以评估光通量分布,这为采用光动力疗法治疗癌症起到了重要作用;Halim等^[50]定量研究了4层三维皮下脂肪层厚度变化与肌肉氧合的关系,进一步研究了光在多层组织内的传播问题;Ash等^[51]使用多层皮肤模型的定制MC仿真软件模拟了组织中紫外线、可见光和红外辐射的穿透深度;Hamdy^[11]用MC仿真模型获取了人脑组织的空间分辨稳态散射反射谱,研究了正常和凝结状态下不同大脑组织中的光传播,又基于同样的方法对光在乳腺组织中的传播进行了数值研究,并将其用于乳腺癌的早期检测中^[52]。总的来说,MC法的优点在于它考虑了不匹配界面样品边缘的光损失、介质的任何相函数,以及入射光束的大小和任意角度分布^[32,53-54],其最主要的缺点是其统计性使得跟踪大量的光子需要很长的时间来确保良好的收敛性。

3.2 加速方法

目前主要通过5种加速方法来改善MC在速度方面的缺陷,分别为比例MC(SMC)、混合MC(HMC)、微扰MC(PMC)、减方差技术以及并行计算MC等方法。

3.2.1 比例MC

SMC法基于散射特性决定光子路径而吸收特性只影响存活光子权重这一事实,通过记录单个或多个基线MC光子的生存历史,应用比例关系来估计具有不同光学特性组织模型的漫反射或透射。该方法由Graaff等^[29]率先提出,并快速计算了具有不同光学特性的平板状组织的总反射率和透射率,Kienle和Patterson^[55]对于Graaff理论进行了扩展,以模拟具有任意光学特性的半无限均匀组织模型的空间和时间分辨漫反射,但该方法的离散表示和插值都可能引入误差,这些误差在计算时往往会被放大。Pifferi等^[56]为此又提出了一种类似的方法,与Kienle和Patterson所提方法不同的是,Pifferi所提方法通过利用MC模拟结果在不同散射系数范围内的插值并通过对μ_a进行缩放来计算反射率和透射率。该方法提高了不同μ_s下结果的准确性,但代价是显著增加了基线MC模拟的数量。以上几位学者所提出的方法虽然速度快,但都无法避免离散和插值引入的误差。为了提高精度,Alerstam等^[57]通过对单个光子进行比例运算实现了对Kienle和Patterson所提方法的改进;后来Palmer等^[58]通过结合比例和卷积运算将Graaff等的定标方法从铅笔束照明扩展到光纤照明;Wang等^[59]提出用两个卷积公式计算单光束在半无限介质中漫反射的方法。但这些方法都只涉及均匀的组织模型,Liu等^[60]提出了一种将比例方法应用于多层组织模型的方法,并且该方法对两层和三层上皮组织模型进行了验证。近年来Jiang^[61]、Sabzevari^[62]和Rearden^[63]等诸多学者都基于SMC方法解决了不同领域的实际问题。

3.2.2 微扰MC

PMC方法同样需要一次基线模拟以分析每个光子的出射权重、路径长度和碰撞次数的轨迹等信息,可给出基线模拟中的存活权重与微扰理论中的存活权重之间的关系^[64-65],这使得该方法对每一次微扰的近似是有效的^[66]。PMC法与SMC法相比在本质上是相似的,因此其精度取决于微扰模型中的新光学属性与基线模拟中的原始光学属性之间差异的大小,相反SMC本质上是精确的,因为它不考虑光学属性的差异,单纯的比例缩放不会产生近似现象。当扰动区域较小时,PMC的一个重要优势是简单和快速,因此广泛应用于光传输的反问题研究中。例如,Sassaroli等^[64]提出了两个微扰关系,基于从均匀介质基线模拟中所获得的轨迹信息估计了引入散射/吸收不均匀介质的漫反射时间响应。Hayakawa等^[65]证明了可将微扰关系与双参数Levenberg算法相结合,以快速解决双层组织模型中的光子逆迁移问题,并用这种方法从层状上皮组织模型中提取了光学特性^[67]。Kumar和Vasu^[68]提出了一种基于PMC法提取具有低μ_s的异质组织光学属性的新方法;Sassaroli^[69]又提出了一种可用于在具有任意光学属性的组织模型中研究光子迁移的快速PMC方法,且该方法需要的硬盘空间最小,特别适用于解决像点变换等成像逆问题;Zhu和Liu^[44]提出了一种结合SMC和PMC方法的混合方法,该方法与单独的SMC或PMC法相比,不仅具有速度上的优势也具有范围上的优势。Song等^[70]提出了一种新的快速PMC法;Perfetti和Rearden^[71]用连续能量的PMC法开发了用于灵敏度分析的广义理论;Leino等^[72-73]将PMC法用于定量光声层析成像技术,这为该领域的研究带来了突破。

3.2.3 混合MC

HMC法是将其他较快速的方法耦合到标准MC模拟中,从而将MC在精度上的优势与其他方法在速度上的优势相结合,早期Duane等^[74]对该方法进行了较为详细的概述。HMC法中最常见的是将标准MC与扩散理论相结合,例如Flock^[75]、Wang^[76]、Luo^[77]等采用该方法解决了相关问题,他们首先对组织的光学性质和几何参数进行MC模拟,然后用MC模拟的结果对扩散理论的计算结果进行修正。HMC法不仅体现了MC法可在光源附近进行精确模拟的优势,也体现了扩散理论在远离光源位置的模拟速度优势。Wang^[78]将该方法从半无限介质推广到有限厚度浊介质中;di Rocco等^[79]采用HMC法加速了对深度不均匀的平板几何介质的MC模拟;Tinet等^[80]将用于核工程领域的统计估计器应用于模拟时间分辨光散射问题的快速半解析MC模型之中;与Tinet等所提出的解法类似,Chatigny等^[81]基于HMC法将乳腺组织模型分为多个各向同性和各向异性区域,有效地模拟了时间和空间透射。Alexandrakis等^[82]提出了一种快速扩散的HMC方法,用于模拟双层人体皮肤模型中的空间分辨反射和相位延迟,并证明了HMC法比标准的MC模拟在速度上要快数百倍。近年来,Zhuang等^[83]将基于能量区域划分的HMC法用于3D中子输运模拟之中;Prokhorenko等^[84]用HMC方法完成了对结构和特性的预测;Lee和Mycek^[85]通过带有射线跟踪的HMC法实现了混浊介质中的荧光测量。这些研究都充分证明了HMC法的独有优势和巨大潜力。

3.2.4 减方差技术

除了以上综述的混合方法外,最初应用于模拟中子输运的多重减方差技术^[86]也已被用于组织中光输运的MC模拟。例如,加权光子模型和俄罗斯轮盘赌方案已经被用在多层组织中光子传输的MC建模中^[87]。Liu和Ramanujam在MC建模中使用了最古老和使用最广泛的几何分裂减方差技术以加速MC数据库的创建,该方法将组织模型分成若干个域并通过在增加重要域中采样机会的同时减少在其他域中的采样机会来减小重要体积中的方差,根据模拟的漫反射估计了双层上皮组织模型的光学属性。Chen和Bai^[88]提出了一种受控MC方法,引入了一个具有可调吸引因子的吸引点来使光子更有可能沿与探测器相交的方向传播,以此提高轨迹生成的效率,该方法可同时应用于透射几何^[88]和反射几何^[89]中。后来,Behin-Ain等^[90]扩展了Chen的方法,有效地构建了由可见光或近红外光通过散射介质所产生的早期时间点扩展函数;Lima等^[91-92]通过在标准MC中加入优化重要性抽样的方法,在时域OCT的快速MC仿真中获得了数百倍的加速。最近的研究中,Dubey等^[93]提出了一种基于随机梯度Langevin动力学的减方差技术;Chatterji等^[94]就关于随机梯度的MC减方差理论进行了较为详细的综述;Kilby等^[95]基于MC的减方差技术解决了辐射传输层析成像问题。总而言之,4种加速方法都有各自独特的优势及局限,表2从加速性能、相对误差、优势和局限4个方面对上述方法进行了总结^{[60,69,91-92,96]}。

表 2. 不同的加速MC方法的特点比较

Table 2. Comparison of characteristics of different accelerated MC methods

Method	Acceleration relative to standard MC	Relative error in simulated optical measurement	Advantage	Disadvantage
SMC	200	Less than 4%	No approximation is made, and it is accurate and fast	Currently only be applicable to hierarchical organization models
PMC	1300	Can be less than 4% , depending on magnitude of perturbation	It is applicable to tissuewith complex structures	Sensitive to disturbances in scattering
HMC	300	Around 5%	It has a larger applicablerange than PMC	Calculation is relatively complex and specific area must be homogeneous
Variancereduction	300	Around 5%	There are a variety ofchoices available.	Limitation varies withspecific technique

查看所有表

并行计算的MC法是单纯的并行加速计算机技术在MC运算中的应用,可以与上述4种方法相结合,此处不作详细叙述。除了SMC、PMC、HMC、减方差技术及并行计算MC等相对较成熟的方法之外,还有很多新方法被提出。Hardy等^[97]建立了任意形状混浊介质中光子迁移的MC模型,将底层的数学形式转换为OpenCL语言代码,这使得在GPU上的模拟加速比大幅提高,从而进一步证明了并行加速这一观点;Talebi等^[98]提出了基于MC模拟的优化快速数值方法,用多种算法来解决在任意对流边界条件和内部热源分布情况下的稳态和瞬态热传导问题;Marquet等^[99]用两个概率分布函数模拟了混浊介质中的光分布以消除重复参数、提高运算效率。Graaff等^[29]提出了一种压缩MC(CMC)算法来描述光传输,CMC模型的应用较为广泛。Lin等^[100]用CMC法研究了具有任意μ_a和μ_s的混浊介质的空间分辨反射率,证明了该方法比传统的MC方法更加高效快速。Khalil等^[101-103]提出反问题图解方法;van der Zee等^[104-106]运用了一种在初步MC模拟之后生成查找表的方法来提高计算效率。

总而言之,MC方法除计算时间较长之外并无严重的缺陷,在很多方面具有其他方法都无法替代的优势,随着生物组织模型的复杂程度、精细程度以及耦合程度的不断提高,MC法势必展现出无限的潜力。此外,随着计算机辅助算法的不断成熟,MC法在计算时间上的瓶颈必然会被突破,因此越来越受到广大学者的青睐。

4 基于输运方程的光分布模型

4.1 光束加宽模型

光束加宽模型是基于光传输过程中的相干辐射度呈指数衰减所推导出来的,该模型将内部热源作用分为散射和吸收两部分。用数学方法描述组织的内部热源,可以较为合理地描述光在组织中的分布。该理论认为只有组织对光的吸收作用会导致光能量减小,从而产生热效应,散射作用只会造成光束在向前过程中的加宽。Grossweiner等^[107-110]的研究表明,激光器中发出的激光可以被认为呈高斯分布,对从Boltzmann传输方程中得出的方程进行近似,可以得到

\begin{array}{l} \frac{1}{c} \frac{\partial}{\partial t} φ (r, z, t) - D \nabla^{2} φ (r, z, t) + \\ μ_{a} φ (r, z, t) = Q (r, z, t), (3) \end{array}

式中:μ_aφ $(r, z, t)$ 代表组织中的热源项。通过求解(3)式可以获得组织内部光通量的表达式为

\begin{array}{l} φ (r, z, t) = (1 - R) φ_{0} \times \\ \exp [- 2 (r^{2} / {ω_{0}}^{2}) \exp (- μ_{s} z) - μ_{t} z] \times \\ \exp [- 4 {(t - τ)}^{2} / τ^{2}] 。 (4) \end{array}

可以看出,利用已知激光参数及组织光学特性参数可描述空间中任一点的光分布,组织吸收作用所产生的热源项可表示为(4)式与μ_a的乘积。该模型很早就被应用于输运方程以研究生物介质^[30,111],比如用基于该模型的光子密度波法可以检测肿瘤或者测量组织光学参数等^[27]。该方法得到了国内外学者的广泛应用^[112],李小霞等^[113]较早地对该模型进行了深入研究并进行了大量的实验,Alexandrakis等^[82,114]将生物组织看成一个线性系统,通过将入射光强与格林函数进行卷积,推导出了有限宽光束在圆柱坐标系下的传输过程并给出了光传输方程,从而克服了将入射光束假设为无限细所带来的局限性。近年来关于光束加宽模式的应用也趋于成熟,例如Li等^[115]建立了皮肤的两层结构模型,计算了高斯分布的激光热源下模型的温度响应,从而研究了组织焊接应用于组织缝合线置换技术中时存在的问题;2017年Wang等^[116]在经典漫射方程的基础上用该方法对多层组织的热源项描述进行了总结,得出了多层生物组织内部各层光分布的通用表达式。总而言之,该方法的优点在于在某些特定情况下可快速给出解析解^[27],成为了描述近似高前向散射介质中光分布的最强大解决方案。

4.2 一阶散射理论

一阶散射理论^[117]将辐射传输方程及其解简化为Beer-Lambert定律(BLL)的简单情况,所以入射激光束在光轴上z点的光强可由BLL表示为

\begin{array}{l} I (z) = I_{0} \exp [- (μ_{a} + μ_{s}) z], (5) \\ μ_{t} = μ_{a} + μ_{s} = \frac{1}{L} \ln \frac{I_{0}}{I} 。 (6) \end{array}

一阶散射的基本假设是漫射强度远小于相干强度,多次散射的影响并未被充分考虑,因此该方法只局限于平面入射波,这样的解法仅在光学深度z≪1或反照率远小于0.5时可用。这种情况在光学深度相当小的光学诊断中是常见的;相反,高散射的波段(600~1300 nm)会造成光学深度z远小于1的假设不成立,因此利用一阶解可能不会得到精确的结果^[14]。即便如此,一阶散射法在生物医学领域中仍然具有十分广泛的应用,例如Boas等^[118]基于该方法并通过实验研究了混浊介质中光子与球形粒子的相互作用,从而解决了在多个散射中心的情况下进行成像的问题;Patterson等^[119]基于混浊介质中的辐射输运方程,利用数学模型对生物组织中的光通量分布进行了研究;Li等^[120]用低功率激光器采集厚生物组织的二维图像,通过该方法测量超声调制柱光透射后激光散斑图样的形成。近年来计算机技术的发展也推动了研究者对一阶散射理论的深入应用,例如,Jasi ski等^[10]基于该方法建立了组织中的光分布模型,对Pennes方程描述的激光辐照下二维均匀生物组织中的瞬态传热过程进行了数值分析。该方法在漫反射率很小等特定情况下可以得到分析解,但其只适用于平面入射波,而且没有考虑到多次散射,因此不适用于高散射的波段,在应用方面具有较大的局限性。

4.3 光束扩散模型

光束扩散模型(BSF)^[121]认为扩散程度是由μ_s和z决定的^[122],它考虑了通过不同路径长度的高阶光子的影响,近似计算了浑浊介质中的光分布,而且它还可用于计算光强度的时间色散,该方法中格林函数是脉冲源在混浊介质中单向传播的解析近似。Beck和Teboulle^[123]建立了该方法的加速梯度搜索法以求解μ_s和g。铅笔束的BSF在精度相当的情况下比基于统计学的MC法的计算时间要短得多。此外,该模型不但可以应用于均匀光源,也适用于高斯光束等其他光束,散射光子分布k_sc $(z, ρ, τ)$ 可表示为^[121]

\begin{array}{l} k_{sc} (z, ρ, τ) = \\ \exp [- μ_{a} (z + C_{τ})] G (z, τ) h (z, ρ, τ), (7) \end{array}

式中:τ=t-z/c是多径时间;h $(z, ρ, τ)$ 是空间分布;G $(z, τ)$ 是时间色散分布。对于未散射的光子,τ=0。归一化的空间角分布函数h $(z, ρ, τ)$ 可表示为

\begin{matrix} h (z, ρ, τ) = \frac{3}{4 π τcz} \exp (- \frac{3}{4} \frac{ρ^{2}}{τcz}) 。 (8) \end{matrix}

归一化的时间色散分布函数G $(z, τ)$ 可表示为

\begin{matrix} G (z, τ) = \frac{μ}{σ^{2} Γ (\frac{μ^{2}}{σ^{2}})} \frac{μτ}{σ^{2}} \frac{μ^{2}}{σ^{2}} - \exp (- \frac{μτ}{σ^{2}}), (9) \end{matrix}

式中:μ和σ分别是τ的一、二阶矩,且仅取决于散射角θ余弦的一、二阶矩。对k_sc $(z, ρ, τ)$ 进行时间上的积分,并将其添加到未散射光子的分布,从而获得总分布k $(z, ρ, τ)$ 为

\begin{array}{l} k (z, ρ, τ) = δ (ρ) δ (τ) \exp [- (μ_{a} + μ_{s}) z] + \\ [1 - \exp (- μ_{s} z)] k_{sc} (z, ρ, τ) 。 (10) \end{array}

总的来说,BSF模型将散射光子k_sc $(z, ρ, τ)$ 的分布表示为exp $[- μ_{a} (z + C_{τ})]$ 、h $(z, ρ, τ)$ 、G $(z, τ)$ 的乘积,而后将随时间变化的k_sc $(z, ρ, τ)$ 分布对时间进行积分以获得强度值k_sc $(z, ρ)$ ,并将未散射光子的分布添加到总分布k $(z, ρ)$ 中^[124]。通常情况下,BSF的仿真过程可分三个阶段:第一阶段是三维铅笔束响应的计算,第二阶段是铅笔束响应的角度卷积计算,第三阶段是光纤尖端面积的空间卷积计算。很多学者利用BS方法研究了激光在组织中的转换并解决了实际问题^[112],但需要注意的是,目前几乎所有描述光在混浊介质中传播的方法都没有考虑光的波特性,该方法也不例外,因此当使用相干光源且光路长度不同时,具有不同相位的光子的干涉将形成斑纹图案,该斑纹图案会降低每个位置的总辐照水平^[124]。在基于BSF的最新研究中,Yona等^[124]通过在一个开源的3D仿真平台上准确地刺激目标神经元,估算出了脑组织中可见光的透过率;Gökçe和Baykal^[12]通过对在小鼠肝脏组织中传播的激光阵列光束的研究,并基于光子束的数量、光源尺寸、波长和阵列的环形半径模拟了光束轮廓的变化。利用BSF不仅能够获得组织的光学参数而且能够实现对具有不同参数衰减曲线的拟合,因此BSF既适用于正问题研究,也适用于反问题研究。

4.4 漫射近似理论

基于漫射近似理论进行研究的前提是输运方程中的漫射项不再具有各向异性^[125],通常情况下可用μ_s'将各向异性散射转变为各向同性散射来进行计算^[19],因此漫射近似的定义为

I=Aexp(-μ_tz)+Bexp(-μ_effz), (11)

式中:A+B=I。当设置不同的μ、μ_s和g值时,漫射近似计算可以得到相似的辐照度,相似关系可表示为 ${\tilde{μ}}_{a}$ ≈μ_a, $\tilde{g}$ =g,最终光的吸收和散射特性可表示为

\begin{array}{l} {\tilde{μ}}_{s} = μ_{s} (1 - g) = μ'_{s}, (12) \\ {\tilde{μ}}_{a} = μ_{a} 。 (13) \end{array}

漫射近似理论使得运算变得相当容易,只需要知道生物组织的μ_a以及μ'_s即可表示生物组织的光学特性,因此漫射近似理论在该领域研究中有着广泛的应用和不可替代的价值^[54,126-128],尤其是在生物医学中应用广泛,例如可用于测量薄样品的光学特性^[129]、红细胞的光散射^[130]、人体组织的漫反射^[131],可进行漫反射光学层析成像^[132],可提高吸收介质中散射模型的准确性^[133],用于分析组织光学活检的光散射的分形机制^[134]以及具有非散射区的光学层析成像^[135]等多个方面。Contini等^[125]还对半无限扩散介质的含时扩散近似进行了分析,结果表明,折射率的影响对于μ_a和μ_s的表达式是不能忽略的;Karagiannes等^[136]在宽光谱范围内测量了动植物组织的光学参数,测量结果与标准结果很好地吻合。此外,该方法也可以用来模拟均匀脂内体模的实验间隙辐射数据,例如Grabtchak等^[137]利用此方法测定了650~900 nm范围内光的吸收和散射。当应用中需要激光脉冲持续一定的时间并达到一定的形状,或者需要激光脉冲在某个时间达到强度阈值时,可以使用RTE的漫射近似进行分析,例如,Morales-Cruzado等^[138]发现在短脉冲入射的情况下使用RTE的漫射近似来计算变形脉冲的解析表达式,有利于从传输脉冲中恢复介质的光学特性。很多组织光热效应的模型都是采用漫射方程来求解激光辐照下的内部热源^[139],例如,Yona^[124]、Liu^[140]、Jasi ski^[139]等都是基于该方法求解内部热源,而后对不同的生物组织在激光辐照下的光热效应过程进行了数值分析,Majchrzak等^[141]还对通过该方法获得的内部热源模型的参数进行了敏感性分析。漫射理论的优势在于提供了一种较为快速的方法来近似计算混浊介质中光传输的物理量,该模型的局限在于激光强度在各向异性的光子源或边界附近无效^[142],因此该方法不适用于研究光源附近及生物组织边缘区域的光的传输与分布,这在实际应用中也具有较大的局限性。

总而言之,不同的模型有各自的优势和局限,具体方法的选择取决于组织的光学性质、光源的参数以及所需要的精度。表3为定量分析方法的分类及特性对比。

表 3. 定量分析方法的分类及特性对比

Table 3. Classification and characteristic comparison of quantitative analysis methods

Quantitative analysis method	Advantage	Limitation
First-order scattering	When the diffuse anti-illumination rate is very small; the analytical solution can be obtained	Limit to plane incident waves;not take multiple scattering into account; not be applicable for high scattering bands
Monte Carlo simulation	Consider the light loss of the sample edge that does not match the interface, any phase function of the medium, and the size and arbitrary angular distribution of the incident beam	Because of its statistical reasons, it requires a lot of calculations and a long time to ensure good statistical convergence
Beam broadening mode	Most powerful solution for describing light distribution in approximate high forward scattering media	Equivalent to MC method in accuracy
Diffuse approximation	High calculation speed and high precision;analytical solutions can be given in some specific cases	Not be suitable for studying the light transmission and distribution near the light source and the marginal area of biological tissue
Beam spreading function	Consider the influence of higher-order photons propagating through paths of different lengths;allow to calculate the temporal dispersion of light intensity; much faster than MC method	Not consider the wave characteristics of light
Inverse adding-doubling	Iterative solution it can be obtained quickly by computer; it can be used for more than one type of tissue block	Can only be solved under the conditions of limited tissue thickness and uniform optical parameter distribution; the solution process is independent of time
Kubelka-Munk	Simple mathematical form	Only be used for one-dimensional diffuse radiation with scattering far exceeding absorption;only be used be used be suitable for processing one-dimensional structural geometry; theoretical model is not perfect

查看所有表

5 结束语

主要对目前国内外研究激光辐照下组织内部光分布问题的数学模型进行了综述,通过对大量文献的总结提炼,发现目前该领域研究中所面临的几个主要问题。

1)系统研究动态性不足。在理论方面,目前几乎所有的理论都忽略了活体组织的自我调控以及对外界的应激反应等因素对组织光学性质造成的影响;在实验方面,目前绝大部分研究采用离体组织样本,而离体样本的血流灌注率及初始温度对结果造成的影响难以忽略,这些假设及限制都会给需要精确定量分析激光剂量的相关问题带来较大的误差。

2)波段研究规律性不足。目前的研究大多集中于常用波段的激光与组织的相互作用,人们对于很多其他波段的激光在组织中的光学和热物学性质不够了解,对于不同波段的激光在浑浊介质中传播的规律性研究更是欠缺,因此今后需要细化对特定组织中非常用波段的特异性模型并探索不同波段在相同浑浊介质中传播的规律。

3)光学模型功能涌现性不足。在计算机模型方面,很多研究存在边界条件设置不合理等问题,例如用无效的一维假设来忽略损失^[143];在实体模型方面,目前大部分复合模型的不同部分还是相对简单的组合,较差的耦合性使其不具备良好的系统性,因此整体系统所带来的功能难以发挥。此外,一些具有复杂结构及异形结构的组织模型的精细程度不足,其真实解剖特点难以体现。

在今后的研究中,需要从以下几个方面进行改进:一是要加强对光热参数标准性的研究。虽然历年来无数的学者对组织光热参数进行了大量的研究及总结性工作^[144-145],但是却没有形成一个完整的系统标准可供读者参考,而且保密等因素导致很多参数不够可靠,此外还存在国内外参数不一致^[146-147]以及间接引用不准确^[14,148]等问题,因此今后的研究中需要加强对于现有数据的甄别、统计及总结,进而建立一套具备准确性、权威性及系统性的光学参数标准体系。二是要加强多物理场耦合性研究,激光-组织的相互作用是热交互、光化学反应、光烧蚀、光激发、等离子体诱导消融及光中断等多种物理现象的耦合过程^[149],因此必须要考虑它们的耦合作用所带来的影响。今后需要进一步研究各种物理现象对组织光分布的贡献,从宏观动态系统的角度探索可以更加准确解释生物组织等浑浊介质内光传输的优化模型。三是新兴技术应用性研究,例如3D生物打印技术^[150-151]、一体化仿真技术^[152]、机器学习、深度学习^[153]及人工智能等,还可利用成像技术以及Mimics等软件工具,基于更加真实的组织结构建立更加精细化的模型,以提高光学模型的微观性、系统性,这都将会极大地提高研究者在建模仿真、实验研究以及数据分析方面的能力和速度,提高研究的准确性及效率。
