透明介质材料的超快激光微纳加工研究进展
下载： 2806次特邀综述
Significance Transparent dielectrics generally refer to materials with a transmittance of more than 80% in the visible light range, such as glass, gemstones, diamonds, some organic polymers, and various crystals. They have been extensively used in aerospace, electronic elements, flexible photonic devices, and other advanced fields because of their high transmittance and corrosion resistance. However, processing transparent dielectrics with traditional methods like mechanical physical means in the micro-nano scale is rather difficult because they can easily cause breakage and cracks.
With ultrahigh intensity and ultrashort pulse duration, an ultrafast laser (pulse duration <10 ps) can break the diffraction limit due to its wide material adaptability and extreme precision and can minimize the heat-affected zone, providing an advanced approach for micro-nano fabrication. Hence, an ultrafast laser has become the most appropriate tool for the micro-nano fabrication of transparent dielectrics. The corresponding phenomena and physical mechanisms in the ultrafast laser fabrication of transparent materials must be investigated to optimize the micro-nano scale processing of transparent dielectrics and utilize it in more application fields.
Progress The structural changes induced by the ultrafast laser in the irradiation area can be divided into three types according to the different pulse energy levels focused inside the transparent dielectrics: 1) low pulse energy can induce the formation of areas where the refractive index change occurs inside the dielectrics, 2) under moderate pulse energy, a nanograting structure can be induced, and 3) high pulse energy induces a nanovoid structure at the irradiation point.
If the energy of the laser incident into transparent dielectrics slightly exceeds the modification threshold, the structural change in the irradiation area will be induced, which causes the refractive index to change from the initial n0 to n1(
If the energy of the pulse incident into transparent dielectrics exceeds the material's modification threshold, but is less than the optical breakdown threshold, the formation of a nanograting structure will be induced, which consists of multiple layers of materials with different refractive indexes and thus it results in the birefringent change of the irradiation area. The mechanism behind this phenomenon can be explained in three ways: some studies believe that the interference between the incident laser and induced plasma accounts for the nanograting formation, some studies attribute the structural change to the asymmetric growth of the nanoplasma, and the other studies think excitons and defect assistance play a more pivotal part in the nanograting's evolution.
When the peak intensity of the incident laser is higher than 10 14 W·cm -2, the high energy density and the electromagnetic field will cause an optical breakdown of transparent dielectrics. The optical properties of the irradiated area will also be greatly changed. Meanwhile, extremely high temperature and pressure will be engendered in the center of the irradiation area. A strong expansion shock wave propagating outward and a sparse wave propagating inside the focal point will be generated under such extreme conditions. The shock wave compresses the material around the absorption volume, and the sparse wave creates a void structure in the center of the focal volume.
Numerous applications of transparent dielectrics have been implemented based on these three structural changes induced by an ultrafast laser. For instance, optical waveguides can be directly written in materials with a refractive index increase or decrease. Diffractive optical elements can be fabricated by laser regulating dielectric birefringence or chemical etching after irradiation. Micro-holes and micro-channels can be produced by direct ablation, laser-induced backside wet etching, and laser-assisted chemical etching. Information and data storage can be achieved by the unique feature difference between processed and unprocessed areas like refractive index and structural color. A micro-nano-connection can be realized by local melting and resolidification at the interface of two dielectrics under a suitable energy ultrafast pulse irradiation.
Conclusion and Prospect Interm of the incident laser energy, three types of structural changes are induced by ultrafast lasers in transparent materials: refractive index changes, nanogratings, and nanovoids. The micro-nano device preparation method developed based on the ultrafast laser-induced structural changes has shown advantages and potentials in the application of the micro-nano fabrication of transparent dielectrics. Research on the ultrafast laser micro-nano processing of transparent dielectrics can not only help understand the interaction between dielectric materials and lasers, but also provide various applications in the micro-nano field based on the phenomena such as ultrafast laser-induced refractive index changes and nanograting structures. With the continuous development of the ultrafast laser technology and an in-depth understanding of the ultrafast laser micro-nano fabrication process, research on the ultrafast laser micro-nano processing of transparent materials will make a new progress in aerospace, biomedicine, energy engineering, and other fields.
1 引言
透明介质材料一般指可见光波段透光率在80%以上的材料,如玻璃、宝石、金刚石、部分有机聚合物与各种晶体,其具有高透光性、高机械强度、高耐热性与良好的耐腐蚀能力,在航空航天[1]、微电子器件[2]和柔性光子器件[3]等领域具有广泛的应用。传统手段如机械加工方式容易造成透明介质材料的破碎与崩裂,其精度也难以完全满足微纳尺度的要求。激光作为一种材料适应性广的非接触式加工工具,在透明介质材料的微纳加工方面优势明显。超快激光(脉冲持续时间小于10 ps)相比于纳秒激光与连续激光,具有更高的加工精度,已成为微纳制造的重要工具之一。超快激光具有超强特性,表现出极高的峰值强度,可突破衍射极限[4],为微纳米材料加工开辟了新的途径。利用双光子聚合技术可加工出分辨率在120nm左右的三维纳米牛[5]。超快激光具有超快特性,脉冲宽度短于绝大多数物理化学过程的特征时间,能以非热加工的形式完成材料的修饰或去除[6],在电子将能量传递给晶格建立热平衡之前,激光能量吸收已经结束,极高的峰值功率密度使能量局限在激光作用区域周边小范围内,可极小化热影响区。利用高重复频率的飞秒激光可在牙齿基质与脑组织等结构中进行定点烧蚀,不影响周围区域[7]。随着激光技术的发展,超快激光近十几年来被广泛应用于微电子器件[8]、数据存储与传感器[9]、生物医学工程[10-11]和新能源[12-13]等领域。
本文将从超快激光与透明介质材料的相互作用过程出发,综述超快激光在透明介质材料内部诱导产生的内部结构变化与相关机理,以及透明介质材料超快激光微纳加工在波导和微通道等领域的应用,如

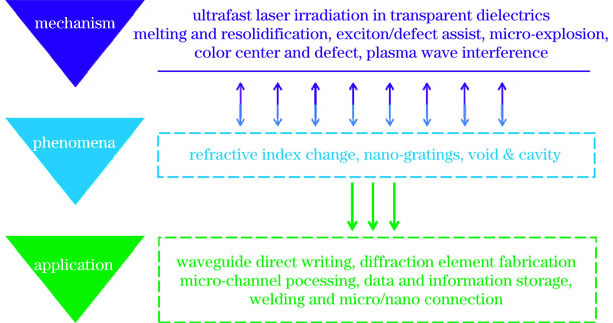

图 1. 超快激光加工透明介质的机理、现象与应用
Fig. 1. Mechanisms, phenomena and applications of ultrafast laser processing of transparent dielectrics
2 超快激光诱导透明介质材料的内部结构变化
2.1 超快激光与透明介质材料的相互作用过程

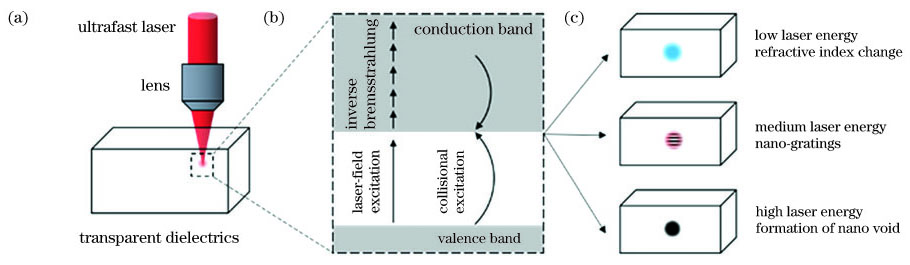

图 2. 超快激光与透明介质材料作用过程。(a)超快激光辐照透明介质内部的示意图;(b)透明介质材料中的电子电离过程;(c)不同通量的超快激光在透明介质中引起结构变化
Fig. 2. Interaction between ultrafast laser and transparent dielectrics. (a) Diagram of ultrafast laser irradiation inside transparent dielectrics; (b) electron ionization process in transparent dielectrics; (c) structural changes in transparent dielectrics induced by ultra-fast laser with different fluxes
2.2 超快激光诱导透明介质材料的内部结构变化
根据聚焦到透明介质材料内部的能量等级,将超快激光在透明介质材料内部诱导产生的结构变化分为三种:低脉冲能量可在介质内部诱导形成折射率变化区域[16],适中的脉冲能量可在透明介质内部诱导产生纳米光栅结构[17],高脉冲能量则会在透明介质材料内部诱导产生纳米孔洞结构[18]。
2.2.1 折射率变化
图 3. 超快激光诱导透明介质材料的三种结构变化。 (a)超快激光诱导折射率变化示意图;(b)超快激光在玻璃中诱导折射率变化直写波导结构[19];(c)超快激光诱导纳米光栅结构示意图;(d)纳米光栅结构的背散射电子图像[20];(e)超快激光诱导纳米孔洞结构示意图;(f)蓝宝石中纳米孔洞的横截面电镜图[21]
Fig. 3. Three structural changes in transparent dielectrics induced by ultrafast laser. (a) Schematic of refractive index change induced by ultrafast laser; (b) waveguide structure directly written via ultrafast laser induced refractive index change[19]; (c) diagram of nanograting structures induced by ultrafast laser; (d) back-scattered electron images of nanograting structures[20]; (e) diagram of nanovo
大部分透明介质材料经低能量超快激光辐照后,材料内部产生的折射率变化为正值。例如使用820nm波长、60fs脉宽和1kHz重复频率的飞秒激光辐照石英玻璃与掺硼玻璃,石英玻璃被辐照区域的折射率增加了3×10-3,掺硼玻璃的折射率增加值可达5×1
少数介质的折射率在超快激光作用后表现出负变化或是非均匀变化的特性。例如,在磷酸盐玻璃中使用800nm波长和150fs脉宽的飞秒激光辐照加工,激光辐照区域出现了折射率减小的情况[24]。
利用飞秒激光辐照数种多组分玻璃,被辐照区域的折射率变化可正可负,也存在着不均匀变化的情况,表现出对成分的强依赖性[25] ,如
表 1. 不同透明材料中超快激光诱导的折射率变化情况
Table 1. Refractive index changes induced by ultrafast laser in different transparent dielectrics
|
2.2.2 纳米光栅结构
如
2.2.3 纳米孔洞结构
如
3 超快激光诱导透明介质材料结构变化的分析
3.1 折射率变化
图 4. 超快激光诱导透明介质材料结构变化相关机制。(a)激光辐照玻璃引起SiO2结构变化;(b)纳米光栅结构的简单模型;(c)双等离子体激元衰减模型[39];(d)自陷激子与半永久点缺陷形成过程[40]
Fig. 4. Mechanism of ultrafast laser induced structural changes in transparent dielectrics. (a) Structural change of SiO2 induced by laser irradiation; (b) simple model of nanograting structure; (c) dual plasmon decay model[39]; (d) self-trapping exciton and semi-permanent point defect formation process[40]
3.1.1 热致熔化与重凝
利用25MHz重复频率的飞秒激光对玻璃进行辐照处理,通过调节同一点上累积的脉冲个数,可在纳焦量级上实现对沉积能量的控制,进而影响改性区域的范围。分析认为,激光非线性能量吸收引起的热积累导致局部熔化,局部熔化在玻璃折射率变化过程中起到了主要作用,即激光焦点作为一个可移动的极小热源,在材料内部引起的局部熔化与重新凝固导致辐照区域折射率发生改变[41]。使用有限差分热模拟方法,验证了200kHz重复频率以上的飞秒激光在加工铝硅酸盐玻璃时出现的热量积累效应,发现热积累量和激光净通量之间存在函数关系[42]。在250kHz重复频率的飞秒激光辐照玻璃的实验中,通过分析热积累的温度分布与热改性的特征温度,发现激光辐照区域存在热量积累与扩散,且温度分布规律与应力分布规律基本一致[43]。
3.1.2 色心诱导
色心指的是晶体中能对可见光产生选择性吸收的缺陷部位。利用850nm波长的飞秒激光辐照玻璃,在低于烧蚀阈值的激光通量下辐照区域有色心的产生[44]。通过飞秒激光辐照磷酸玻璃,在共聚焦显微镜发光光谱结果中也观察到了激光辐照中心区域有色心形成,且该部分区域折射率相比于初始值有轻微降低[22]。使用低能量的振荡级激光与高能量的放大级激光辐照玻璃,前者引起的温度变化可以忽略,后者有1000℃以上的改变,二者的折射率
变化却基本一致,该结果并不支持热积累效应,同时还发现介质折射率的变化与色心浓度的变化具有相同趋势[45]。利用磷酸玻璃上的布拉格光栅作为诊断工具,观测光漂白与热退火过程中微小的折射率变化,发现超快激光辐照区域中的色心在介质折射率的变化以及波导结构直写过程中起到了作用[46]。
3.2 纳米光栅结构
3.2.1 入射光场与等离子体波电场的干涉
入射激光与透明介质材料作用时,通过非线性电离过程产生大量自由电子,极高的自由电子密度使激光辐照区域出现等离子体态,等离子体对激光能量的吸收主要是通过逆韧致辐射进行的,并引发了纵向的等离子体波。等离子体波的电场在入射光偏振平面上与光场发生耦合干涉,导致等离子体密度发生周期性调制,并最终在材料中形成与偏振相关的周期性结构变化[20]。基于上述单等离子体激发的双等离子体激元衰减模型如
3.2.2 纳米等离子体的非对称生长
当超快激光辐照透明介质材料内部时,介质内部本身存在的缺陷或色心可作为多光子电离的电离热点。受到后续数个激光脉冲的作用,这些电离热点通过某种反馈机制逐渐演化成球形的纳米等离子体。在增强的边界电场作用下,纳米等离子体会发生非对称生长(偏向垂直于激光偏振方向),从纳米球变成纳米椭球体,逐渐形成盘状等离子体,在增强的等离子体边缘场作用下,盘状等离子体逐步合并为纳米面。随着激光能量的继续输入,等离子体的电子密度增加至临界电子密度,这些纳米面呈现出金属化特征,与入射光产生干涉并影响入射光传播,最后以一定的周期排布在聚焦区域内,形成纳米光栅结构[50]。
3.2.3 激子与缺陷辅助纳米结构形成
在纳米等离子体非对称生长模型中,纳米光栅的形成需要多个脉冲协同作用,但在多脉冲激光的脉冲间隔时间长于等离子体寿命时,也观察到了纳米光栅结构的生成。
3.3 纳米孔洞结构
使用高能量激光紧聚焦辐照透明介质表层边界15μm以下区域,结合实验观测与理论模型,可对超快激光辐照透明介质材料产生微爆炸并生成纳米尺度孔洞结构的过程作出解释。当超快激光被紧聚焦于透明材料内部约0.3μm3的空间时(与表层距离大于15μm,远大于入射激光波长),会产生高功率密度的光场,通过多光子电离以及雪崩电离过程,此部分透明介质出现光学击穿现象,其光学性质发生巨大变化。随后在1/6μm3的吸收体积内产生了强烈的激光能量吸收,能量密度达到5.6×106J/cm3,压力超出材料所能承受的强度值三个数量级,引起向外传播的强烈膨胀冲击波与向焦点内部传播的稀疏波。冲击波会压缩吸收体积周围的物质,波前后方被压缩的材料在巨大压强作用下急剧转变为另一种相,在压强被释放后,受冲击波影响的区域迅速转变为常压下的最终相。在向焦点内部传播的稀疏波的作用下,焦点体积中心则会产生孔洞结构,使用高分辨电子显微镜观察到该孔洞的尺寸约为500nm。基于两相流体动力学方程与状态方程,可对孔洞的体积以及激光影响区域的尺寸大小进行模拟与预测,预测结果与实验结果基本一致[51]。
4 透明介质材料的超快激光微纳加工应用
使用超快激光对透明介质材料进行辐照处理,通过熔化重凝、微爆炸和缺陷形成等过程,可产生以折射率变化、纳米光栅结构和纳米孔洞这三种现象为代表的结构变化。以此为基础,利用超快激光在透明介质材料中能直写制备出多种器件与结构,并应用于光波导[52]、衍射光学元件[53]、微孔[54]与微通道[55]等领域。
4.1 光波导器件直写
光波导与其相关器件的直写是透明介质材料超快激光微纳加工的应用领域之一。光波导的加工通常采用物镜聚焦激光在介质材料内部进行移动直写,包括纵向直写与横向直写两种形式。前者具有规则的圆形加工区域,但受到物镜工作距离的限制,能够加工的波导结构长度有限;后者则可进行任意长度的波导结构制备,加工的最高深度取决于所采用的物镜的工作距离,但在横向直写时,需要通过引入狭缝等光场整形手段,才能实现圆形波导结构的加工。
使用800nm波长、120fs脉宽的超快激光结合空间光整形技术,可在玻璃内部实现三维空间分裂光波导结构的制备[52]。为解决直写过程中两个聚焦光斑距离太近导致的干涉现象,通过在空间光调制器上加载特殊相位,将直写前后聚焦光斑的距离进行解耦,使光斑间的距离增大以避免干涉发生,最终得到1×4的分裂光波导结构,该结构的分光比经测试为28∶23∶25 ∶24,只有约16%的激光能量由于分光过程出现了损失[56]。如
图 5. 超快激光直写的波导器件。 (a)飞秒激光脉冲直写的埋入式波导结构[57];(b)飞秒激光加工的凹层波导结构[58]
Fig. 5. Waveguide devices directly written by ultrafast laser. (a) Embedded waveguide structure directly written by femtosecond laser pulse [57]; (b) depressed cladding waveguide structure processed by femtosecond laser[58]
4.2 衍射光学元件加工
衍射光学元件主要用于光束整形与分束的研究。利用聚焦超快激光在透明介质材料中直写产生的折射率变化、双折射率变化以及纳米孔洞等现象,可制备衍射光栅、衍射透镜和全息图像等衍射光学元件。例如使用300fs脉宽的飞秒激光在铌酸锂晶体中直写制备体积布拉格光栅,其衍射效率随着光栅厚度的增加可达87%,并在150 ℃的温度下热退火1h仍然保持不变[59]。
飞秒激光辐照结合化学刻蚀在熔融石英上制备的微透镜如
图 6. 超快激光制备的衍射光学元件。(a)飞秒激光脉冲序列辐照熔融石英制备微透镜[60];(b)飞秒激光加工的几何相位棱镜与几何相位透镜[62]
Fig. 6. Diffraction optical elements prepared by ultrafast laser. (a) Microlens prepared by femtosecond laser pulse train irradiating of fused silica substrate[60]; (b) geometric phase prisms and lens prepared by femtosecond laser[62]
4.3 微孔与微通道制备
超快激光在透明介质材料中加工的微通道与微孔已应用于微流体器件、芯片实验室和电子封装等领域,可用作样本分析、物质检测和反应合成等。目前,超快激光加工透明介质材料微孔与微通道的方法主要有激光直接烧蚀、激光背向湿法刻蚀与激光辅助化学湿法刻蚀三种,如

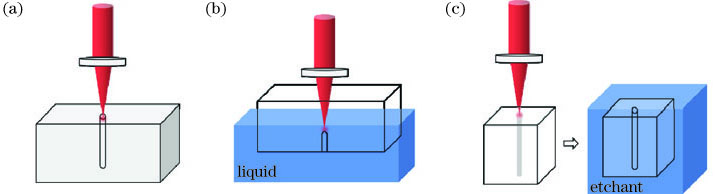

图 7. 超快激光微孔微通道制备方法。 (a)激光直接烧蚀;(b)激光诱导背向湿法刻蚀;(c)激光辅助的化学湿法刻蚀
Fig. 7. Method for preparing micro-hole and microchannel with ultrafast laser. (a) Direct laser ablation; (b) laser induced backside wet etching; (c) laser assisted chemical wet etching
超快激光加工的微孔与微通道如
图 8. 超快激光加工的微孔与微通道。 (a)类贝塞尔光束微通道加工结果(长度标尺为100μm,直径标尺为2μm) [55]; (b)时域艾里分布光束与时域展宽光束微孔加工结果[63]; (c)补偿球差效应前后使用飞秒激光加工的环形微通道结构[64]; (d)钇铝石榴石晶体经飞秒激光辅助化学刻蚀得到的微孔阵列结构[65]
Fig. 8. Micro-holes and microchannels processed by ultrafast laser. (a) Micro-channel processing results by Bessel-like beam(length scale bar is 100μm, and diameter scale bar is 2μm)[55]; (b) micro-hole processing results by temporal Airy beam and temporally broadened beam[63]; (c) annular micro-channel structures processed by femtosecond laser before and after compensation of spherical aberration effect<
利用飞秒激光双脉冲加工PMMA材料,得到的微孔结构如

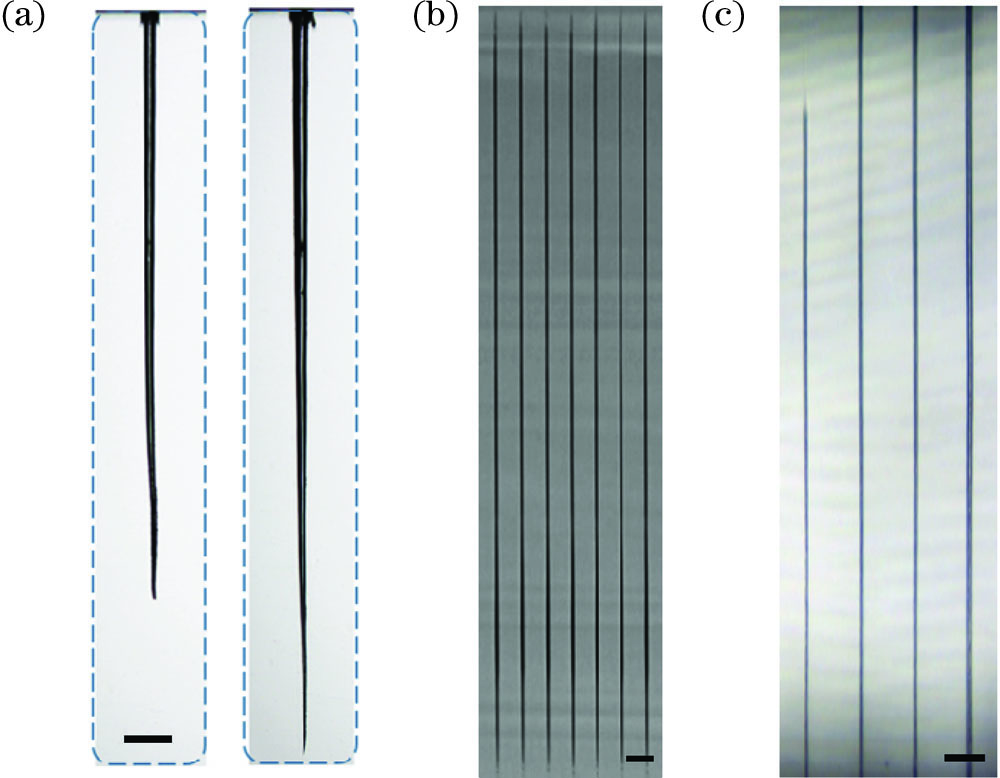

图 9. 本课题组使用超快激光加工的微孔与微通道。(a)双脉冲飞秒激光增加微孔烧蚀深度(标尺为100μm);(b)贝塞尔单脉冲加工的微通道,图中标尺为10μm;(c)硼硅玻璃中激光诱导背向湿法刻蚀得到的微通道,图中标尺为40μm
Fig. 9. Micro-holes and microchannels processed by ultrafast laser in our research group. (a) Enhancement of ablation depth by femtosecond laser double pulses (scale bar is 100μm); (b) micro-channel processed by single Bessel pulse (scale bar is 10μm); (c) micro-channel processed by laser induced backside wet etching in borosilica glass (scale bar is 40μm)
文献[66-78]报道的微通道直径和长度分布如
4.4 数据与信息存储
超快激光在透明介质材料中诱导的结构与性质变化可与未加工区域形成“0”与“1”的二值对比,按照需求将“0”与“1”的结构阵列集成在透明介质中并应用于数据与信息存储领域。
利用基于透明介质的超快激光微纳加工方法,可开发一种由三维的空间维度与二维的光学维度所组成的永久五维信息存储方法。以飞秒激光与玻璃作用后形成的纳米光栅结构为基础,除去三维空间维度外,将慢轴方向作为第四个维度,迟滞强度(双折射率和结构长度的乘积)作为第五个维度,通过控制激光强度和偏振对这两个额外维度进行调控,可实现图案化加工与信息存储功能[80]。利用飞秒激光原位诱导结晶技术,含有Cs,Pb和Br等元素的基体玻璃经激光辐照后,在辐照区域生成CsPbBr3钙钛矿量子点,该量子点具有较低的形成能,会很快解离,经过后续的低温退火,可以重新生成并保持稳定,利用二次激光辐照与退火过程可实现此种量子点的擦除与复写,起到数据信息存储与保密的作用[81]。通过飞秒激光辐照掺银氟磷酸盐玻璃,在辐照区域可生成银纳米团簇与银纳米粒子。基于此现象可以实现具有强烈荧光对比度的3D微米级图案化结构直写,且这些结构可以通过后续激光的重叠辐照等过程实现擦除与重写,在3D高密度光学数据存储方面具有一定的应用潜力[82]。
4.5 微纳连接与焊接
当超快激光辐照透明介质材料时,通过受激的非线性过程与多光子吸收过程,辐照区域会出现强烈的能量吸收。基于这一性质,在需要连接的界面处,通过聚焦超快激光可实现同种或异种材料的连接。实验获取了不同脉冲重复频率和不同脉冲能量下玻璃吸收超快激光能量后的强度、非线性吸收率和温度分布情况,将该结果应用于片状玻璃材料的微焊接,可得到基本没有裂纹的连接结果[83]。通过热处理调节陶瓷透光性,得到晶粒尺寸在100nm左右的透明陶瓷,该陶瓷对超快激光具有低散射强吸收的特点,因此超快激光能深入聚焦到材料内部而不会被表面散射,相比于传统陶瓷连接需要在全局高温环境下进行,该方法可在室温下完成对陶瓷电子封装结构的超快激光焊接,所得结果的抗剪切强度与传统扩散连接相近[84]。
5 结束语
综述了超快激光在透明介质材料内部诱导产生的内部结构变化与相关机理,介绍了透明介质材料超快激光微纳加工在波导、衍射光学元件和微孔微通道等领域的应用。根据激光辐照能量的高低,超快激光诱导透明介质材料内部产生的结构变化分为折射率变化(低)、纳米光栅(中)与纳米孔洞结构(高)。基于超快激光诱导结构变化的微纳器件制备方法在透明介质材料的微纳加工应用领域已展现出优势。透明介质材料的超快激光微纳加工研究有助于人们理解介质材料与激光的相互作用过程,有利于基于超快激光诱导折射率变化和纳米光栅结构等现象的微纳加工应用领域的拓展,拥有广阔与光明的前景。随着超快激光技术的不断发展以及对超快激光微纳加工过程的深入理解,透明介质材料的超快激光微纳加工研究会取得新的进展,在航空航天、生物医学和能源工程等领域发挥更大的作用。
