Photonics Research, 2023, 11 (9): 1517, Published Online: Aug. 28, 2023
Improvement on the topological localized interface enabled by chiral symmetry
Figures & Tables

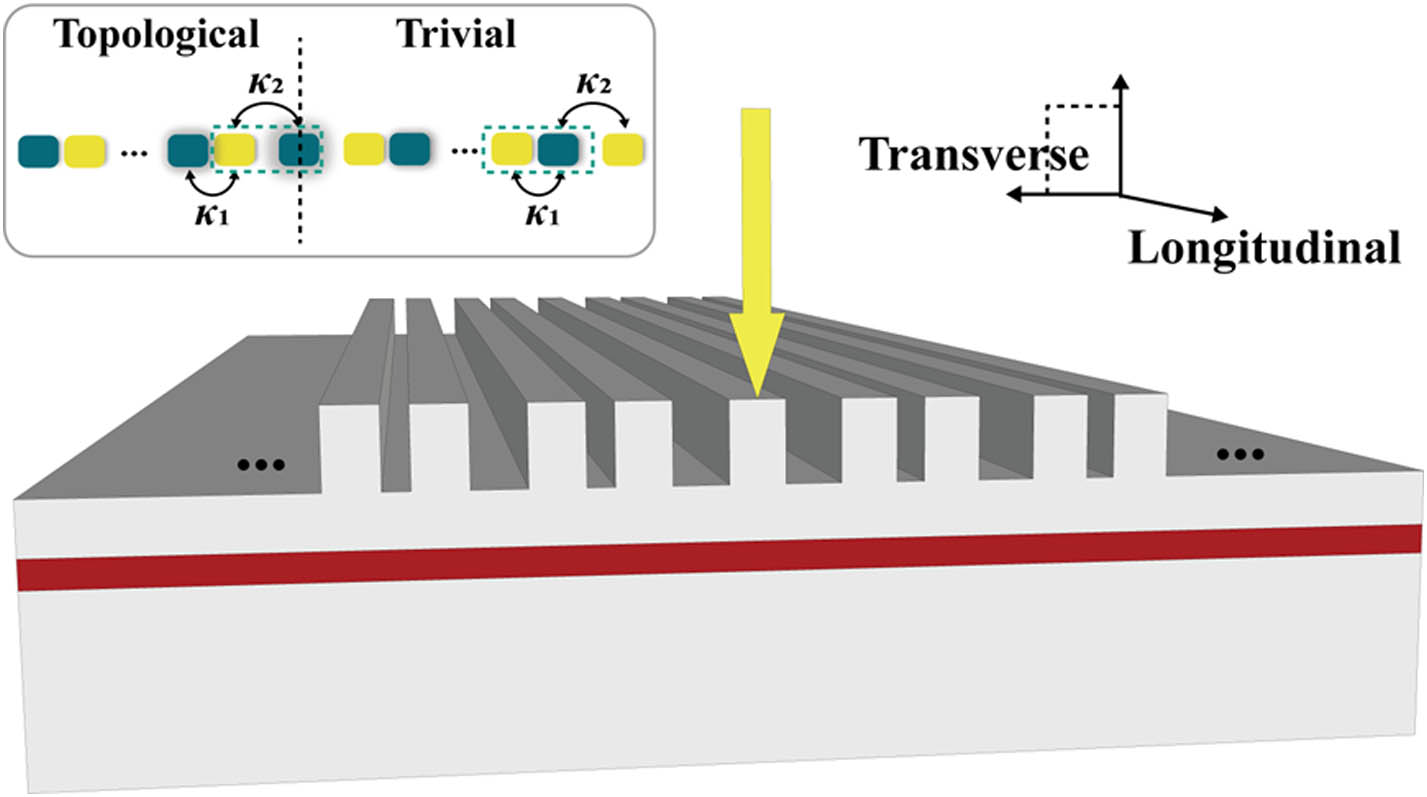

Fig. 1. Schematic of the topological semiconductor laser array based on the traditional SSH model with a single defect. The yellow arrow denotes current injection on the single-defect waveguide, and the red part is the active region. The inset presents a sketch of the traditional 1D SSH dimer chain, where the green dashed squares indicate primitive cells in two distinct topological phases. In the topological chain, inter-cell coupling is stronger than intra-cell coupling, while intra-cell coupling is stronger in the trivial chain. A zero-energy topological state emerges at the interface indicated by the black dashed line.

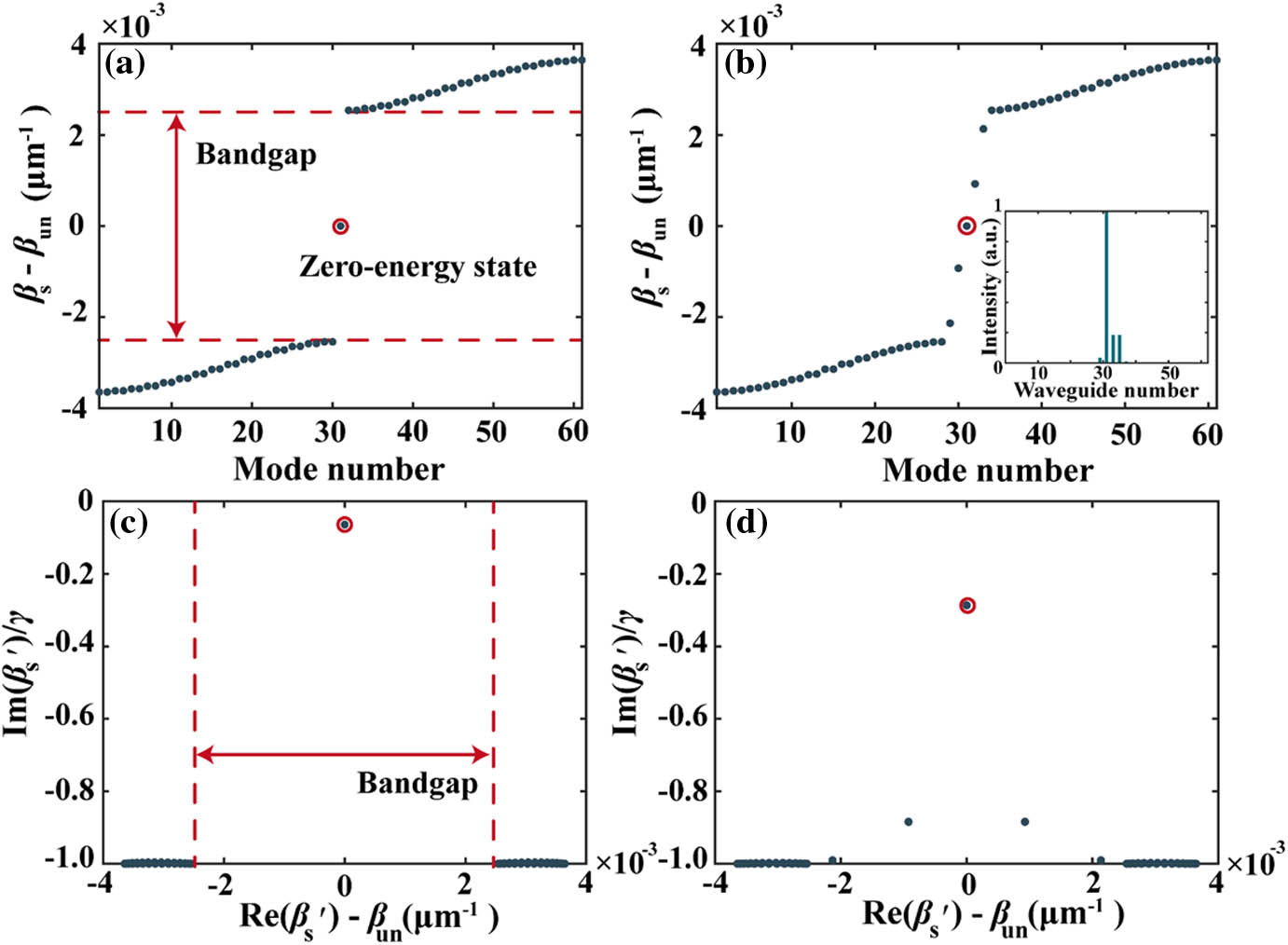

Fig. 2. Mode dispersions in the (a) topological laser array and (b) perturbed topological laser array based on the traditional SSH model. The inset in (b) presents the intensity distribution of the zero-energy topological state in the perturbed topological laser array (circled in red). Complex mode dispersions in the (c) topological laser array and (d) perturbed topological laser array based on the traditional SSH model, with a loss term γ

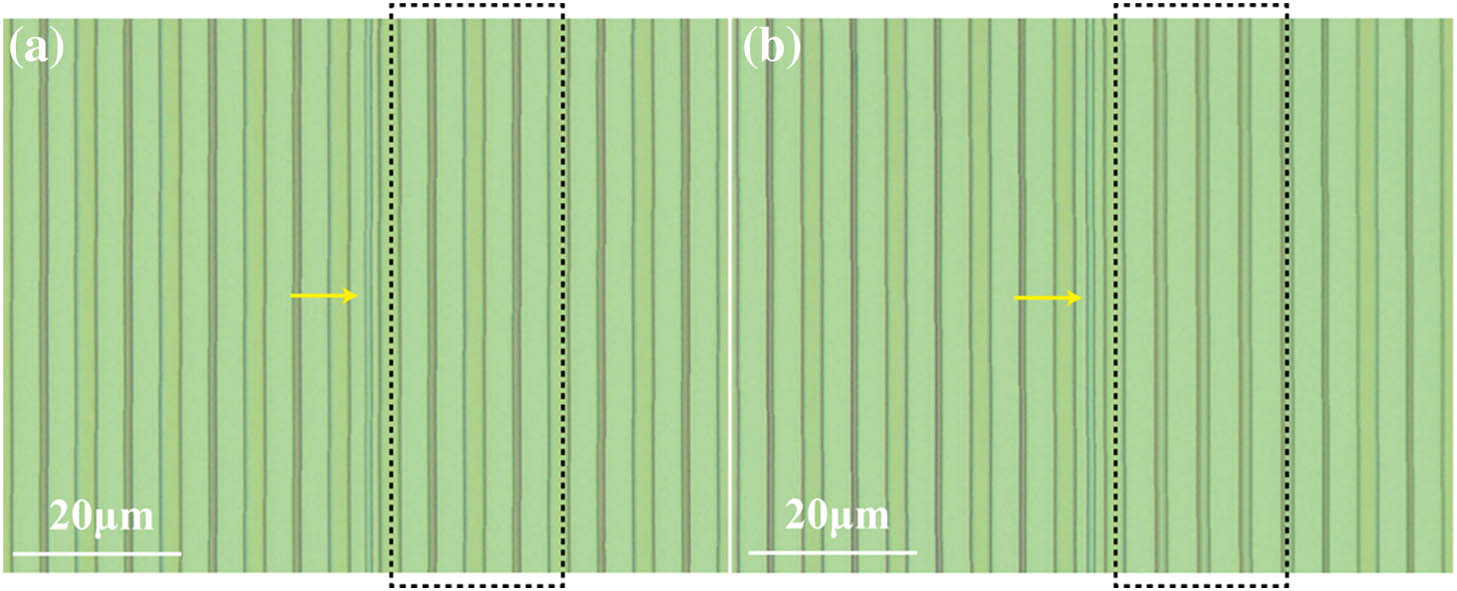

Fig. 3. Microscope images of parts of fabricated laser arrays from top view. (a) Top-view image of the topological laser array. (b) Top-view image of the perturbed topological laser array; dashed square denotes the introduced perturbations. Only the neighboring distances between the encircled four waveguides are changed. The injection windows are introduced at the central ridge waveguides (denoted by yellow arrows).

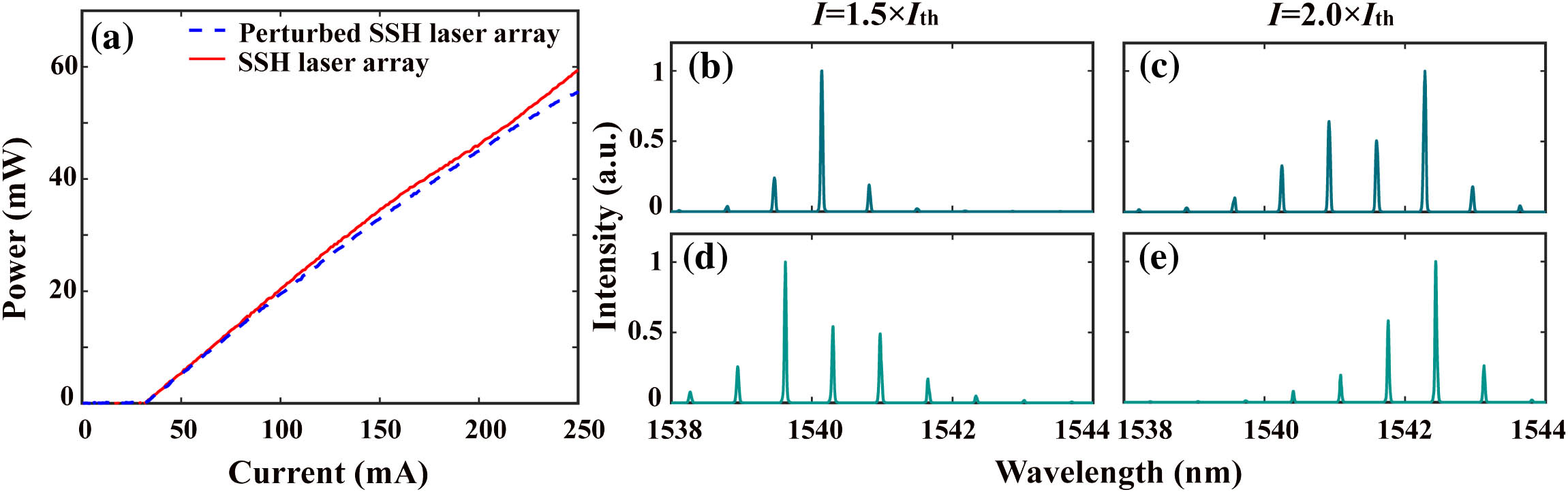

Fig. 4. LI curves and spectra of the fabricated topological laser array and perturbed topological laser array. Thresholds (T th

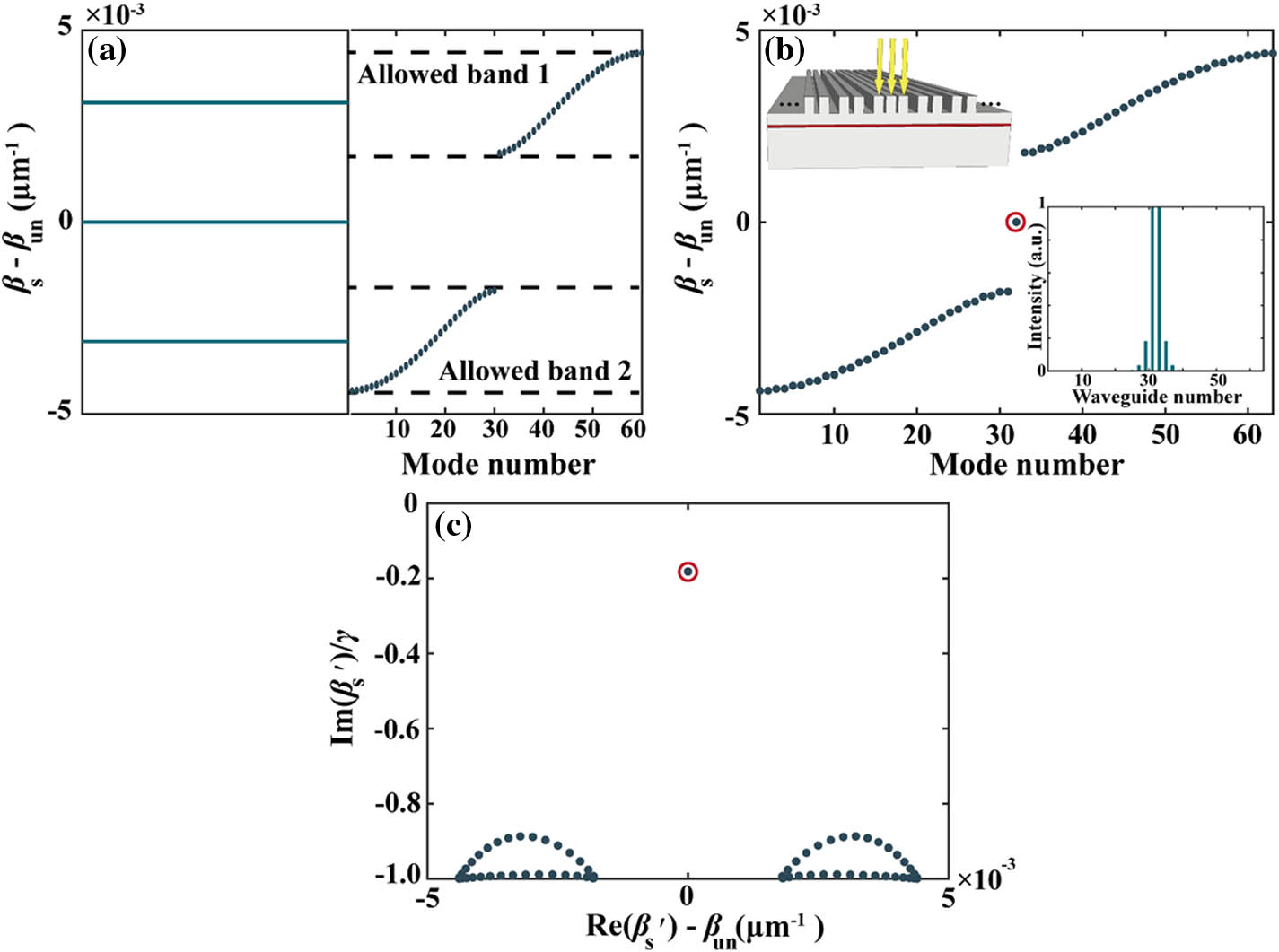

Fig. 5. (a) Mode dispersions of three-defect waveguides (left) and side arrays (right). (b) Mode dispersion of the proposed three-defect laser array that holds the zero-energy state with enlarged mode volume. The intensity distribution of the zero-energy topological state with enlarged mode volume (circled in red) is shown in the inset in the right corner. A schematic of the proposed laser array is plotted in the left corner, where the yellow arrows denote current injections introduced to three-defect waveguides. (c) Complex mode dispersion of the three-defect laser array with a loss term γ

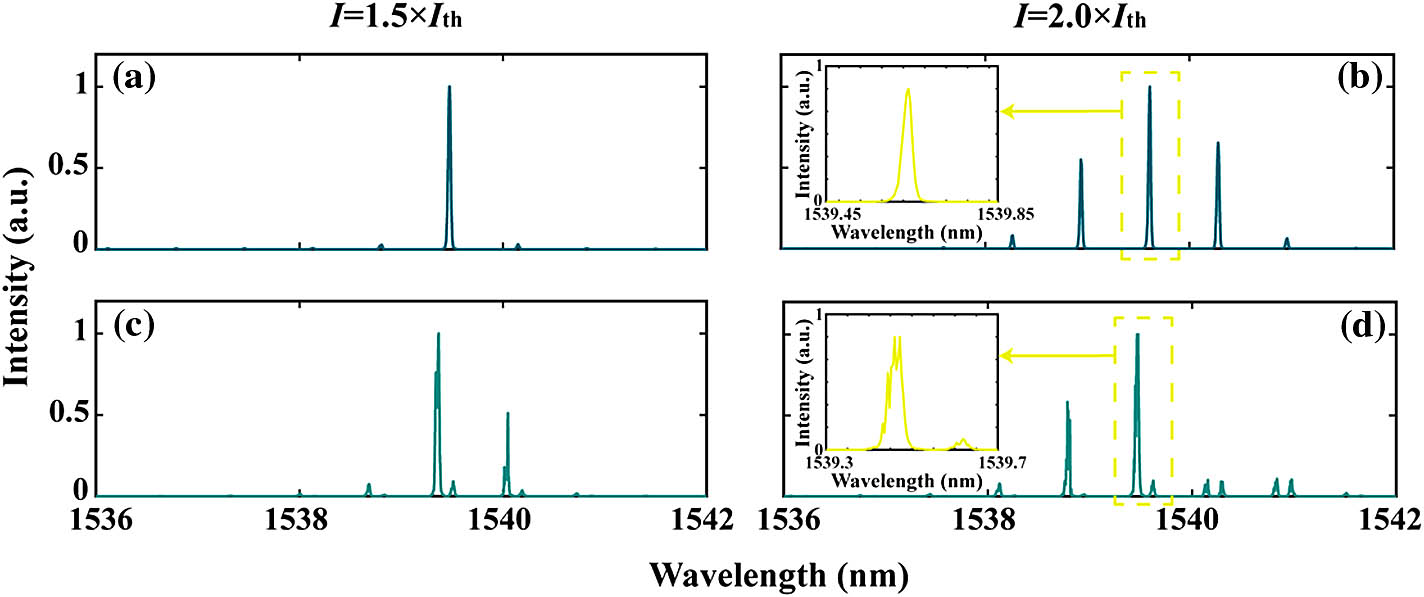

Fig. 6. (a), (b) Spectra of the proposed three-defect topological laser array. (c), (d) Spectra of the normal laser array. (a), (c) Measured at 75 mA, which is equal to 1.5 × I th 2.0 × I th
Jingxuan Chen, Mingjin Wang, Ting Fu, Yufei Wang, Xueyou Wang, Yingqiu Dai, Ziyuan Liao, Haiyang Ji, Wanhua Zheng. Improvement on the topological localized interface enabled by chiral symmetry[J]. Photonics Research, 2023, 11(9): 1517.
