Multidimensional optical tweezers synthetized by rigid-body emulated structured light

Liuhao Zhu; Yuping Tai; Hehe Li; Huajie Hu; Xinzhong Li; Yangjian Cai; Yijie Shen

doi:doi:10.1364/PRJ.490103

Photonics Research, 2023, 11 (9): 1524, Published Online: Aug. 28, 2023

Multidimensional optical tweezers synthetized by rigid-body emulated structured light

论文大纲

Liuhao Zhu ¹Yuping Tai ^1,2Hehe Li ¹Huajie Hu ¹Xinzhong Li ^1,2,7,*Yangjian Cai ^3,4,8,*Yijie Shen ^5,6,9,*

Author Affiliations

¹ School of Physics and Engineering, Henan University of Science and Technologyhttps://ror.org/05d80kz58, Luoyang 471023, China

² State Key Laboratory of Transient Optics and Photonics, Xi’an Institute of Optics and Precision Mechanics, Chinese Academy of Sciences, Xi’an 710119, China

³ Shandong Provincial Engineering and Technical Center of Light Manipulations and Shandong Provincial Key Laboratory of Optics and Photonic Device, School of Physics and Electronics, Shandong Normal University, Jinan 250014, China

⁴ Joint Research Center of Light Manipulation Science and Photonic Integrated Chip of East China Normal University and Shandong Normal University, East China Normal University, Shanghai 200241, China

⁵ Optoelectronics Research Centre, University of Southampton, Southampton SO17 1BJ, UK

⁶ Centre for Disruptive Photonic Technologies, School of Physical and Mathematical Sciences and The Photonics Institute, Nanyang Technological University, Singapore 637378, Singapore

⁷ e-mail: xzli@haust.edu.cn

⁸ e-mail: yangjian_cai@163.com

⁹ e-mail: yijie.shen@ntu.edu.sg

Abstract

Structured light with more extended degrees of freedom (DoFs) and in higher dimensions is increasingly gaining traction and leading to breakthroughs such as super-resolution imaging, larger-capacity communication, and ultraprecise optical trapping or tweezers. More DoFs for manipulating an object can access more maneuvers and radically increase maneuvering precision, which is of significance in biology and related microscopic detection. However, manipulating particles beyond three-dimensional (3D) spatial manipulation by using current all-optical tweezers technology remains difficult. To overcome this limitation, we theoretically and experimentally present six-dimensional (6D) structured optical tweezers based on tailoring structured light emulating rigid-body mechanics. Our method facilitates the evaluation of the methodology of rigid-body mechanics to synthesize six independent DoFs in a structured optical trapping system, akin to six-axis rigid-body manipulation, including surge, sway, heave, roll, pitch, and yaw. In contrast to previous 3D optical tweezers, our 6D structured optical tweezers significantly improved the flexibility of the path design of complex trajectories, thereby laying the foundation for next-generation functional optical manipulation, assembly, and micromechanics.

1. INTRODUCTION

The manipulation of structured light with more extended degrees of freedom (DoFs) and in higher dimensions has recently attracted increasing attention owing to its advanced applications [1,2], which are significant among optical trapping or tweezer technologies with functional structures and increased precision [3,4]. The original optical tweezers can trap particles only at the intersection of six laser beams; the particles are held in a magnetic field by extrusion produced by opposite beams [5]. Since Ashkin discovered that particles can be trapped by gradient forces of light using only one laser beam [6], optical tweezers have been applied in biosciences [7], nanotechnology [8 –14], and force measurement [15] as non-contact and noninvasive tools. Usually, conventional single-beam optical tweezers trap particles by using a Gaussian beam. The movement of the trapped particles was performed by moving the sample stage [16] or changing the position of the light spot [17], which endows the optical tweezers with two DoFs (2D manipulation).

In the recent decade, two main techniques have been introduced in optical tweezers to significantly improve the flexibility of manipulation in higher dimensions, that is, digital holography and structured light. Digital holography refers to the acquisition and processing of holograms by a digital sensor array. Holographic optical tweezers were proposed by refreshing phase masks to change the focus position and provide dynamic and digital manipulation modes. These optical tweezers provide flexible manipulation with three DoFs. However, holographic optical tweezers use algorithms to move the optical trap so that its positioning in space depends on spatial parametric equations and the rotation matrix, and it is difficult to freely operate in 3D space because of the limitation of the parametric equation [18]. Holographic optical tweezers rely on the apertures of the mask and elements, which limits the precision of their manipulation [19,20]. Note that the tomographic mold for optical trapping (TOMOTRAP) is a distinguished method that controls the particle’s attitude by analyzing the 3D refractive index of the sample and calculating the corresponding control light field [21]. However, this method is time consuming to determine the sample’s 3D refractive index distribution. Moreover, the trapping capability of this method is constrained by the size of the particles being captured (particle diameters, 2–8 μm).

Owing to the recent emergence of digitally controlled structured light, optical tweezers based on structured light have been endowed with novel capabilities of an optical wrench involving a gradient force, which facilitates novel manipulation modes [22]. Moreover, the structured light based on polarization modulation has been utilized for aligning asymmetric particles [23 –26]. In addition to 3D positional trapping, they realized alignment of asymmetric particles. However, it is still a challenge to manipulate particles with three or more DoFs. On the other hand, a vortex beam possesses a spiral phase front that enables the transfer of orbital angular momentum (OAM) to particles, facilitating their rotation and translation. Hence, advanced structured optical tweezers have become a hot topic in optics and photonics [3,4,27]. Considering the rotation of the trapped particle on the structured beam, the existing structured optical tweezers can achieve a fourth DoF of rotation around the optical axis in addition to the three DoF displacements in space [3,28 –41]. However, it is almost impossible to further improve the DoFs of manipulation based on the existing schemes. This limitation stems from the traditional view that a trapped particle’s motion appears as a point-like motion in 3D ( $x - y - z$ ) space. Unfortunately, this perspective does not encompass the complete range of motion modes, which is why six-axis robotic arms and drones have been developed. While we cannot break out of the 3D framework, we can adopt a new approach that views the previous particle model as a rigid-body model. By leveraging novel forms of structured light, we can construct innovative optical tweezers with more DoFs and higher dimensions from this new perspective.

To achieve this goal, we introduce the concept of rigid-body mechanics in optical tweezers and propose 6D structured optical tweezers by tailoring structured light to simulate rigid-body mechanics. This structured light acts as a toroidal ring structure consisting of two semicircular arms with opposing OAMs and an interfering tip to trap particles. When the beam comes into contact with a particle, the particle is trapped at the tip by the ring arm. The combination of the coordinate transformation technique and Fourier transform theorem allows arbitrary rotation and displacement in free space. Six independent DoFs were achieved, and the motions of a six-axis rigid body were conducted, including waves, sway, heave, roll, pitch, and yaw. Therefore, toroidal light can move particles in free space and customize the particle trajectory using the Euler angle in rigid-body mechanics. Finally, we set up an experimental device and designed two experiments to verify the six-DoF modes of motion along arbitrary on-demand spatial trajectories.

2. THEORY

2.1 A. Principles and Methods

In conventional optical tweezers, the trapped particle is treated as a mass point, the light and particle are treated separately, and only the particle motion state is studied with a maximum of three dimensions, as shown in Fig. 1(a). In our proposed scheme, trapping is treated as a rigid body in which the beam and particle are analyzed as a whole using rigid-body mechanics, as shown in Fig. 1(b). When particles are trapped by gradient forces, they can be moved by moving the beam as holographic optical tweezers [16] or by moving the sample chamber [17]. It seems certain that the particle moving from one point to another can be decomposed into components of motion along the $x$ , $y$ , and $z$ axes. The motion starting at $p$ ( $x_{0}$ , $y_{0}$ , $z_{0}$ ) can be expressed as $p (x_{0} + Δ x, y_{0} + Δ y, z_{0} + Δ z) = p (x_{σ}, y_{σ}, z_{σ}),$ (1)where $x_{0}$ , $y_{0}$ , and $z_{0}$ are the initial position coordinates; $x_{σ}$ , $y_{σ}$ , and $z_{σ}$ are the position coordinates after displacement; and $Δ x$ , $Δ y$ , and $Δ z$ are the components of motion relative to the $x$ , $y$ , and $z$ axes, respectively. Equation (1) indicates that there are only three DoFs that describe the motion of the particle, that is, three straight lines along the coordinate axes. This directly limits the DoFs of optical tweezers for particle manipulation, which significantly reduces the richness of the manipulation modes of the optical tweezers. It is well known that the motion of a rigid body in space possesses six DoFs: surge (translation along the $x$ axis), sway (translation along the $y$ axis), heave (translation along the $z$ axis), roll (rotation along the $x$ axis), pitch (rotation along the $y$ axis), and yaw (rotation along the $z$ axis). Analogously, we constructed rigid-body optical tweezers to obtain the motion of particles with six DoFs in space, and the schematic diagram is shown in Fig. 1(b). Six independent DoFs are included in the total complex amplitude for 6D control of structured optical tweezers $M$ ( $θ$ , $ψ$ , $φ$ , $Δ x$ , $Δ y$ , $Δ z$ ), assuming that the ring light tip coordinate is $p$ ( $x_{0}$ , $y_{0}$ , $z_{0}$ ), and its coordinates can be expressed as $M (θ, ψ, φ, Δ x, Δ y, Δ z) = A (θ) A (ψ) A (φ) p (x_{0} + Δ x, y_{0} + Δ y, z_{0} + Δ z) = A (θ, ψ, φ) p (x_{σ}, y_{σ}, z_{σ}),$ (2)where $A (θ)$ , $A (ψ)$ , and $A$ ( $φ$ ) correspond to the rotation matrices of the $x$ , $y$ , and $z$ axes, respectively. Gaussian beams are not up to the task; thus, structural beams are exploited to solve this issue. Note that the constructed structured light, called rigid-body emulated structured light, possesses the following distinctive characteristics: (1)it is capable of free rotation in 3D space without experiencing any deformation, mimicking the behavior of a rigid body;(2)it can freely rotate and perform various motions in space without the support of additional devices;(3)it can effectively capture particles to form a rigid body for real-time manipulation.

Based on these concepts, as shown in Fig. 1(b), rigid-body optical tweezers are composed of two semicircular vortex beams, represented by two different colors. The two parts carry opposite topological charges (TCs) and produce an interference point at one of the junctions to form a tweezers’ tip to trap particles. The structured light and trapped particle are then considered as a combined rigid body. Its generation and control methods are discussed in detail in Appendix A. Consequently, no matter where the particle is within the range of the rigid-body optical tweezers, it will eventually be trapped at the tip of the tweezers. We treat the combination of the structured beam and particle as a rigid body during manipulation. Therefore, the entire optical tweezers system is endowed with the properties of a rigid body, and the motion of the particle can be regarded as the motion of a fixed point on the rigid body. The surge $Δ x$ , sway $Δ y$ , and heave $Δ z$ of the system can be precisely controlled by the Fourier phase-shift theorem and additional spherical waves as presented in Appendix A.

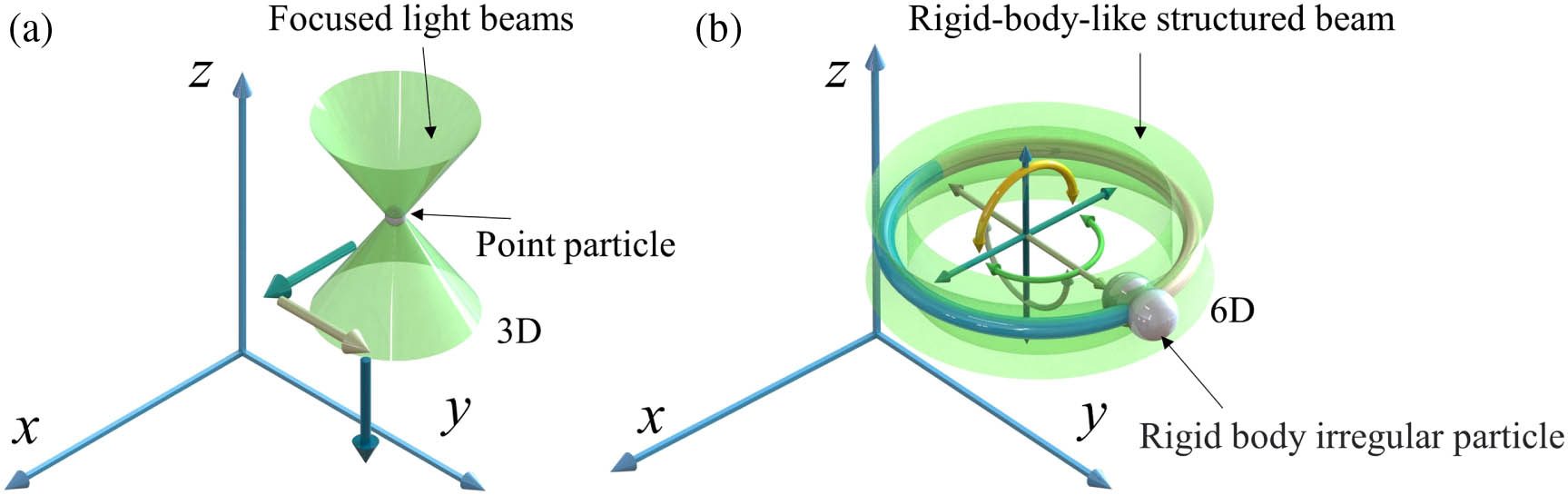

Concepts of (a) conventional optical tweezers for manipulating mass-point particles and (b) rigid-body emulated structured light tweezers for manipulating irregular objects with full-degree-of-freedom six-axis motion.

Fig. 1. Concepts of (a) conventional optical tweezers for manipulating mass-point particles and (b) rigid-body emulated structured light tweezers for manipulating irregular objects with full-degree-of-freedom six-axis motion.

下载图片查看所有图片

To describe and regulate these poses better, we exploit the universal rotation theory of rigid-body Euler angles. Figure 2 shows a schematic of the surge, sway, heave, roll, pitch, and yaw. The six DoFs are indicated by arrows in the subgraphs in different colors. Each subgraph represents the motion of toroidal light for a specific DoF. The Euler angles consist of a nutation angle $θ$ , precession angle $ψ$ , and spin angle $φ$ , which correspond to the roll, yaw, and pitch in Fig. 2, respectively. Up to now, optical tweezers have been successfully endowed with these three additional rotation dimensions. According to Schaller’s theorem [42], the displacement of a rigid body can be produced by translation along its screw axis (Mozzi axis) followed by a rotation around an axis parallel to that screw axis. In our case, all rigid-body motions are conducted in two steps: by determining the displacements ( $Δ x$ , $Δ y$ , $Δ z$ ) and then executing the rotations ( $θ$ , $ψ$ , $φ$ ). Finally, the rotation is evenly interpolated into the displacement. It should be noted that the three rotational DoFs do not conform to the law of exchange, which indicates that the rotation order affects the final result. Therefore, we can realize the rigid-body motion of toroidal light involving trapped particles in space, i.e., 6D optical tweezers. Subsequently, we select several paths for verification in the experiments.

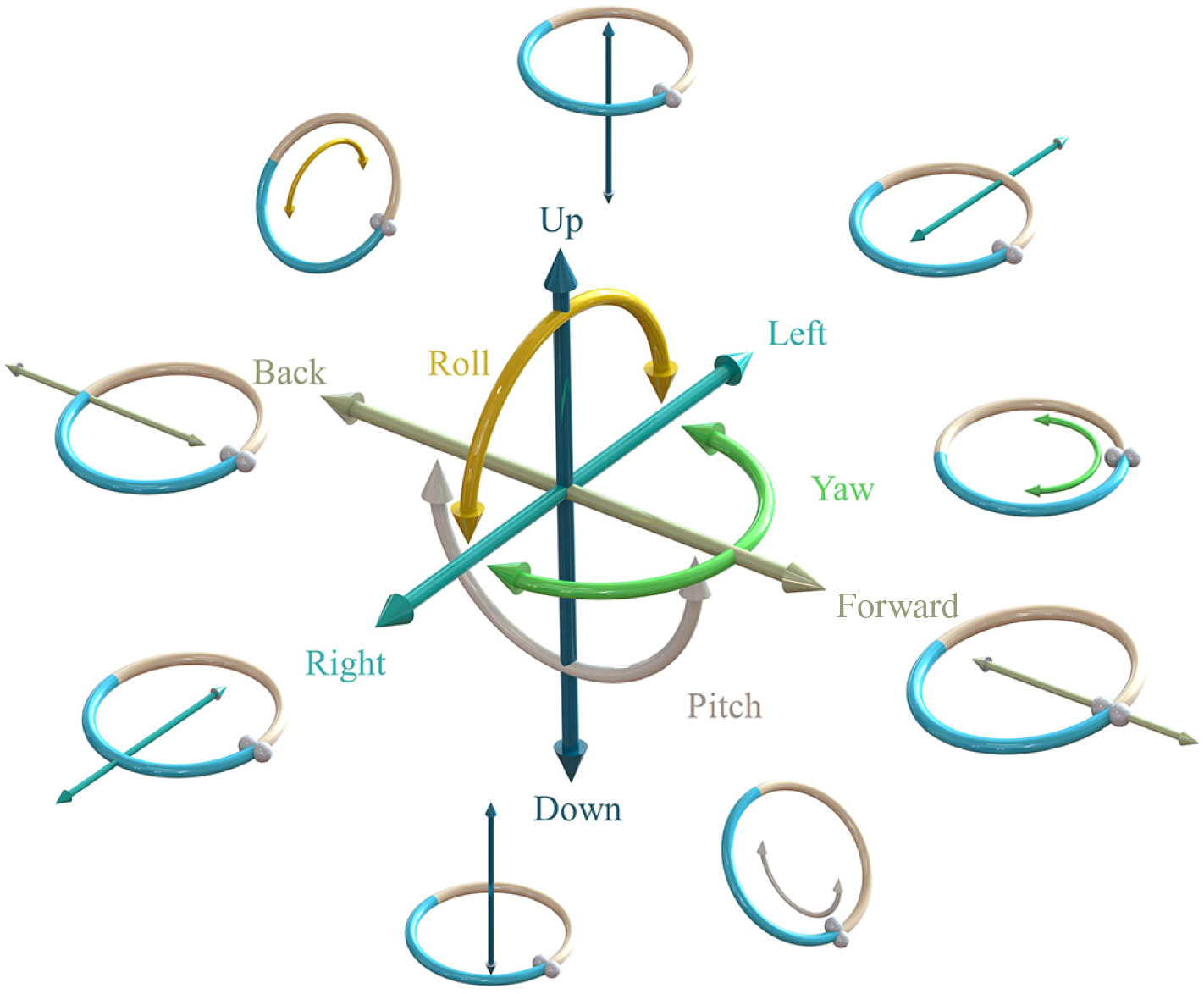

Schematic of six independent DoFs of the rigid-body mechanics with the structured light trapped particle, including surge, sway, heave, roll, pitch, and yaw.

Fig. 2. Schematic of six independent DoFs of the rigid-body mechanics with the structured light trapped particle, including surge, sway, heave, roll, pitch, and yaw.

下载图片查看所有图片

2.2 B. Experimental Setup

To verify the 6D optical tweezers, we set up an experimental device as shown in Fig. 3. The laser beam was amplified by lenses L1 ( $f = 50 mm$ ) and L2 ( $f = 200 mm$ ) and adjusted into an approximate parallel beam. The 532 nm beam was then intercepted into a flat-top beam by a small aperture A1. Through polarizer P1, linearly polarized light illuminated the spatial light modulator (SLM, HOLOEYE, pixel size, $8 μm \times 8 μm$ ; resolution, $1920 \times 1080$ pixels) for modulation. The modulated beam was filtered using a $4 f$ system comprising L3 ( $f = 200 mm$ ) and L4 ( $f = 200 mm$ ). Finally, toroidal light ( $+ 1$ st order diffraction) was obtained, which was focused through MO1 (1.2 NA, $100 \times$ ) to the sample chamber for particle manipulation. The illumination was red LED light focused through the microscopic objective MO2 (0.4 NA, $25 \times$ ). Finally, the charge-coupled device (CCD, Basler acA1600-60gc; pixel size, $4.5 μm \times 4.5 μm$ ) recorded the motion of the particles. Polarizer P2 was used to eliminate the green light in the CCD. Yeast cells were selected as samples to highlight their application in biosciences. Toroidal light is generated by holography, and the mask is loaded or switched in the SLM in real time to manipulate the cells.

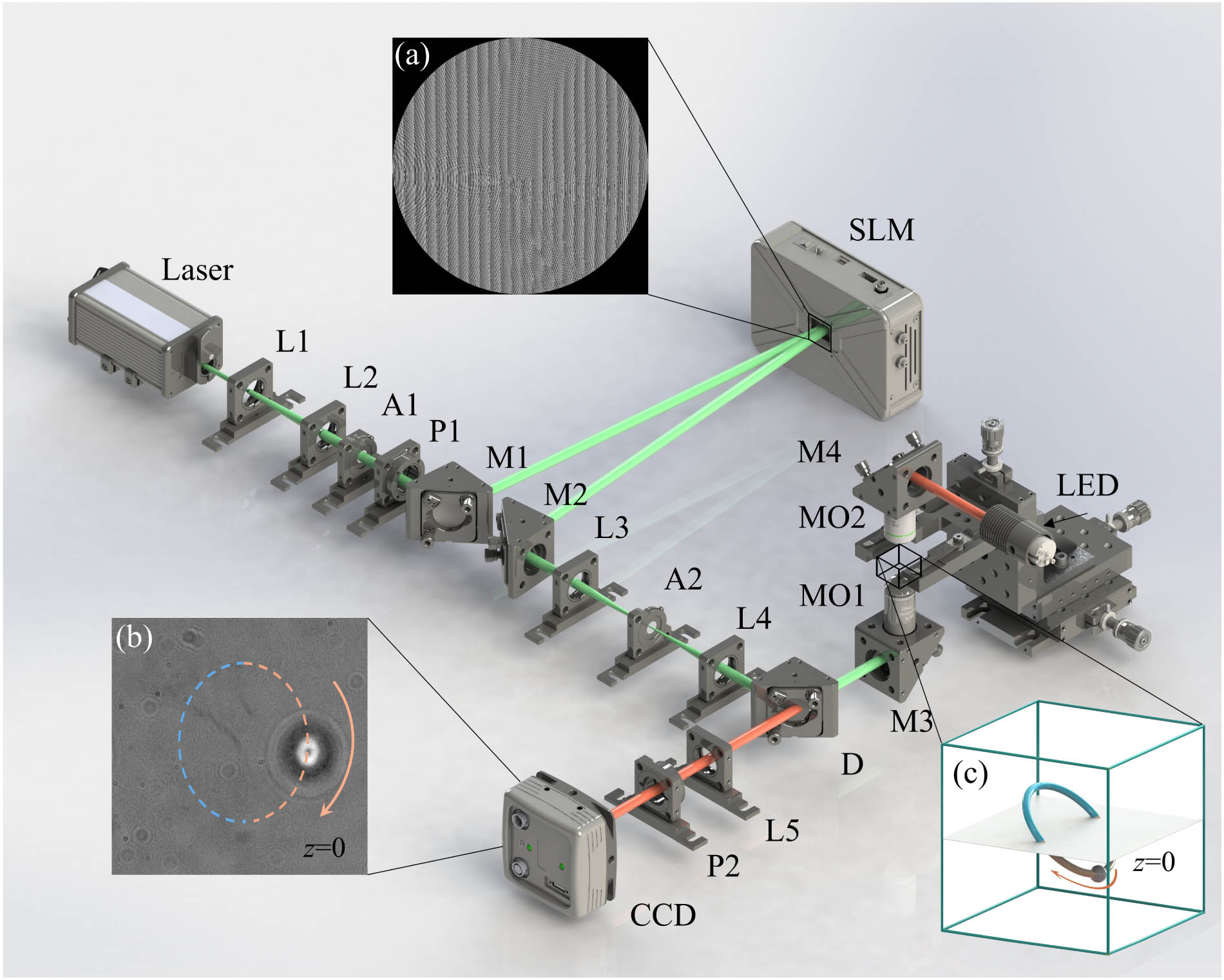

Schematic of the experimental setup. L1, concave lens; L2–L5, convex lenses; P1, P2, polarizers; A1, A2, apertures; SLM, spatial light modulator; M1–M4, mirrors; CCD, charge-coupled device; MO1, MO2, micro-objectives. (a) Phase mask diagram, (b) intensity image of captured particle at z=0 plane, and (c) 3D state model diagram of the captured particle.

Fig. 3. Schematic of the experimental setup. L1, concave lens; L2–L5, convex lenses; P1, P2, polarizers; A1, A2, apertures; SLM, spatial light modulator; M1–M4, mirrors; CCD, charge-coupled device; MO1, MO2, micro-objectives. (a) Phase mask diagram, (b) intensity image of captured particle at $z = 0$ plane, and (c) 3D state model diagram of the captured particle.

下载图片查看所有图片

3. RESULTS AND DISCUSSION

Owing to the advantages of the proposed 6D optical tweezers, we could freely customize the motion trajectories of the trapped particles. In this case, three rotational DoFs are expressed by the angle and three displacement DoFs are expressed in micrometers. A set of experiments was designed to verify the capacity of the proposed 6D optical tweezers. In the first experiment, yeast cells with asymmetrical sizes were chosen to confirm the beam’s capability in controlling the direction within the $x − y$ plane (see Visualization 1 for details). The beam parameter used in the experiment was the spin angle $φ$ , ranging from 0 to $2 π$ . By rotating the beam, we observed that the yeast particles moved in a circular motion, with the larger side of the yeast cell facing outward in the circle [see Figs. 4(a1)–4(a5) and 4(b1)–4(b5)]. In the second experiment, to verify its ability to move along the $z$ axis, we still chose the spin angle $φ = 0 - 2 π$ and the displacement along the $z$ axis $Δ z = 0 - 15 μm$ . Under these conditions, the motion trajectory of the captured particles is a 3D spiral. Figures 4(c1)–4(c5) show a part of the screenshot captured in the experiment. Figures 4(d1)–4(d5) show the corresponding 3D model demonstrations. The complete details are presented in Visualization 2. Because the CCD captures a 2D picture, Newton’s rings generated by the diffraction of trapped particles are exploited as a reference to determine the motion of the particles. During the manipulation process, the trapped particle becomes blurred, which is caused by the defocusing of the particle after 3D motion. Owing to the advantage of more DoFs of 6D optical tweezers, a complex 3D spiral trajectory can be designed by adjusting only two parameters. Further, to observe the orientation adjustment in $x − z$ plane (pitch motion), in the third experiment, we randomly selected two bonded yeast cells of different sizes and performed a 180° flip to verify the capability of our technique in adjusting particle orientation. The nutation angle $ψ$ was varied from 0 to $π$ as illustrated in Figs. 4(e1)–4(e5). As observed in Fig. 4(e1), particle 1 initially occupies the lower right position. Subsequently, in Fig. 4(e3), particle 1 rotates to the position directly below particle 2, causing it to disappear from the camera’s field of view. Finally, it reappears in the upper left position as shown in Fig. 4(e5). Full details are given in Visualization 3. The results prove that the proposed optical tweezers have the ability to modulate the orientation of trapped particles. Note that the force field applied on the trapped particle should be first studied and analyzed before motions to ensure the conditions of a solid rigid body formed by the trapped particle and the beam for manipulating complex/bulk particles.

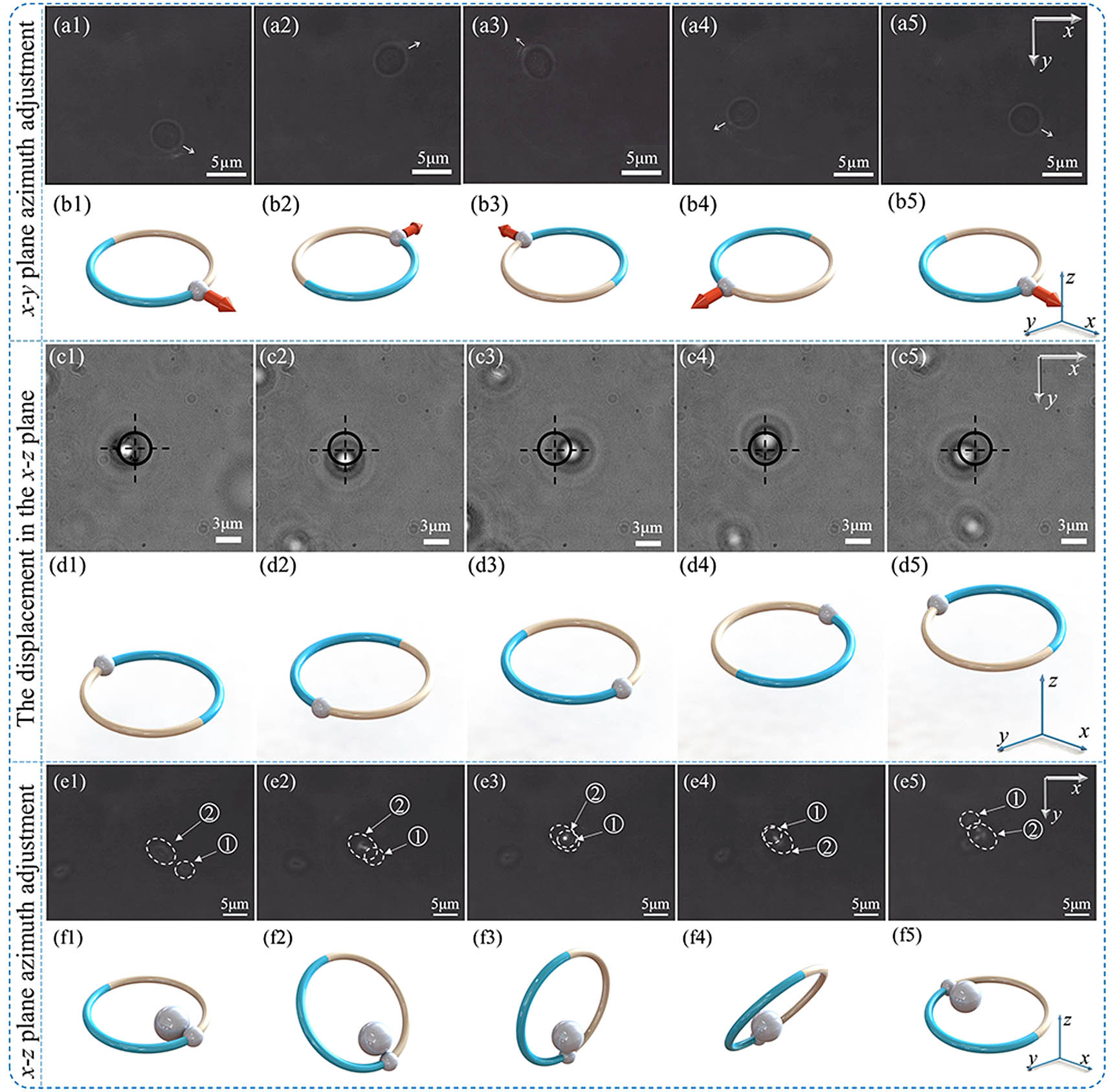

Steering ability of the beam was verified by manipulating the yeast cells. (a1)–(a5) Images recorded during the experiment, and the parameter of the beam is the spin angle φ=0–2π. (b1)–(b5) Schematics of the 3D model corresponding to the first row. (c1)–(c5) Images recorded when the yeast cells were manipulated by the spin angle φ=0–2π and displacement along the z axis Δz=0–15 μm. (d1)–(d5) Schematics of the 3D model corresponding to the third row. (e1)–(e5) Images recorded during the experiment of performing a 180º flip of the yeast cells, and the parameter of the beam is the nutation angle θ=0–2π. (f1)–(f5) Schematics of the 3D model corresponding to the fifth row.

Fig. 4. Steering ability of the beam was verified by manipulating the yeast cells. (a1)–(a5) Images recorded during the experiment, and the parameter of the beam is the spin angle $φ = 0 - 2 π$ . (b1)–(b5) Schematics of the 3D model corresponding to the first row. (c1)–(c5) Images recorded when the yeast cells were manipulated by the spin angle $φ = 0 - 2 π$ and displacement along the $z$ axis $Δ z = 0 - 15 μm$ . (d1)–(d5) Schematics of the 3D model corresponding to the third row. (e1)–(e5) Images recorded during the experiment of performing a 180º flip of the yeast cells, and the parameter of the beam is the nutation angle $θ = 0 - 2 π$ . (f1)–(f5) Schematics of the 3D model corresponding to the fifth row.

下载图片查看所有图片

(a) 3D model schematic of the TOMOTRAP method. (b) 3D model schematic of the rigid-body emulated optical tweezers. (c) Schematic of the operation of a 3D model of rigid-body optical tweezers. (d) Yeast cells are manipulated by the spin angle φ=0–2π, nutation angle θ=7π/4−π/4, and displacement along the x axis Δx=0–20 μm.

Fig. 5. (a) 3D model schematic of the TOMOTRAP method. (b) 3D model schematic of the rigid-body emulated optical tweezers. (c) Schematic of the operation of a 3D model of rigid-body optical tweezers. (d) Yeast cells are manipulated by the spin angle $φ = 0 - 2 π$ , nutation angle $θ = 7 π / 4 - π / 4$ , and displacement along the $x$ axis $Δ x = 0 - 20 μm$ .

下载图片查看所有图片

Execution of rigid-body motion of multiple particles is the outstanding advantage of the proposed 6D optical tweezers. For example, of two particles’ rigid-body motion, as depicted in Fig. 5(a), particles 1 and 2 are manipulated from $A$ to $B$ , and $C$ to $D$ in 3D space, respectively. During motion, particles 1 and 2 maintain the positions relationship of a rigid body. This is very difficult for previous manipulation techniques, especially the TOMOTRAP method [21] due to single particle manipulation. As shown in Fig. 5(b), it is easy to execute the same manipulation using the proposed rigid-body emulated optical tweezers. To verify the other DoFs and illustrate the directional change of the rigid body, we capture two particles at the same time and design a more complex 3D cycloid path, which is shown in Fig. 5 (for details, see Visualization 4), and three views of this trajectory are shown in the dashed box. The beam is modified to have two tips to accomplish this goal (for details, see Appendix B). For better characterization and comparison, we merged the patterns of the particles in the 3D model and the experimental images into one image at regular intervals. To make the 3D model clearer, the particles were painted in red and blue to highlight their positions, and two arrows of the same color with different orientations were added to indicate the direction. Explicitly, the trajectory of the trapped particle agrees well with the given complex path. In Fig. 5, the numbered sample states are captured successively, where 0 represents the starting state and 10 represents the ending state. The relative distance between the two particles does not change, but the overall orientation keeps changing in the process of movement. The results prove that the proposed 6D optical tweezers can conduct arbitrary combinations of six DoFs.

The capacity of the proposed 6D optical tweezers was greater than that of the conventional tweezers. The trapping range can be controlled by adjusting the radius of toroidal light, whereas the velocity of the particles can be controlled by adjusting the change frequency of the mask or the interval between changes in the DoF parameters (see Appendix B). The experiment of capturing yeast in different planes by changing the precession angle is described in Appendix B. Furthermore, the optical trap stiffness was measured as a standard to evaluate the performance of the proposed optical tweezers. Considering generality, polystyrene spheres were selected for the drag test. The power of the beam before entering the microscope objective prevails, and the test results indicate that the trap stiffness of the particle is proportional to the laser power for a specific particle. When the laser power is 30 mW, the optical trap stiffness is approximately 1.34 pN/μm, which is sufficient to support it to drive most biological cells without causing thermal damage. The details are presented in Appendix B.

For discussion, it is beneficial for readers to compare and review the proposed method with previous manipulation techniques, such as polarization modulation [23 –26] and TOMOTRAP. (1)The first and most significant distinction is the mechanism of manipulation. As demonstrated in our experiments, rigidly moving the beam equates to the manipulated particles, which represents a completely new and unprecedented concept.(2)The proposed method greatly simplifies the rigid-body motion manipulation of multiple particles. Compared with the TOMOTRAP method, the proposed method exhibits the manipulation capacity of the smaller particle $\sim 500 nm$ .(3)Our technique offers a greater DoF in terms of motion control than traditional polarization-based methods.

4. CONCLUSIONS AND OUTLOOK

Our experiments demonstrated the feasibility of using 6D optical tweezers. We also measure the performance parameters of 6D optical tweezers in Appendix B, which lays the foundation for their applications in other fields. In our case, based on the demonstration of trapped particles, only two trajectories were illustrated, but the six-DoF settings of the optical tweezers (in addition to making toroidal light perfectly parallel to the optical axis) were arbitrary. Thus, the velocity and trajectory of the particles can be customized according to researchers’ desires and requirements. In our experiment, the orientation of the multi-particle system can be controlled significantly, and we can achieve a large angle between the toroidal structured beam and the $x − y$ plane (enough to flip the particle 360°; see Appendix B and Visualization 6 for details). These characteristics are not available in traditional 3D optical tweezers. Thus, the realization of six-DoF manipulation means that the limitation of the previous point motion is broken. The freedom to complete six-axis motion means that we can conduct operations similar to macroscopic robotic arms in the microscopic world. With the enhancement of real-time microscopic observation technology to detect such motions of particles, the comprehensive regulation of particle orientation and other attributes can be executed. This study is important in pertaining to the manipulation of particles with complex shapes to enable the next generation of optical tweezers.

The rigid-body-emulated tweezers in toroidal structured light provide extra DoFs for optical tweezers and achieve 6D optical tweezers. The proposed 6D optical tweezers can simultaneously generate multiple interference points with controllable spacing and are not limited to circular beams. Our method can be extended to novel advanced optical tweezers employing other kinds of complex structured light, such as torus knots [43 –45], super-toroids [46], and ray–wave vector beams [47 –49], which will lead to higher-dimensional control. This scheme is a fundamental platform, based on which even higher-dimensional (7D) optical tweezers can be developed by involving time as an additional DoF. The structured beam on the spatiotemporal scale can cause particles to execute arbitrary circular motions under certain circumstances [50 –52], and more dimensions subjoin the optical tweezers by introducing space–time optics. The self-accelerating wave envelopment causes arbitrary temporal control acceleration for the optical field, which creates longitudinally invariant DoFs for optical manipulation [53 –55]. Moreover, the introduction of symmetry and nonlinearity of increasingly complex structured light will provide more DoFs and lead to novel applications for complex tweezers and multi-particle manipulation [56 –59]. In summary, we devised a basic method to generate higher-dimensional optical tweezers of arbitrary rigid-body objects, paving the way for studying more extreme light–matter interactions in the future.

References

[1] A. Forbes, M. de Oliveira, M. R. Dennis. Structured light. Nat. Photonics, 2021, 15: 253-262.

[2] C. He, Y. Shen, A. Forbes. Towards higher-dimensional structured light. Light Sci. Appl., 2022, 11: 205.

[3] Y. Yang, Y. Ren, M. Chen, Y. Arita, C. Rosales-uzmán. Optical trapping with structured light: a review. Adv. Photon., 2021, 3: 034001.

[4] E. Otte, C. Denz. Optical trapping gets structure: structured light for advanced optical manipulation. Appl. Phys. Rev., 2020, 7: 041308.

[5] E. L. Raab, M. Prentiss, A. Cable, S. Chu, D. E. Pritchard. Trapping of neutral sodium atoms with radiation pressure. Phys. Rev. Lett., 1987, 59: 2631-2634.

[6] A. Ashkin, J. M. Dziedzic, J. E. Bjorkholm, S. Chu. Observation of a single-beam gradient force optical trap for dielectric particles. Opt. Lett., 1986, 11: 288-290.

[7] T. T. Ngo, Q. Zhang, R. Zhou, J. G. Yodh, T. Ha. Asymmetric unwrapping of nucleosomes under tension directed by DNA local flexibility. Cell, 2015, 160: 1135-1144.

[8] R. Reimann, M. Doderer, E. Hebestreit, R. Diehl, M. Frimmer, D. Windey, F. Tebbenjohanns, L. Novotny. GHz rotation of an optically trapped nanoparticle in vacuum. Phys. Rev. Lett., 2018, 121: 033602.

[9] G. Rui, Y. Li, S. Zhou, Y. Wang, B. Gu, Y. Cui, Q. Zhan. Optically induced rotation of Rayleigh particles by arbitrary photonic spin. Photon. Res., 2019, 7: 69-79.

[10] T. Chantakit, C. Schlickriede, B. Sain, F. Meyer, T. Weiss, N. Chattham, T. Zentgraf. All-dielectric silicon metalens for two-dimensional particle manipulation in optical tweezers. Photon. Res., 2020, 8: 1435-1440.

[11] L. W. Russell, E. C. Dossetor, A. A. Wood, D. A. Simpson, P. J. Reece. Optimizing optical tweezers experiments for magnetic resonance sensing with nanodiamonds. ACS Photon., 2021, 8: 1214-1221.

[12] Q. Sun, K. Dholakia, A. D. Greentree. Optical forces and torques on eccentric nanoscale core–shell particles. ACS Photon., 2021, 8: 1103-1111.

[13] W. Ding, T. Zhu, L. M. Zhou, C. W. Qiu. Photonic tractor beams: a review. Adv. Photon., 2019, 1: 024001.

[14] L. Zhu, M. Tang, H. Li, Y. Tai, X. Li. Optical vortex lattice: an exploitation of orbital angular momentum. Nanophotonics, 2021, 10: 2487-2496.

[15] P. G. Bassindale, D. B. Phillips, A. C. Barnes, B. W. Drinkwater. Measurements of the force fields within an acoustic standing wave using holographic optical tweezers. Appl. Phys. Lett., 2014, 104: 163504.

[16] J. E. Melzer, E. McLeod. Fundamental limits of optical tweezer nanoparticle manipulation speeds. ACS Nano, 2018, 12: 2440-2447.

[17] E. Schaffer, S. F. Norrelykke, J. Howard. Surface forces and drag coefficients of microspheres near a plane surface measured with optical tweezers. Langmuir, 2007, 23: 3654-3665.

[18] Y. Cai, S. Yan, Z. Wang, R. Li, Y. Liang, Y. Zhou, X. Li, X. H. Yu, M. Lei, B. L. Yao. Rapid tilted-plane Gerchberg-Saxton algorithm for holographic optical tweezers. Opt. Express, 2020, 28: 12729-12739.

[19] C. H. Schmitz, J. P. Spatz, J. E. Curtis. High-precision steering of multiple holographic optical traps. Opt. Express, 2005, 13: 8678-8685.

[20] L. A. Shaw, R. M. Panas, C. M. Spadaccini, J. B. Hopkins. Scanning holographic optical tweezers. Opt. Lett., 2017, 42: 2862-2865.

[21] C. Lancey, M. Tehseen, V. Raducanu, F. Rashid, N. Merino, T. J. Ragan, C. G. Savva, M. S. Zaher, A. Shirbini, F. J. Blanco, S. M. Hamdan, A. De Biasio. Structure of the processive human Pol δ holoenzyme. Nat. Commun., 2020, 11: 1109.

[22] Y. Shen, X. Wang, Z. Xie, C. Min, X. Fu, Q. Liu, M. L. Gong, X. C. Yuan. Optical vortices 30 years on: OAM manipulation from topological charge to multiple singularities. Light. Sci. Appl., 2019, 8: 90.

[23] L. Tong, V. D. Miljkovic, M. Kall. Alignment, rotation, and spinning of single plasmonic nanoparticles and nanowires using polarization dependent optical forces. Nano Lett., 2010, 10: 268-273.

[24] X. Xu, C. Cheng, Y. Zhang, H. Lei, B. Li. Scattering and extinction torques: how plasmon resonances affect the orientation behavior of a nanorod in linearly polarized light. J. Phys. Chem. Lett., 2016, 7: 314-319.

[25] S. Kuhn, A. Kosloff, B. A. Stickler, F. Patolsky, K. Hornberger, M. Arndt, J. Millen. Full rotational control of levitated silicon nanorods. Optica, 2017, 4: 356-360.

[26] J. Ahn, Z. Xu, J. Bang, Y. Deng, T. M. Hoang, Q. Han, R. Ma, T. Li. Optically levitated nanodumbbell torsion balance and GHz nanomechanical rotor. Phys. Rev. Lett., 2018, 121: 033603.

[27] K. B. Crozier. Quo vadis, plasmonic optical tweezers?. Light Sci. Appl., 2019, 8: 35.

[28] A. Curran, S. Tuohy, D. G. Aarts, M. J. Booth, T. Wilson, R. P. Dullens. Decoupled and simultaneous three-dimensional imaging and optical manipulation through a single objective. Optica, 2014, 1: 223-226.

[29] D. J. Armstrong, T. A. Nieminen, A. B. Stilgoe, A. V. Kashchuk, I. C. Lenton, H. Rubinsztein-Dunlop. Swimming force and behavior of optically trapped micro-organisms. Optica, 2020, 7: 989-994.

[30] D. Barredo, V. Lienhard, S. De Leseleuc, T. Lahaye, A. Browaeys. Synthetic three-dimensional atomic structures assembled atom by atom. Nature, 2018, 561: 79-82.

[31] Y. Gao, R. Harder, S. H. Southworth, J. R. Guest, X. Huang, Z. Yan, L. E. Ocola, Y. Yifat, N. Sule, P. J. Ho. Three-dimensional optical trapping and orientation of microparticles for coherent x-ray diffraction imaging. Proc. Natl. Acad. Sci. USA, 2019, 116: 4018-4024.

[32] S. Hu, R. Hu, X. Dong, T. Wei, S. Chen, D. Sun. Translational and rotational manipulation of filamentous cells using optically driven microrobots. Opt. Express, 2019, 27: 16475-16482.

[33] M. Bugiel, E. Schäffer. Three-dimensional optical tweezers tracking resolves random sideward steps of the kinesin-8 Kip3. Biophys. J., 2018, 115: 1993-2002.

[34] J. A. Rodrigo, M. Angulo, T. Alieva. All-optical motion control of metal nanoparticles powered by propulsion forces tailored in 3D trajectories. Photon. Res., 2021, 9: 1-12.

[35] Y. Liang, S. Yan, Z. Wang, R. Li, Y. Cai, M. He, B. Yao, M. Lei. Simultaneous optical trapping and imaging in the axial plane: a review of current progress. Rep. Prog. Phys., 2020, 83: 032401.

[36] Y. Zhang, C. Min, X. Dou, X. Wang, H. P. Urbach, M. G. Somekh, X. Yuan. Plasmonic tweezers: for nanoscale optical trapping and beyond. Light Sci. Appl., 2021, 10: 59.

[37] J. Rodrigo, T. Alieva. Freestyle 3D laser traps: tools for studying light-driven particle dynamics and beyond. Optica, 2015, 2: 812-815.

[38] J. Rodrigo, M. Angulo, T. Alieva. Programmable optical transport of particles in knot circuits and networks. Opt. Lett., 2018, 43: 4244-4247.

[39] J. Rodrigo, M. Angulo, T. Alieva. Dynamic morphing of 3D curved laser traps for all-optical manipulation of particles. Opt. Express, 2018, 26: 18608-18620.

[40] S. Lee, Y. Roichman, D. Grier. Optical solenoid beams. Opt. Express, 2010, 18: 6988-6993.

[41] E. Shanblatt, D. Grier. Extended and knotted optical traps in three dimensions. Opt. Express, 2011, 19: 5833-5838.

[42] WhittakerE. T., A Treatise on the Analytical Dynamics of Particles and Rigid Bodies (CUP Archive, 1964).

[43] M. F. -GarciaFerrer, A. D’Errico, H. Larocque, A. Sit, E. Karimi. Polychromatic electric field knots. Phys. Rev. Res., 2021, 3: 033226.

[44] H. Larocque, D. Sugic, D. Mortimer, A. J. Taylor, R. Fickler, R. W. Boyd, M. R. Dennis, K. Ebrahim. Reconstructing the topology of optical polarization knots. Nat. Phys., 2018, 14: 1079-1082.

[45] C. D. Parmee, M. R. Dennis, J. Ruostekoski. Optical excitations of Skyrmions, knotted solitons, and defects in atoms. Commun. Phys., 2022, 5: 54.

[46] Y. Shen, Y. Hou, N. Papasimakis, N. I. Zheludev. Supertoroidal light pulses as electromagnetic skyrmions propagating in free space. Nat. Commun., 2021, 12: 5891.

[47] Z. Wan, Z. Wang, X. Yang, Y. Shen, X. Fu. Digitally tailoring arbitrary structured light of generalized ray-wave duality. Opt. Express, 2020, 28: 31043-31056.

[48] Y. Shen, X. Yang, D. Naidoo, X. Fu, A. Forbes. Structured ray-wave vector vortex beams in multiple degrees of freedom from a laser. Optica, 2020, 7: 820-831.

[49] Y. Shen, Z. Wang, X. Fu, D. Naidoo, A. Forbes. SU(2) Poincaré sphere: a generalized representation for multidimensional structured light. Phys. Rev. A, 2020, 102: 031501.

[50] ShenY.ZhanQ.WrightL. G.ChristodoulidesD. N.WiseF. W.WillnerA. E.ZhaoZ.ZouK.-H.LiaoC.-T.Hernández-GarcíaC.MurnaneM.PorrasM. A.ChongA.WanC.BliokhK. Y.YessenovM.AbouraddyA. F.WongL. J.GoM.KumarS.GuoC.FanS.PapasimakisN.ZheludevN. I.ChenL.ZhuW.AgrawalA.JollyS. W.DorrerC.AlonsoB.Lopez-QuintasI.López-RipaM.SolaÍ. J.FangY.GongQ.LiuY.HuangJ.ZhangH.RuanZ.MounaixM.FontaineN. K.CarpenterJ.DorrahA. H.CapassoF.ForbesA., “Roadmap on spatiotemporal light fields,” arXiv, arXiv:2210.11273 (2023).

[51] C. Wan, Q. Cao, J. Chen, A. Chong, Q. Zhan. Toroidal vortices of light. Nat. Photonics, 2022, 16: 519-522.

[52] A. Zdagkas, C. McDonnell, J. Deng, Y. Shen, G. Li, T. Ellenbogen, N. Papasimakis, N. I. Zheludev. Observation of toroidal pulses of light. Nat. Photonics, 2022, 16: 523-528.

[53] M. Chen, S. Huang, X. Liu, Y. Chen, W. Shao. Optical trapping and rotating of micro-particles using the circular Airy vortex beams. Appl. Phys. B, 2019, 125: 184.

[54] P. Panagiotopoulos, D. G. Papazoglou, A. Couairon, S. Tzortzakis. Sharply autofocused ring-Airy beams transforming into non-linear intense light bullets. Nat. Commun., 2013, 4: 2622.

[55] J. Pan, H. Wang, Y. Shen, X. Fu, Q. Liu. Airy coherent vortices: 3D multilayer self-accelerating structured light. Appl. Phys. Lett., 2022, 121: 141402.

[56] Y. Shen, S. Pidishety, I. M. Nape, A. Dudley. Self-healing of structured light: a review. J. Opt., 2022, 24: 103001.

[57] Z. Wan, H. Wang, Q. Liu, X. Fu, Y. Shen. Ultra-degree-of-freedom structured light for ultracapacity information carriers. ACS Photon., 2023, 10: 2149.

[58] Y. Shen. Rays, waves, SU(2) symmetry and geometry: toolkits for structured light. J. Opt., 2021, 23: 124004.

[59] ShenY.ZhangQ.ShiP.DuL.ZayatsA. V.YuanX., “Topological quasiparticles of light: optical skyrmions and beyond,” arXiv, arXiv:2205.10329 (2023).

[60] A. V. Ponomarev, S. Denisov, H. Peter. AC-driven atomic quantum motor. Phys. Rev. Lett., 2009, 102: 230601.

[61] H. Zhang, X. Li, H. Ma, M. Tang, H. Li, J. Tang, Y. Cai. Grafted optical vortex with controllable orbital angular momentum distribution. Opt. Express, 2019, 27: 22930-22938.

[62] X. Z. Li, H. X. Ma, H. Zhang, M. M. Tang, H. H. Li, J. Tang, Y. S. Wang. Is it possible to enlarge the trapping range of optical tweezers via a single beam?. Appl. Phys. Lett., 2019, 114: 081903.

[63] A. Rohrbach. Stiffness of optical traps: quantitative agreement between experiment and electromagnetic theory. Phys. Rev. Lett., 2005, 95: 168102.

[64] L. Huang, H. Guo, J. Li, L. Ling, B. Feng, Z. Y. Li. Optical trapping of gold nanoparticles by cylindrical vector beam. Opt. Lett., 2012, 37: 1694-1696.
