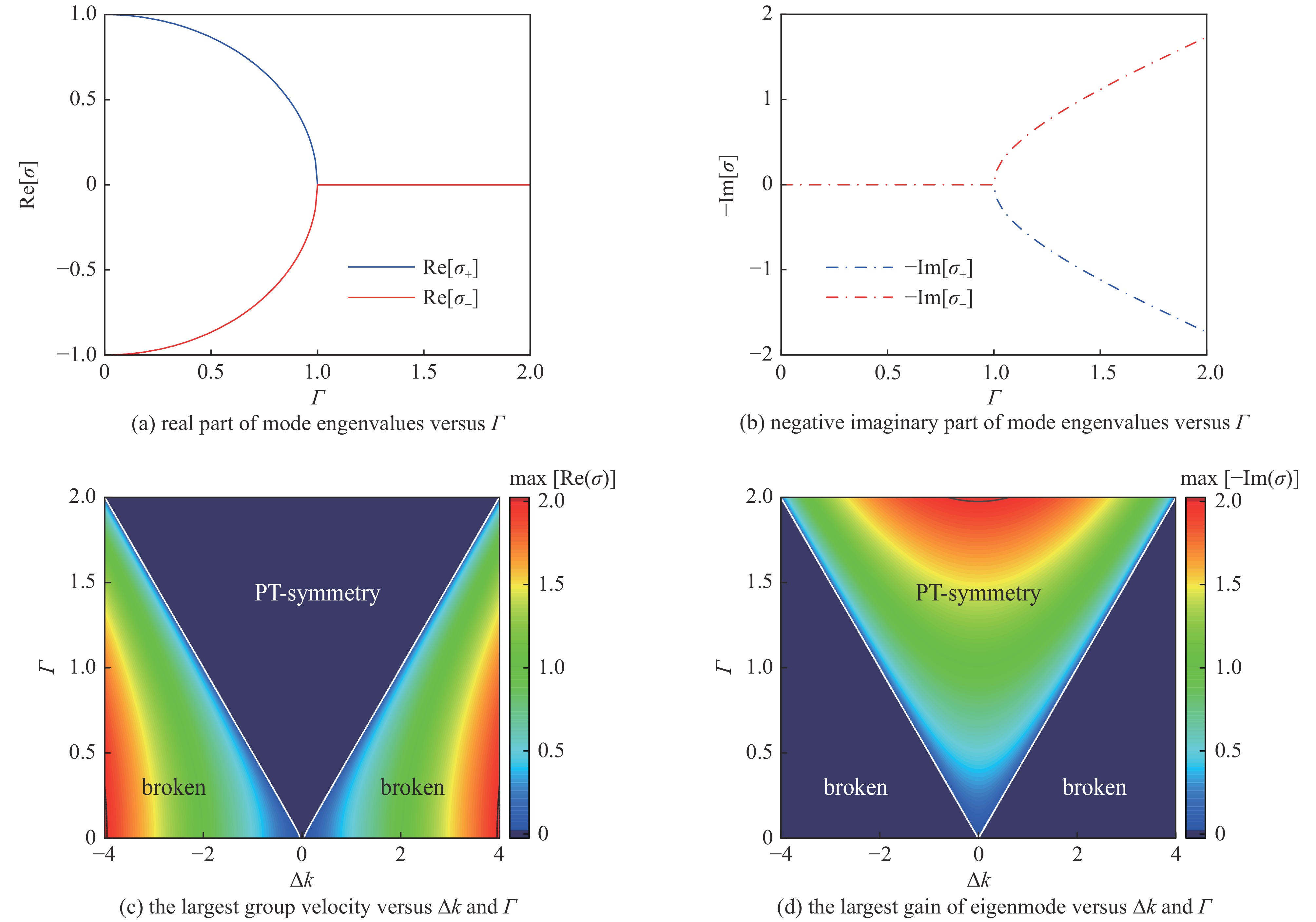

论证了单晶体光参量放大（OPA）过程在特定边界条件下满足频域宇称-时间（PT）反对称性。归一化的数值求解结果显示，OPA系统PT对称阈值点附近呈现增益跃变性质。对于存在位相失配的OPA，通过实时调控泵浦光强，即可控制系统PT对称性，论文基于相位失配OPA中可超快调控PT对称性的特性构建了超快光开关，一方面光开关与周期性幅度调制的泵浦光联合使用，可直接将连续激光转换为超短脉冲序列输出；另一方面，构建的光开关也可用于脉冲激光再压缩，有望用于中红外波等长波段超短种子源。论文提出的基于超快光开关直接产生超短脉冲序列的方案，由于不需要光学谐振腔，易于实现大于10 GHz的超高重复频率。

Spatiotemporal mode-locking creates great opportunity for pulse energy scaling and nonlinear optics research in fiber. Until now, spatiotemporal mode-locking has only been realized in normal-dispersion dissipative soliton and similariton fiber lasers. In this paper, we demonstrated the first experimental realization of a spatiotemporally mode-locked soliton laser in mid-infrared fluoride fiber with anomalous dispersion. The mode-locked fluoride fiber oscillator directly generated a record pulse energy of 16.1 nJ and peak power of 74.6 kW at 2.8 μm wavelength. This work extends the spatiotemporal mode-locking to soliton fiber lasers and should have a wide interest for the laser community.

Parametric interaction allows both forward and backward energy transfers among the three interacting waves. The back-conversion effect is usually detrimental when unidirectional energy transfer is desired. In this theoretical work, we manifest that the back-conversion effect underpins the direct generation of the picosecond pulse train without the need for a laser resonator. The research scenario is an optical parametric amplification (OPA) that consists of a second-order nonlinear medium, a quasi-continuous pump laser and a sinusoidal amplitude-modulated seed signal. The back-conversion of OPA can transfer the modulation peaks (valleys) of the incident signal into output valleys (peaks), which inherently induces spectral sidebands. The generation of each sideband is naturally accompanied with a phase shift of ±π. In the regime of full-back-conversion, the amount and amplitude of the sidebands reach the maximum simultaneously, and their phase constitutes an arithmetic sequence, leading to the production of a picosecond pulse train. The generated picosecond pulse train can have an ultrahigh repetition rate of 40 GHz or higher, which may facilitate ultrafast applications with ultrahigh speed.

In strong-field physics experiments with ultraintense lasers, a single-shot cross-correlator (SSCC) is essential for fast optimization of the pulse contrast and meaningful comparison with theory for each pulse shot. To simultaneously characterize an ultrashort pulse and its long pedestal, the SSCC device must have both a high resolution and a large temporal window. However, the resolution and window in all kinds of single-shot measurement contradict each other in principle. Here we propose and demonstrate a novel SSCC device with two separate measurement channels: channel-1 for the large-window pedestal measurement has a moderate resolution but a large window, while channel-2 for the ultrashort pulse measurement has a small window but a high resolution; this allows the accurate characterization of the pulse contrast in a single shot. A two-channel SSCC device with a 200-fs resolution and 114-ps window has been developed and tested for its application in ultraintense lasers at 800 nm.

Optical parametric chirped-pulse amplification is inevitably subject to high-order spatial chirp, particularly under the condition of saturated amplification and a Gaussian pump; this corresponds to an irreversible spatiotemporal distortion and consequently degrades the maximum attainable focused intensity. In this paper, we reveal that such spatial chirp distortion can be significantly mitigated in quasi-parametric chirped-pulse amplification (QPCPA) with idler absorption. Simulation results show that the quality of focused intensity in saturated QPCPA is nearly ideal, with a spatiotemporal Strehl ratio higher than 0.98. As the seed bandwidth increases, the idler absorption spectrum may not be uniform, but the Strehl ratio in QPCPA can be still high enough due to stronger idler absorption.

提出并研究了一种宽带、大量程、方向可控的超短脉冲群速度调控方法。利用级联光参量放大，将泵浦光时域的线性强度调制转移至啁啾信号光频域的线性位相调制，压缩后信号光脉冲将获得延时或提前。通过调控泵浦时域强度调制的斜率大小和符号，可对信号光群速度调控的量程和方向进行灵活操控。级联光参量放大过程不需要满足位相匹配，响应带宽很大，原理上支持周期量级脉冲的群速度调控。分别研究了锯齿型和高斯型脉冲泵浦的级联光参量放大过程，演示验证了该方法的调控效果。该方法可在常规非线性晶体中实施，具备应用价值。

We demonstrated a femtosecond mode-locked Er:ZrF₄-BaF₂-LaF₃-AlF₃-NaF (Er:ZBLAN) fiber laser at 2.8 μm based on the nonlinear polarization rotation technique. The laser generated an average output power of 317 mW with a repetition rate of 107 MHz and pulse duration as short as 131 fs. To the best of our knowledge, this is the shortest pulse generated directly from a mid-infrared mode-locked Er:ZBLAN fiber laser to date. Numerical simulation and experimental results confirm that reducing the gain fiber length is an effective way to shorten the mode-locked pulse duration in the Er:ZBLAN fiber laser. The work takes an important step towards sub-100-fs mid-infrared pulse generation from mode-locked Er:ZBLAN fiber lasers.

The mode-locked fluoride fiber laser (MLFFL) is an exciting platform for directly generating ultrashort pulses in the mid-infrared (mid-IR). However, owing to difficulty in managing the dispersion in fluoride fiber lasers, MLFFLs are restricted to the soliton regime, hindering pulse-energy scaling. We overcame the problem of dispersion management by utilizing the huge normal dispersion generated near the absorption edge of an infrared-bandgap semiconductor and promoted MLFFL from soliton to breathing-pulse mode-locking. In the breathing-pulse regime, the accumulated nonlinear phase shift can be significantly reduced in the cavity, and the pulse-energy-limitation effect is mitigated. The breathing-pulse MLFFL directly produced a pulse energy of 9.3 nJ and pulse duration of 215 fs, with a record peak power of 43.3 kW at 2.8 μm. Our work paves the way for the pulse-energy and peak-power scaling of mid-IR fluoride fiber lasers, enabling a wide range of applications.

High-power femtosecond lasers beyond $5~\unicode[STIX]{x03BC}\text{m}$ are attractive for strong-field physics with mid-infrared (IR) fields but are difficult to scale up. In optical parametric chirped-pulse amplification (OPCPA) at mid-IR wavelengths, a nonlinear crystal is vital, and its transmittance, dispersion, nonlinear coefficient and size determine the achievable power and wavelength. OPCPA beyond $5~\unicode[STIX]{x03BC}\text{m}$ routinely relies on semiconductor crystals because common oxide crystals are not transparent in this spectral range. However, the small size and low damage threshold of semiconductor crystals fundamentally limit the peak power to gigawatts. In this paper, we design a terawatt-class OPCPA system at $5.2~\unicode[STIX]{x03BC}\text{m}$ based on a new kind of oxide crystal of $\text{La}_{3}\text{Ga}_{5.5}\text{Nb}_{0.5}\text{O}_{14}$ (LGN). The extended transparent range, high damage threshold, superior phase-matching characteristics and large size of LGN enable the generation of 0.13 TW seven-cycle pulses at $5.2~\unicode[STIX]{x03BC}\text{m}$. This design fully relies on the state-of-the-art OPCPA technology of an octave-spanning ultrafast Ti:sapphire laser and a thin-disk Yb:YAG laser, offering the performance characteristics of high power, a high repetition rate and a stable carrier–envelope phase.

In the 2015 review paper ‘Petawatt Class Lasers Worldwide’ a comprehensive overview of the current status of high-power facilities of ${>}200~\text{TW}$ was presented. This was largely based on facility specifications, with some description of their uses, for instance in fundamental ultra-high-intensity interactions, secondary source generation, and inertial confinement fusion (ICF). With the 2018 Nobel Prize in Physics being awarded to Professors Donna Strickland and Gerard Mourou for the development of the technique of chirped pulse amplification (CPA), which made these lasers possible, we celebrate by providing a comprehensive update of the current status of ultra-high-power lasers and demonstrate how the technology has developed. We are now in the era of multi-petawatt facilities coming online, with 100 PW lasers being proposed and even under construction. In addition to this there is a pull towards development of industrial and multi-disciplinary applications, which demands much higher repetition rates, delivering high-average powers with higher efficiencies and the use of alternative wavelengths: mid-IR facilities. So apart from a comprehensive update of the current global status, we want to look at what technologies are to be deployed to get to these new regimes, and some of the critical issues facing their development.
