Free-electron light sources feature extraordinary luminosity, directionality, and coherence, which has enabled significant scientific progress in fields including physics, chemistry, and biology. The next generation of light sources has aimed at compact radiation sources driven by free electrons, with the advantages of reduction in both space and cost. With the rapid development of ultra-intense and ultrashort lasers, great effort has been devoted to the quest for compact free-electron lasers (FELs). This review focuses on the current efforts and advancements in the development of compact FELs, with a particular emphasis on two notable paths: the development of compact accelerators and the construction of micro undulators based on innovative materials/structures or optical modulation of electrons. In addition, the physical essence of inverse Compton scattering is discussed, which offers remarkable capability to develop an optical undulator with a spatial period that matches the optical wavelength. Recent scientific developments and future directions for miniaturized and integrated free-electron coherent light sources are also reviewed. In the future, the prospect of generating ultrashort electron pulses will provide fascinating means of producing superradiant radiation, promising high brilliance and coherence even on a micro scale using optical micro undulators.

The development of high-intensity ultrafast laser facilities provides the possibility to create novel physical phenomena and matter states. The timing fluctuation of the laser pulses is crucial for pump–probe experiments, which is one of the vital means to observe the ultrafast dynamics driven by intense laser pulses. In this paper, we demonstrate the timing fluctuation characterization and control of the front end of a 100-PW laser that is composed of a high-contrast optical parametric amplifier (seed) and a 200-TW optical parametric chirped pulse amplifier (preamplifier). By combining the timing jitter measurement with a feedback system, the laser seed and preamplifier are synchronized to the reference with timing fluctuations of 1.82 and 4.48 fs, respectively. The timing system will be a key prerequisite for the stable operation of 100-PW laser facilities and provide the basis for potential pump–probe experiments performed on the laser.

As intense, ultrashort, kHz-repetition-rate laser systems become commercially available, pulse cumulative effects are critical for laser filament-based applications. In this work, the pulse repetition-rate effect on femtosecond laser filamentation in air was investigated both numerically and experimentally. The pulse repetition-rate effect has negligible influence at the leading edge of the filament. Clear intensity enhancement from a high-repetition pulse is observed at the peak and tailing edge of the laser filament. As the repetition rate of the laser pulses increases from 100 to 1000 Hz, the length of the filament extends and the intensity inside the filament increases. A physical picture based on the pulse repetition-rate dependent ‘low-density hole’ effect on filamentation is proposed to explain the obtained results well.

A single-shot measurement of electron emittance was experimentally accomplished using a focused transfer line with a dipole. The betatron phase of electrons based on laser wakefield acceleration (LWFA) is energy dependent owing to the coupling of the longitudinal acceleration field and the transverse focusing (defocusing) field in the bubble. The phase space presents slice information after phase compensation relative to the center energy. Fitting the transverse size of the electron beam at different energy slices in the energy spectrum measured 0.27 mm mrad in the experiment. The diagnosis of slice emittance facilitates local electron quality manipulation, which is important for the development of LWFA-based free electron lasers. The quasi-3D particle-in-cell simulations matched the experimental results and analysis well.

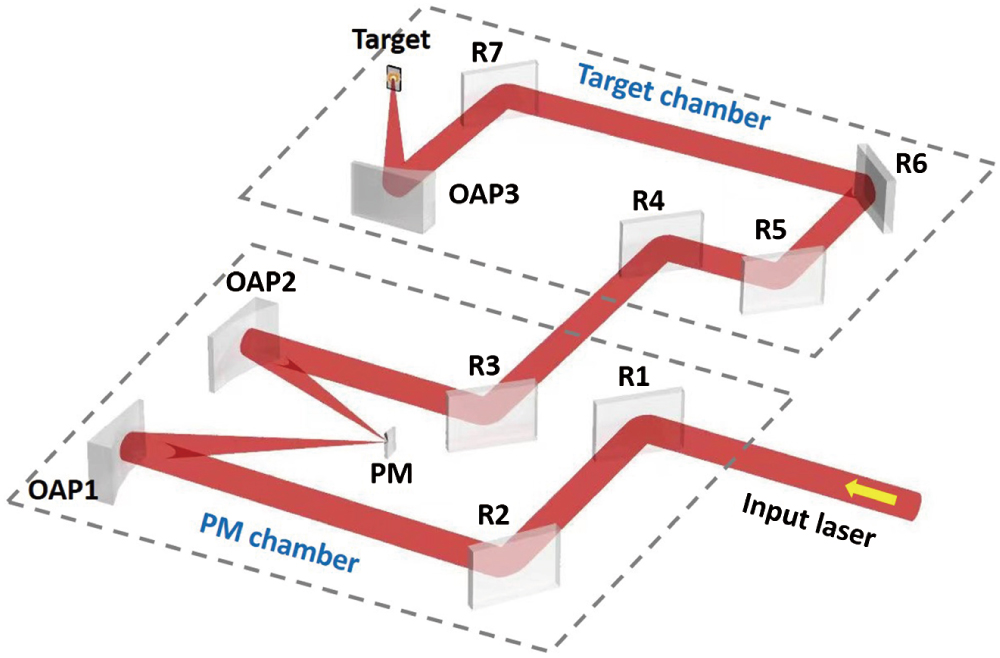

The plasma mirror system was installed on the 1 PW laser beamline of Shanghai Superintense Ultrafast Laser Facility (SULF) for enhancing the temporal contrast of the laser pulse. About 2 orders of magnitude improvement on pulse contrast was measured on picosecond and nanosecond time scales. The experiments show that high-contrast laser pulses can significantly improve the cutoff energy and quantity of proton beams. Then different target distributions are assumed in particles in cell simulations, which can qualitatively assume the expansion of nanometer-scale foil. The high-contrast laser enables the SULF-1PW beamline to generally be of benefit for many potential applications.

High-performance 86 μJ, 11.2 fs pulses with a spectrum range of 800–1050 nm are generated based on 1030 nm, 190 fs Yb femtosecond pulses by using multi-plate-based spectral broadening and filtering. Taking advantage of single beam configuration, the obtained pulses have excellent power and spectral stabilities. Since the output spectrum is obtained by spectrally filtering the broadened components, the temporal contrast of the output pulses is enhanced by at least four orders of magnitude. Together with the robust and simple setup, the proposed method is expected to be a competitive option for the generation of seed pulses for 10s–100s petawatt lasers.

A multistep pulse compressor (MPC) based on a single-pass single-grating pair (SSGP) is proposed to simplify the entire multi-petawatt (PW) compressor. Only one grating pair with relatively long perpendicular distance is used to generate the same amount of spectral chirp compared with a four-grating main compressor. As SSGP compressor induces the largest spatial chirp, it can introduce the best beam-smoothing effect to the laser beam on the last grating. When considering the diffraction loss of only two gratings, the total compression efficiency of the SSGP compressor is even larger than that of a four-grating main compressor. Furthermore, the wavefront aberration induced by the SSGP compressor can be better compensated by using deformable mirrors; however, it is difficult or complicated to be well compensated in a four-grating compressor. Approximately 50–100 PW laser pulses can be obtained using this SSGP-based multistage-smoothing MPC with a single laser beam.

We demonstrate an ultra-broadband high temporal contrast infrared laser source based on cascaded optical parametric amplification, hollow-core fiber (HCF) and second harmonic generation processes. In this setup, the spectrum of an approximately 1.8 μm laser pulse has near 1 μm full bandwidth by employing an argon gas-filled HCF. Subsequently, after frequency doubling with cascaded crystals and dispersion compensation by a fused silica wedge pair, 9.6 fs (~3 cycles) and 150 μJ pulses centered at 910 nm with full bandwidth of over 300 nm can be generated. The energy stability of the output laser pulse is excellent with 0.8% (root mean square) over 20 min, and the temporal contrast is >10¹² at –10 ps before the main pulse. The excellent temporal and spatial characteristics and stability make this laser able to be used as a good seed source for ultra-intense and ultrafast laser systems.

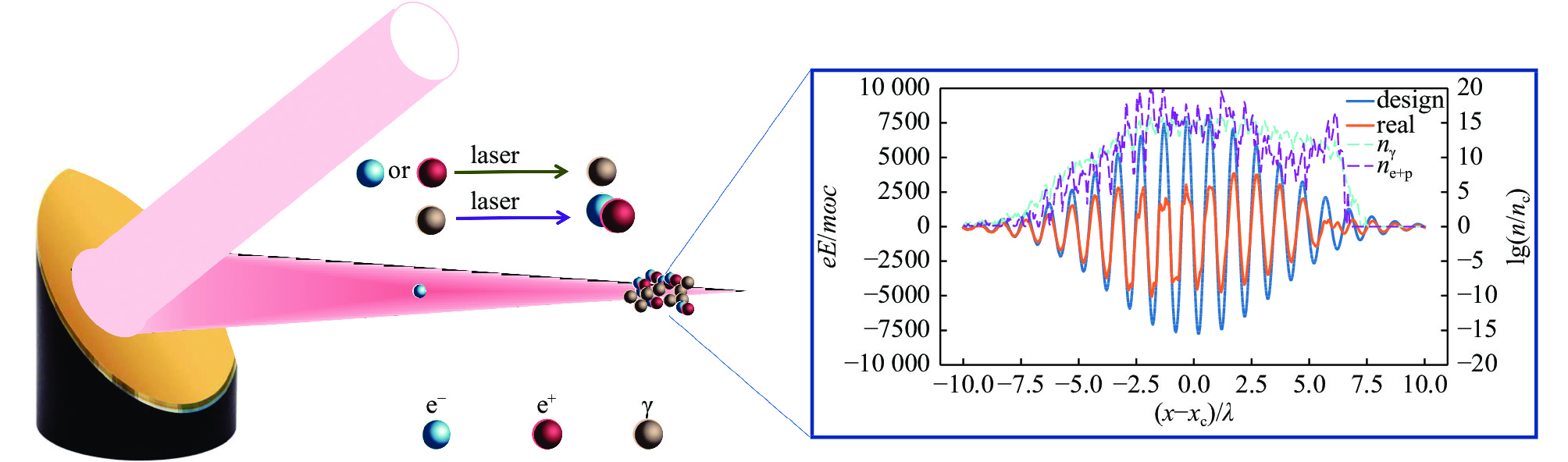

人类在实验室可实现的激光强度极限是强场量子电动力学（QED）的重要问题。在非理想真空条件下，极端超强激光与残留的电子相互作用触发伽马光子辐射与正负电子对产生的QED级联效应，从而显著消耗激光能量，大幅降低可实现的激光峰值强度。考虑到QED级联效应与激光偏振、焦斑尺寸、脉宽长度有着密切的关系，基于囊括QED过程的粒子网格模拟方法（Particle-in-cell, PIC）对上述参数的效应进行分析，同时构建了激光场演化的自洽方程来进行解释，二者结果基本保持一致，获得的强度极限在考虑的参数范围内为10²⁶～10²⁷ W/cm⁻²。结果表明，同等情形下，圆偏振激光可激发更强的QED级联，使得激光强度上限略低于线偏振。此外，紧聚焦激光由于QED级联发生的时空间尺度更小，从而激光的吸收效应被显著抑制，进而可以实现更强的聚焦强度。对于更长脉宽的激光，由于正负电子对吸收的能量区域更加弥散，使得可实现的激光强度上限阈值有所提升。但对于超短脉宽情形（如单周期），由于QED级联的种子源电子束不能很好地被约束在激光区域，理论分析耗散的激光能量偏高。此外，在高真空度的情形下，残余电子的随机性也会对可实现激光强度产生一定的影响。研究结果可为后续开展极端强场QED实验和数100 PW级超强超短激光装置建设提供指导。
