Author Affiliations
Abstract
1 Center for Advanced Laser Technology, Hebei University of Technology, Tianjin, China
2 Hebei Key Laboratory of Advanced Laser Technology and Equipment, Tianjin, China
3 MQ Photonics Research Centre, Department of Physics and Astronomy, Macquarie University, Sydney, Australia
This study analyzes the linewidth narrowing characteristics of free-space-running Brillouin lasers and investigates the approaches to achieve linewidth compression and power enhancement simultaneously. The results show that the Stokes linewidth behavior in a free-space-running Brillouin laser cavity is determined by the phase diffusion of the pump and the technical noise of the system. Experimentally, a Stokes light output with a power of 22.5 W and a linewidth of 3.2 kHz was obtained at a coupling mirror reflectivity of 96%, which is nearly 2.5 times compressed compared with the linewidth of the pump (7.36 kHz). In addition, the theorical analysis shows that at a pump power of 60 W and a coupling mirror reflectivity of 96%, a Stokes output with a linewidth of 1.6 kHz and up to 80% optical conversion efficiency can be achieved by reducing the insertion loss of the intracavity. This study provides a promising technical route to achieve high-power ultra-narrow linewidth special wavelength laser radiations.
high power narrow linewidth single-frequency laser stimulated Brillouin scattering High Power Laser Science and Engineering
2023, 11(4): 04000e47
强激光与粒子束
2023, 35(4): 041006
1 河北工业大学电子信息工程学院先进激光技术研究中心,天津 300401
2 河北省先进激光技术与装备重点实验室,天津 300401
3 哈尔滨工业大学可调谐激光技术国家级重点实验室,黑龙江 哈尔滨 150080

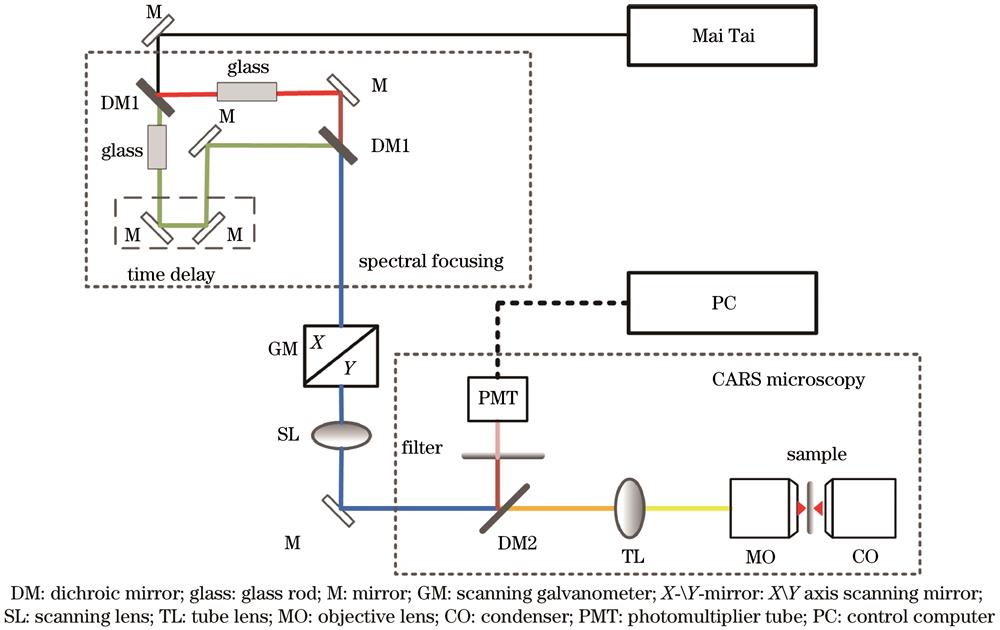

利用单个飞秒振荡器为激发光源搭建了光谱聚焦相干反斯托克斯拉曼散射(CARS)显微成像系统,使用二向色镜获得了泵浦光与斯托克斯光,开展了聚苯乙烯样品低指纹区的光谱聚焦CARS二维与三维显微成像研究。在光谱聚焦CARS二维成像研究中,通过改变泵浦-斯托克斯的延迟时间,获得了随延迟时间变化的光谱聚焦CARS信号强度谱,通过与聚苯乙烯拉曼光谱的对比,分析了在改变泵浦-斯托克斯的延迟时间过程中被激发的拉曼振动的切换情况。同时,在固定的拉曼振动模式,通过对聚苯乙烯样品进行断层扫描,实现了对聚苯乙烯样品的三维CARS成像。
光谱聚焦 拉曼振动 CARS信号 三维成像 spectral focusing Raman vibration CARS signal 3D imaging 激光与光电子学进展
2022, 59(24): 2418001
光学学报
2022, 42(19): 1914003
1 河北工业大学电子信息工程学院先进激光技术研究中心,天津 300401
2 河北工业大学河北省先进激光技术与装备重点实验室,天津 300401
3 哈尔滨工业大学可调谐激光技术国家重点实验室,黑龙江 哈尔滨 150080

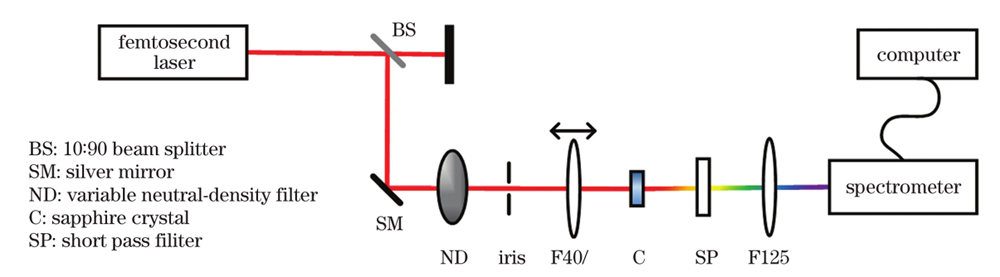

利用中心波长为800 nm、脉冲宽度为35 fs的飞秒激光脉冲开展了以蓝宝石晶体为介质的超连续白光光谱特性研究,通过对比不同入射脉冲能量下焦距为40 mm的球面透镜产生的白光光谱发现:随着入射脉冲能量的增强,白光光谱向蓝边方向展宽,当能量增加到210 nJ时,光谱范围不再变化。对比焦距为40 mm的球面透镜和消色差透镜产生的白光光谱发现:消色差透镜产生的光谱的整体强度小于球面透镜,且光谱有一定蓝移,蓝移波长可达450 nm。采用Zemax软件对两种透镜产生的焦斑进行仿真,比较了两种透镜产生的焦斑的大小和能量,并分析了蓝移现象产生的原因。同时,本研究对比了焦距为40 mm和100 mm球面透镜、消色差透镜产生的白光光谱的范围和稳定性,结果表明,焦距为40 mm的透镜产生的白光光谱的稳定性较好,光谱范围较宽,约为450~700 nm。罗丹明B的瞬态吸收实验结果表明,使用焦距为40 mm的消色差透镜时,罗丹明B的瞬态吸收信号最为明显,信噪比最高。本实验表明,针对不同的样品特性,可以通过选择不同的透镜来优化瞬态吸收实验结果。
非线性光学 飞秒激光 超连续白光 瞬态吸收 nonlinear optics femtosecond laser white-light continuum transient absorption 中国激光
2022, 49(11): 1111003
激光与光电子学进展
2022, 59(10): 1018001
1 河北工业大学先进激光技术研究中心,天津 300401
2 河北省先进激光技术与装备重点实验室,天津 300401
3 麦考瑞大学物理与天文系光子研究中心,悉尼 2109, 澳大利亚
光学频率梳作为精确的光谱工具,在光学原子钟、激光频率计量、精密光谱测量等领域具有广泛的应用。提出了一种基于空间光腔的布里渊光学频率梳振荡器,利用金刚石晶体作为增益介质,在1 μm波长双通泵浦的拉曼腔中有效激发了受激布里渊散射和四波混频效应,获得了中心波长为1.2 μm、稳态功率为101 W、梳齿间隔为71 GHz的布里渊频率梳输出,对应的最高阶次为23、带宽达1.55 THz。该功率为已知布里渊频率梳的最高功率,相较于微腔结构提升了4个数量级以上。所提方案为实现具有特殊波长的连续波高功率光学频率梳提供了新的技术路径。
激光器 频率梳 布里渊散射 四波混频 空间光腔 lasers frequency comb Brillouin scattering four-wave mixing free-space optical cavity
强激光与粒子束
2021, 33(5): 051001

Author Affiliations
Abstract
1 National Key Laboratory of Science and Technology on Tunable Laser, Harbin Institute of Technology, Harbin 150080, China
2 Laser Fusion Research Center, China Academy of Engineering Physics, Mianyang 621900, China
3 School of Electronic and Information Engineering, Hebei University of Technology, Tianjin 300401, China

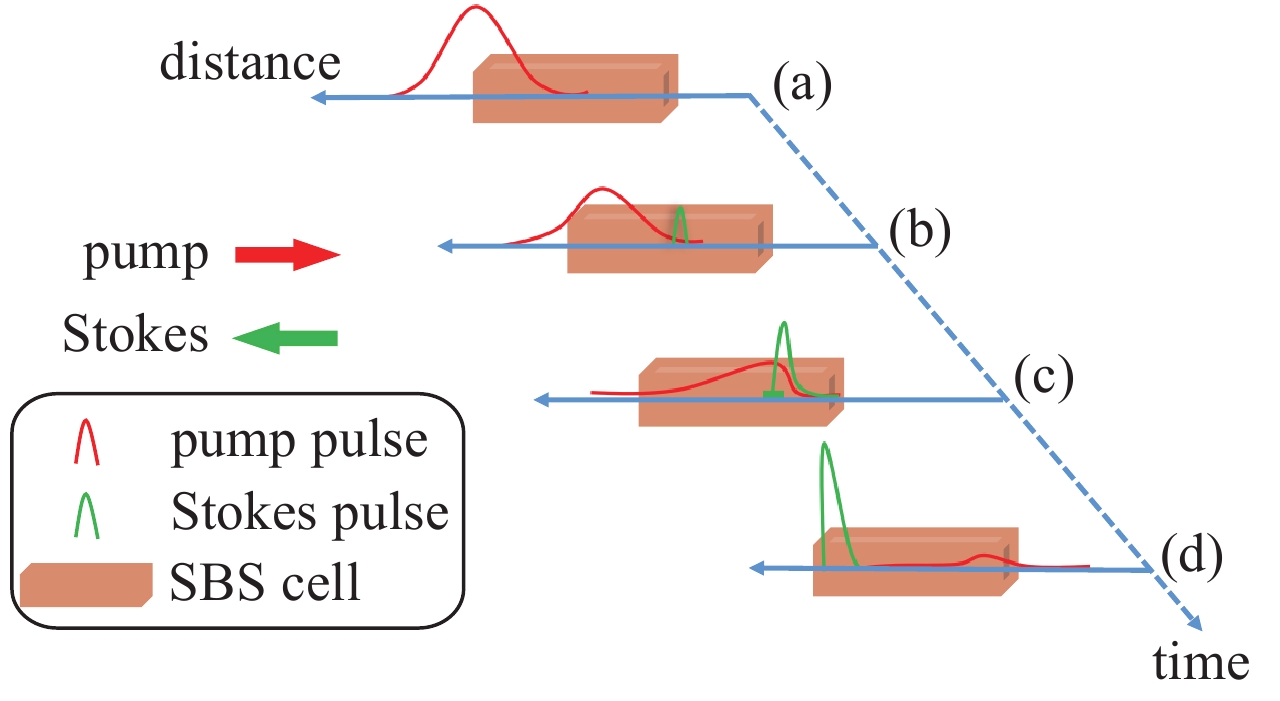

Laser pulses of 200 ps with extremely high intensities and high energies are sufficient to satisfy the demand of shock ignition, which is an alternative path to ignition in inertial confinement fusion (ICF). This paper reports a type of Brillouin scheme to obtain high-intensity 200-ps laser pulses, where the pulse durations are a challenge for conventional pulsed laser amplification systems. In the amplification process, excited Brillouin acoustic waves fulfill the nonlinear optical effect through which the high energy of a long pump pulse is entirely transferred to a 200-ps laser pulse. This method was introduced and achieved within the SG-III prototype system in China. Compared favorably with the intensity of $2~\text{GW}/\text{cm}^{2}$ in existing ICF laser drivers, a 6.96-$\text{GW}/\text{cm}^{2}$ pulse with a width of 170 ps was obtained in our experiment. The practical scalability of the results to larger ICF laser drivers is discussed.
frequency matching high-intensity laser pulse stimulated Brillouin scattering High Power Laser Science and Engineering
2019, 7(3): 03000e41
