Author Affiliations
Abstract
1 Terahertz Technology Innovation Research Institute, Terahertz Spectrum and Imaging Technology Cooperative Innovation Center, Shanghai Key Laboratory of Modern Optical System, University of Shanghai for Science and Technology, Shanghai 200093, China
2 Shanghai Institute of Optics and Fine Mechanics, Chinese Academy of Sciences, Shanghai 201800, China
3 Tera Aurora Electro-optics Technology Co., Ltd., Shanghai 200093, China
4 Shanghai Institute of Intelligent Science and Technology, Tongji University, Shanghai 200092, China

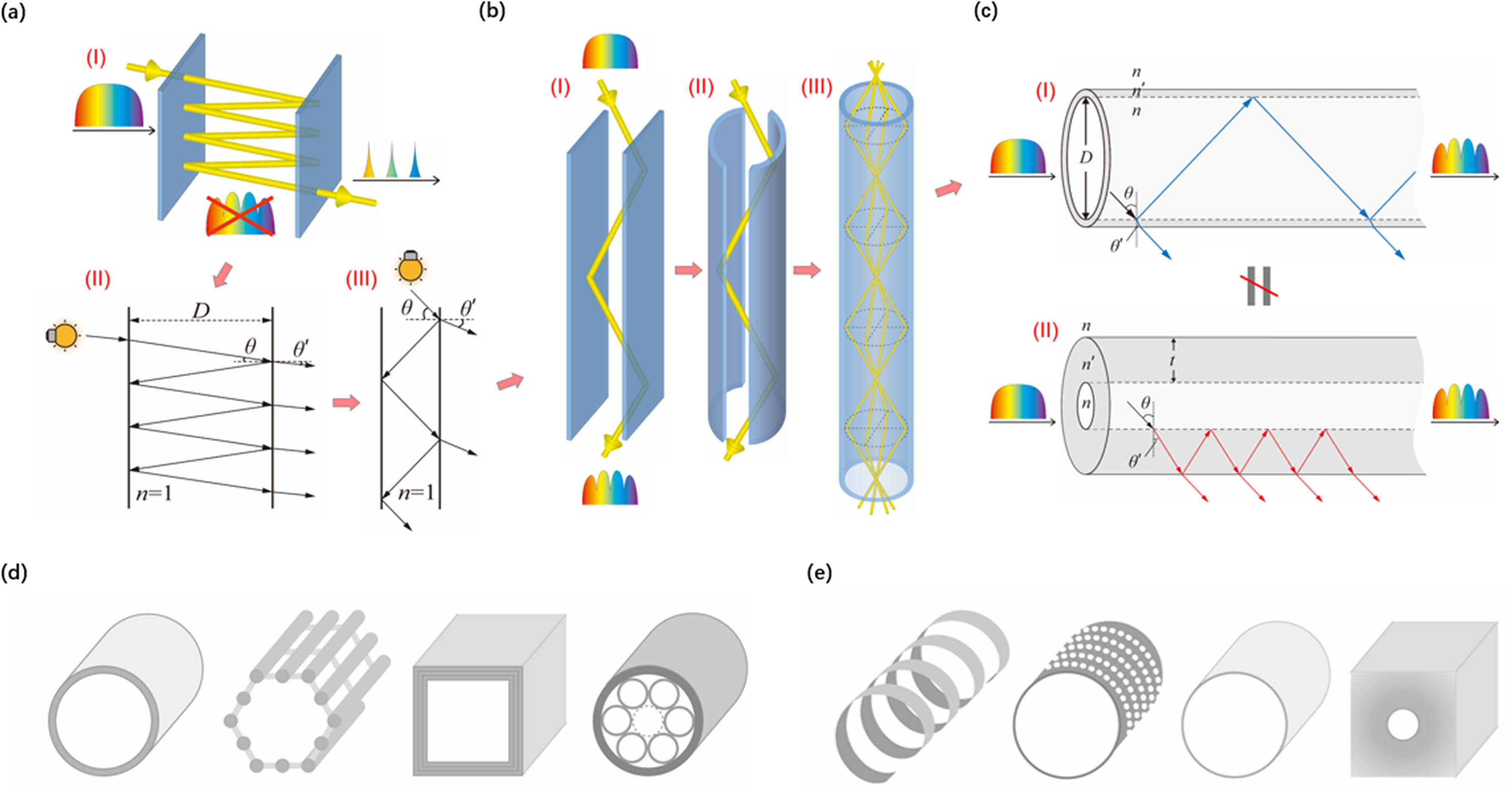

This work presents a brief review of our recent research on an antiresonant mechanism named core antiresonant reflection (CARR), which leads to a broadband terahertz (THz) spectrum output with periodic dips at resonant frequencies after its transmission along a hollow-core tubular structure (e.g., a paper tube). The CARR theory relies only on parameters of the tube core (e.g., the inner diameter) rather than the cladding, thus being distinct from existing principles such as the traditional antiresonant reflection inside optical waveguides (ARROWs). We demonstrate that diverse tubular structures, including cylindrical, polyhedral, spiral, meshy, and notched hollow tubes with either transparent or opaque cladding materials, as well as a thick-walled hole, could indeed become CARR-type resonators. Based on this CARR effect, we also perform various applications, such as pressure sensing with paper-folded THz cavities, force/magnetism-driven chiral polarization modulations, and single-pulse measurements of the angular dispersion of THz beams. In future studies, the proposed CARR method promises to support breakthroughs in multiple fields by means of being extended to more kinds of tubular entities for enhancing their interactions with light waves in an antiresonance manner.
antiresonance core cladding tubular structure application Chinese Optics Letters
2023, 21(11): 110005
Author Affiliations
Abstract
School of Electronics and Information Engineering, Harbin Institute of Technology, Shenzhen 518055, China

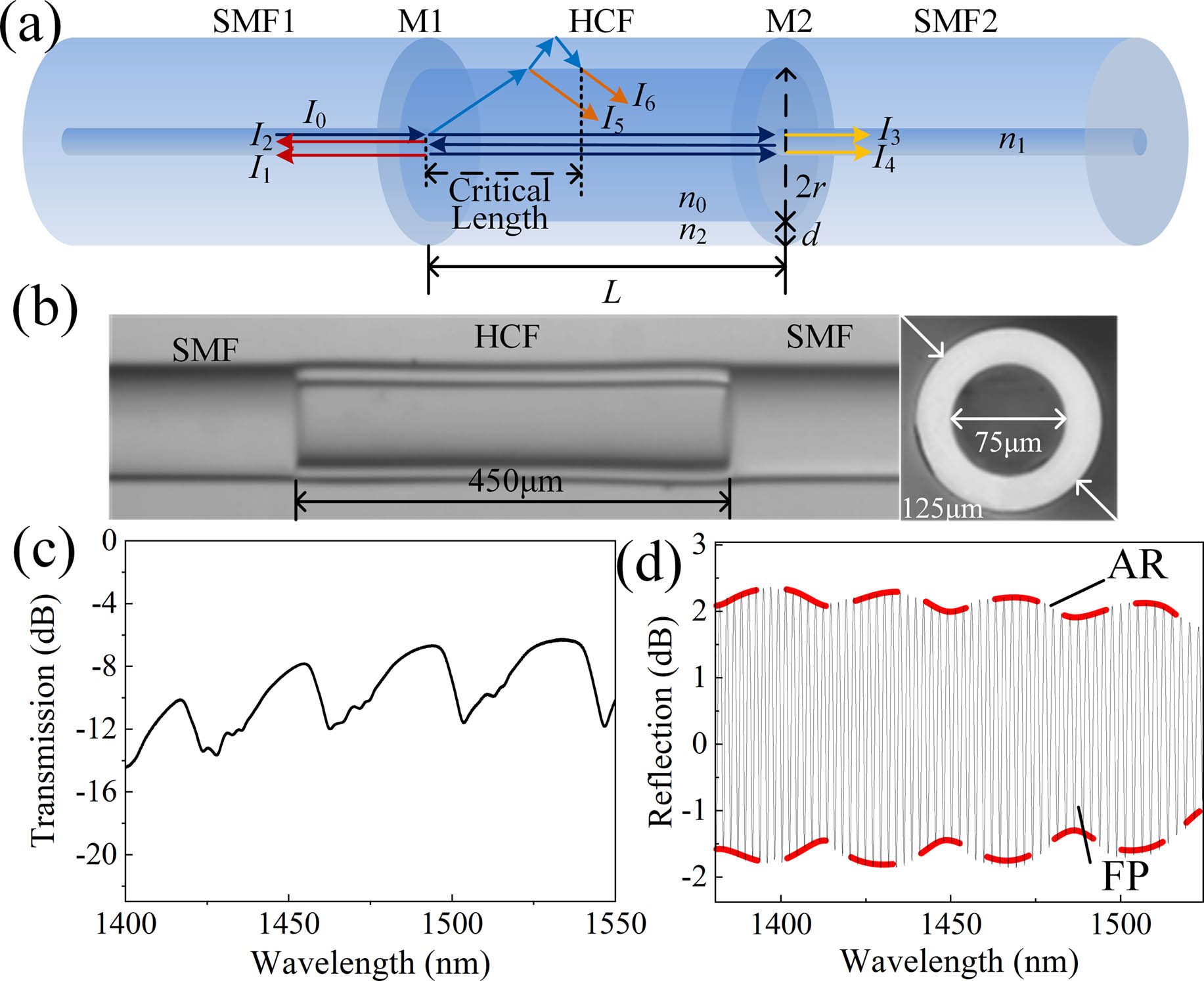

A fiber-optic sensor for the simultaneous measurement of strain and temperature is proposed and experimentally demonstrated based on Fabry–Pérot (FP) interference and the antiresonance (AR) mechanism. The sensor was implemented using a single-mode fiber (SMF)–hollow-core fiber–SMF structure. A temperature sensitivity of 21.11 pm/°C was achieved by tracing the troughs of the envelope caused by the AR mechanism, and a strain sensitivity of 2 pm/με was achieved by detecting the fine fringes caused by the FP cavity. The results indicate that the dual-parameter sensor is stable and reliable.
fiber-optic sensor Fabry–Pérot interference antiresonance Chinese Optics Letters
2021, 19(4): 041201
