We propose and experimentally demonstrate a high quality (Q)-factor all-silicon bound state in the continuum (BIC) metasurface with an imperforated air-hole array. The metasurface supports two polarization-insensitive BICs originated from guided mode resonances (GMRs) in the frequency range of 0.4 to 0.6 THz, and the measured Q-factors of the two GMRs are as high as 334 and 152, respectively. In addition, the influence of the thickness of the silicon substrate on the two resonances is analyzed in detail. The proposed all-silicon THz metasurface has great potential in the design and application of high-Q metasurfaces.

提出了一种由圆柱纳米孔阵列组成的全介质超表面折射率传感器，通过平移纳米孔引入结构单元的面内对称性破坏，非对称的介质纳米孔阵列可以实现由电四极子（EQ）激发的具有高品质因数（Q值）的准连续域束缚态（BIC）共振模式。从理论上分析了结构非对称参数与Fano共振的辐射Q值之间的关系，证明了该模式为对称保护BIC模式，并进行近场分析和多极分解，证明了EQ在共振模式中占主导作用，同时分析了结构参数对Fano共振的影响，并计算了介质折射率的光谱响应，得到结构的灵敏度可达512 nm/RIU（折射率单元）、Q值为2568.7、优质因数（FOM）为760，所提结构在近红外范围内的高灵敏生物传感器领域具有潜在的应用价值。

The emergence of two dimensional (2D) materials has opened new possibilities for exhibiting second harmonic generation (SHG) at the nanoscale, due to their remarkable optical response related to stable excitons at room temperature. However, the ultimate atomic-scale interaction length with light makes the SHG of Transition Metal Dichalcogenides (TMDs) monolayers naturally weak. Here, we propose coupling a monolayer of TMDs with a photonic grating slab that works with doubly resonant bound states in the continuum (BIC). The BIC slabs are designed to exhibit a pair of BICs, resonant with both the fundamental wave (FW) and the second harmonic wave (SHW). Firstly, the spatial mode matching can be fulfilled by tilting FW's incident angle. We theoretically demonstrate that this strategy leads to more than four orders of magnitude enhancement of SHG efficiency than a sole monolayer of TMDs, under a pump light intensity of 0.1 GW/cm². Moreover, we demonstrate that patterning the TMDs monolayer can further enhance the spatial overlap coefficient, which leads to an extra three orders of magnitude enhancement of SHG efficiency. These results demonstrate remarkable possibilities for enhancing SHG with nonlinear 2D materials, opening many opportunities for chip-based light sources, nanolasers, imaging, and biochemical sensing. The emergence of two dimensional (2D) materials has opened new possibilities for exhibiting second harmonic generation (SHG) at the nanoscale, due to their remarkable optical response related to stable excitons at room temperature. However, the ultimate atomic-scale interaction length with light makes the SHG of Transition Metal Dichalcogenides (TMDs) monolayers naturally weak. Here, we propose coupling a monolayer of TMDs with a photonic grating slab that works with doubly resonant bound states in the continuum (BIC). The BIC slabs are designed to exhibit a pair of BICs, resonant with both the fundamental wave (FW) and the second harmonic wave (SHW). Firstly, the spatial mode matching can be fulfilled by tilting FW's incident angle. We theoretically demonstrate that this strategy leads to more than four orders of magnitude enhancement of SHG efficiency than a sole monolayer of TMDs, under a pump light intensity of 0.1 GW/cm². Moreover, we demonstrate that patterning the TMDs monolayer can further enhance the spatial overlap coefficient, which leads to an extra three orders of magnitude enhancement of SHG efficiency. These results demonstrate remarkable possibilities for enhancing SHG with nonlinear 2D materials, opening many opportunities for chip-based light sources, nanolasers, imaging, and biochemical sensing.

设计了一种由连续域束缚态控制的高灵敏度太赫兹折射率传感器。该传感器由全介质光栅构成，通过平移打破结构的对称性，可以将共振转变为高品质因子（Q因子）泄漏模共振，且线宽极窄腔模式对周围介质的折射率变化非常敏感。利用有限元方法，数值模拟了具有不同非对称参数、光栅厚度、光栅宽度以及折射率分析物的透射光谱。结果表明，该光栅超表面的Q因子达到12620，标准灵敏度为31395 nm/RIU，FOM（Figure of merit）为1000，在太赫兹范围内的高灵敏光子传感器领域具有潜在的应用。

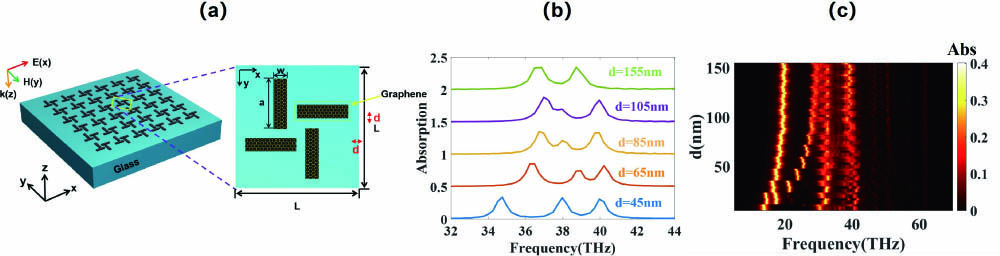

Plasmonics could provide compact and powerful solutions for manipulating light in deep-subwavelength dimensions, which is promising for a great range of nanophotonic technologies such as plasmonic rulers and sensors. However, the effective area of enhanced localized field induced by surface plasmon polaritons is typically restricted to the structural boundaries. In this work, we propose a method to generate high quality-factor extended electromagnetic fields via hybridizing the super-radiant state and the quasi bound state in the continuum of graphene metasurfaces. The coupling interaction involved operates as a three-level system with multiple sharp resonances immune to the polarization, which holds great promise for developing nanodevices with high sensing capacity in two dimensions.

High-index dielectric resonators support different types of resonant modes. However, it is challenging to achieve a high-Q factor in a single dielectric nanocavity due to the non-Hermitian property of the open system. We present a universal approach of finding out a series of high-Q resonant modes in a single nonspherical dielectric cavity with a rectangular cross section by exploring the quasi bound-state-in-the-continuum (QBIC). Unlike conventional methods relying on heavy brutal force computations (i.e., frequency scanning by the finite difference time domain method), our approach is built upon Mie mode engineering, through which many high-Q modes can be easily achieved by constructing avoid-crossing (or crossing) of the eigenvalue for pair-leaky modes. The calculated Q-factor of mode TE(5,7) can be up to Q_theory = 2.3 × 10⁴ for a freestanding square nanowire (NW) (n = 4), which is 64 times larger than the highest Q-factor (Q_theory ≈ 360) reported so far in a single Si disk. Such high-Q modes can be attributed to suppressed radiation in the corresponding eigenchannels and simultaneously quenched electric (magnetic) field at momentum space. As a proof of concept, we experimentally demonstrate the emergence of the high-Q resonant modes [Q ≈ 211 for mode TE(3,4), Q ≈ 380 for mode TE(3,5), and Q ≈ 294 for mode TM(3,5)] in the scattering spectrum of a single silicon NW.
