激光与光电子学进展, 2020, 57 (10): 101013, 网络出版: 2020-05-08

基于一维CNN的碳纤维复合材料缺陷类型判别 下载: 1263次

Classification of Carbon Fiber Reinforced Polymer Defects Based on One-Dimensional CNN
作者单位
中国民航大学电子信息与自动化学院, 天津 300300
摘要

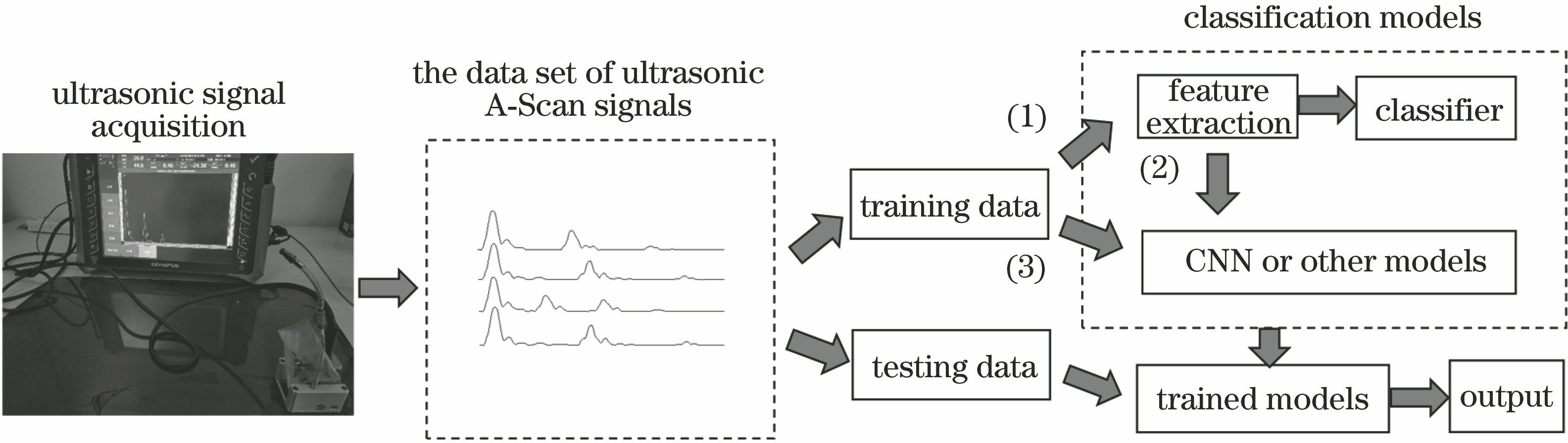

针对碳纤维复合材料(CFRP)的缺陷类型自动判别,提出一种超声一维卷积神经网络(U-1DCNN),结合贝叶斯优化方法进行超参数优选,通过自动提取超声A-Scan信号特征,实现分层、气孔、无缺陷三种类型自动区分。首先采集超声A-Scan信号构建数据集,然后利用多卷积块同时进行特征提取,以增强提取特征的多样性,并将一维残差单元堆叠连接,在进一步提取特征的同时简化网络的训练,利用贝叶斯优化算法优选网络的学习率和随机梯度下降的动量参数,最终实现了A-Scan信号与缺陷类型的非线性映射。实验结果表明,U-1DCNN可通过自动提取特征实现CFRP的缺陷类型识别,准确率为99.50%,并且较二维卷积神经网络方法识别速度更快,可辅助缺陷检测结果判断。
Abstract
Aim

ing at classification of carbon fiber reinforced polymer (CFRP) defect types, an ultrasonic one-dimensional convolutional neural network (U-1DCNN) is proposed and the Bayesian optimization algorithm is used to optimize hyperparameters. By automatically extracting the features of ultrasonic A-Scan signals, three defect types, i.e., delamination, gas cavity, and non-defect, are automatically distinguished. First, a dataset is constructed by collecting ultrasonic A-Scan signals. Then, multi-convolutional blocks are used to simultaneously extract as well as enhance the diversity of extracted features. Subsequently, one-dimensional residual units are stacked and connected, simplifying the training of the network while further extracting the features. The learning rate and momentum parameter of stochastic gradient descent of the network are optimized by Bayesian optimization algorithm. Finally, nonlinear mapping of the A-Scan signals and defects is realized. Experiment results show that U-1DCNN can recognize CFRP defects by automatically extracting features, with the accuracy reaching 99.50%.The recognition speed of U-1DCNN is faster than the two-dimensional CNN method, which is advantageous for defect detection.

詹湘琳, 赵婉婷. 基于一维CNN的碳纤维复合材料缺陷类型判别[J]. 激光与光电子学进展, 2020, 57(10): 101013. Xianglin Zhan, Wanting Zhao. Classification of Carbon Fiber Reinforced Polymer Defects Based on One-Dimensional CNN[J]. Laser & Optoelectronics Progress, 2020, 57(10): 101013.

本文已被 2 篇论文引用
被引统计数据来源于中国光学期刊网
引用该论文: TXT   |   EndNote
