0 Introduction

Surface Plasmons (SPs) is an electromagnetic wave formed by the interaction of free electrons and photons in a metal surface region^[1-3]. It is able to break through the traditional optical diffraction limits and has a strong local field enhancement. SPs is very sensitive to the shape and size of the structure, the refractive index of the environment and the polarization direction of the excitation light^[4-6]. These properties are of great significance for spectral regulation. For Fano resonance in the SPs system, the radiation attenuation is effectively suppressed. The energy of incident light field can be better localized on the surface of metal nanostructure, thus obtaining more fine spectrum and larger local electric field enhancement^[7-8]. These characteristics make Fano resonance have a huge application prospect in biosensing^[9-10], surface enhanced Raman spectroscopy and micro-nano optics^[11-12].

Fano resonance can be generated by the interference between a bright mode (superradiant) and a dark mode (subradiant). The bright mode has a large net dipole moment, which has a large radiation damping and a wide linewidth in the spectrum. The bright mode can be excited by incident light directly. The net mode dipole moment of the dark mode is almost zero, so it has a small radiation damping and presents a narrower linewidth in the spectrum^[13]. The dark mode can't be excited by incident light directly, which can be excited by near-field coupling or symmetry breaking^[14]. The Fano resonance line type is asymmetric and sharp^[15], which is very sensitive to the change of external environment refractive index and structural parameters. Because of these characteristic, Fano resonance has potential application value in the field of high sensitivity sensors^[16]. Single Fano resonance has been studied extensively. At present, multiple Fano resonances received much attention for it can modulate spectrum at multiple wavebands. KHAN A D et al. reported multiple Fano-like resonances are induced by the interference between bright and dark plasmon modes in three-layered bimetallic nanoshell dimer^[17]. In addition, KHAN A D's team also investigated multiple plasmonic Fano resonances, which can be induced by the modes coupling based on the split nano-ring structure^[18]. LIU Shao-ding et al. demonstrated multiple Fano resonances can be achieved in the plasmonic heptamer clusters, which can be switched on and off by adjusting the polarization direction^[19]. LI Jing et al. reported multiple Fano resonances and the dark multiple modes are excited in the two ring/disk cavities nanostructure^[20].

The study of magnetic mode originated from its critical role in the study of negative refractive materials^[21-23]. Magnetic mode can be applied to sensors, artificial magnetism and magnetic plasma waveguide^[24-26]. However, the "magnetic saturation" of natural materials hinders the realization of magnetic mode^[27]. In fact, magnetic Fano resonance can be generated by the inducted displacement current loop in the SPs system. Therefore, the displacement current loop is critical to the generation of magnetic Fano resonance^[28-32]. Many structures have been designed to study magnetic Fano resonance, such as dielectric polymer, metal polymer, metal and dielectric composite structure^{[31, 33-35]}. SHSFIEI F et al. demonstrated magnetic Fano resonance is induced by the strong magnetic and electric responses in a subwavelength plasmonic metamolecule consisting of four closely spaced gold nanoparticles^[28]. BAO Yan-jun et al. investigated a purely magnetic Fano resonance which can be realized at optical frequency with Au split ring hexamer nanostructure with an azimuthally polarized incident light^[34]. CHERQUI C et al. reported all-magnetic Fano can be induced by the interference between the bright and dark magnetic modes based on plasmon oligomer dimers^[32]. The radiation loss of magnetic Fano resonance is small, which can be applied to negative refractive index metamaterials and low loss magnetic surface plasmon waveguide^[36-37]. Although many structures about multiple Fano resonances have been proposed, the design of a novel structure that can generate and regulate multiple magnetic Fano resonances is still a research hotspot.

In this paper, a nanostructure consisting of a Single-split Ring and a Double-split Disk (SSR-DSD) is designed and studied. Magnetic modes and magnetic Fano resonance are excited when the structure surface is illuminated by the plane electromagnetic wave. High order magnetic modes and multiple magnetic Fano resonances can be generated when the double-split disk, the cavity and the gap of the single-split ring offset together along the negative x-axis. On the basis of the structure with offset, magnetic modes and magnetic Fano resonance can also be generated in the near-infrared and visible wavelengths by modulating the gap width of the single-split ring and the upper split angle of the double-split disk. At the same time, the maximum sensitivity (S) and Figure of Merit (FOM) of the structure can reach 1 400 nm/RIU and 29.43, respectively^[38-39]. The maximum electric and magnetic field enhancement of the structure are 290.8 and 69.7, respectively. The structure has potential application in ultra-sensitive biosensor and multi-control magnetic Fano switch.

1 Structure model and simulation method

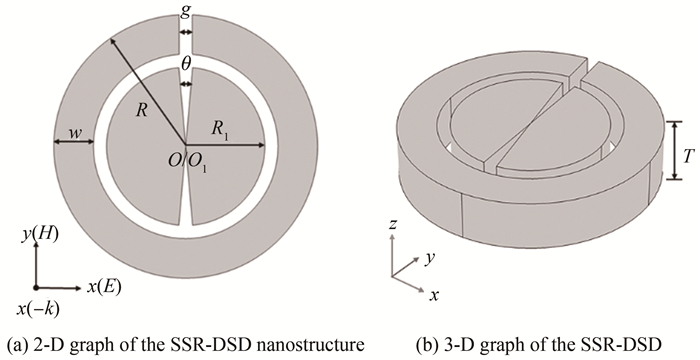

The schematic of the SSR-DSD nanostructure is shown in Fig. 1. The centers of the single-split ring and double-split disk are O and O₁, respectively. R, w and g are the outer radius, width and gap width of the single-split ring. R₁ and θ are the radius and the split angle of the double-split disk. The thickness of the structure is T. The parameters of the structure are R=100 nm, R₁=70 nm, w=30 nm, T=40 nm, g=10 nm and θ=10°, respectively. The pure metal nanostructure is the free-standing and aperiodic structure.

图 1.

Fig. 1. Schematic of the SSR-DSD nanostructure

下载图片 查看所有图片

In the article, silver (Ag) is chosen as the material of metallic elements because it has the low loss properties^[1]. The refractive index data of silver used in our numerical simulation are obtained from Johnson and Christy (JC)^[40]. An plane electromagnetic wave incidents along negative z-direction and polarizes along x-axis. The Comsol Multiphysics is used to do all the calculations, which is a multiphysics simulation software based on the finite element method^[41]. The structure is surrounded by a dielectric layer, which is air. In order to eliminate the influence of electromagnetic wave reflection on the boundary, a perfect matching layer is placed outside the air layer. We mainly study the extinction cross section of the SSR-DSD structure, which is defined as the sum of the scattering cross section and the absorption cross section. The scattering cross section is the amount of scattering energy flow through the entire closed outer surface of the nanostructure. Energy loss in a nanostructure is defined as the absorption cross section^[42].

2 Results and discussion

2.1 The spectral properties of the SSR-DSD nanostructure

Fig. 2(a) shows the extinction cross section of the SSR-DSD nanostructure. There are four peaks and two dips in the spectrum when the structure surface is illuminated by the plane electromagnetic wave. From left to right, the resonance peaks are named M₁, M₂, M₃, M₄, and the dips are named m₁ and m₂. To further explore the mechanism of these peaks and dips. Fig. 2(b)~(i) show the charge distributions, the current density and magnetic field enhancement distributions of mode M₁, M₂, M₃ and dip m₂. The red and blue colors represent the positive and negative charge, respectively. The color bars represent the amplitude of |H|/|H₀|, here H represents the local magnetic field, and H₀ represents the background magnetic field. As shown in Fig. 2(b), M₁ is an octupole-hexadecapole mode, which is a dark mode. In Fig. 2(f), M₁ has two magnetic hot spots and two opposite current loops, so M₁ is a high-order dark magnetic mode. Fig. 2(c) shows that mode M₂ is a quadrupole-octupole mode. According to the charge distribution, the net dipole moment of mode M₂ is almost zero and the line width is narrow, so M₂ is a dark mode. A magnetic hot spot and a clockwise current loop can be observed in Fig. 2(g). M₂ is defined as a dark magnetic mode. Mode M₃ is a quadrupole-quadruple mode, which has a larger net dipole moment and a wider linewidth, so mode M₃ is a bright mode. Fig. 2(i) shows that the mode M₃ has a magnetic hot spot and a counterclockwise current loop, so m₃ is a magnetic mode. According to the formation theory of Fano resonance, dip m₂ is generated by the destructive interference between dark magnetic mode M₂ and bright magnetic mode M₃. A magnetic hot spot and a counterclockwise current loop are observed in Fig. 2(h), so dip m₂ is a magnetic Fano resonance. However, dip m₁ is not Fano resonance because both M₁ and M₂ are dark modes and the coupling distance is large.

图 2.

Fig. 2. The extinction cross section, the charge distribution, the current density and magnetic field enhancement distribution of the SSR-DSD structure

下载图片 查看所有图片

2.2 Breaking the symmetry of the structure

High order magnetic mode and new magnetic Fano resonance can be achieved by further breaking the structure symmetry. Fig. 3(a) shows the extinction cross section of the nanostructure when the double-split disk, the cavity and the gap of the single-split ring offset together along the negative x-axis by 4.5 nm, 9 nm, 13.5 nm and 18 nm. The offset produce a phase delay, so a new resonance peak M₅ appears at the wavelength of 690 nm. As shown in Fig. 3(b), M₅ is a quadrupole-quadrupole mode, which has a large net dipole moment. Mode M₅ has four magnetic hot spots and adjacent current loops are in opposite directions, so M₅ is defined as a magnetic mode. As the offset increases, the intensity of mode M₅ increases, but the intensity of mode M₂ decreases, because the symmetry of the structure is further broken and the charge distribution is more uneven. As shown in Fig. 3(c) and (e), the magnetic field of M₅ is mainly distributed in the cavity of the structure, while the magnetic field of M₂ is mainly in the center of the double-split disk, so magnetic field enhancement is transferred from the double-split disk to the cavity of the structure.

图 3.

Fig. 3. The extinction cross section, the charge distribution, the current density and magnetic field enhancement distribution of the structure when offset d

下载图片 查看所有图片

Dip m₃ is generated by the interference between dark magnetic mode M₁ and bright magnetic mode M₅. As shown in Fig. 3(d), dip m₃ has four current loops and adjacent loops are in opposite directions, so it is a magnetic Fano resonance. With the increases of the offset, a new resonance peak M₆ appears at the long wavelength of 1 180 nm. In Fig. 3(f) and (g), the magnetic field of M₄ is mainly distributed in the center of the double-split disk, while the magnetic field of M₆ is mainly distributed on both sides of the cavity, so magneticfield enhancement is transferred from the cavity to the double-split disk. There are two magnetic Fano dip (m₂ and m₃) in Fig. 3(a), which is called double magnetic Fano resonances.

2.3 Increasing

the gap width of the single-split ring Surface plasmon resonance is very sensitive to structure parameters, so we further increase the gap width of the single-split ring on the basis of the nanostructure with d=18 nm. As shown in Fig. 4 (a), at the long wavelength, mode M₆ and M₄ are enhanced with the increase of the gap width of the single-split ring. M₄ is a dipole-dipole mode and has a large net dipole moment, which is a bright mode. Fig. 4(c) shows that M₆ is a quadrupole-dipole mode. Dip m₄ is generated by the interference between the bright magnetic mode M₄ and the dark magnetic mode M₆, which has a counterclockwise current loop on the left of the cavity, so dip m₄ is a magnetic Fano resonance. Dips m₂, m₃, and m₄ can be defined as the triple magnetic Fano resonances.

图 4.

Fig. 4. The extinction cross section, the charge distributions, the current density and magnetic field enhancement distribution of the structure when different g

下载图片 查看所有图片

In the case, the split ring is similar to capacitor and inductor in series. The resonance frequency formula can be expressed as

1 $ f=\frac{1}{\sqrt{L C}} $

where f is the resonance frequency, L represents the inductance and C represents the capacitance. C is the capacitance between the two arms of the single-split ring, which is inversely proportional to the distance between the arms. With the increase of the distance between the arms, the capacitance decreases, and the frequency increases, which result in a significant blue shift of magnetic modes M₆ and M₄. It can also be understand that increasing the gap width of the single-split ring, the distribution distance of the charge on the single-split ring becomes shorter, which leads to the enhancement of restoring force and the blue shift of modes M₄, M₆ and dip m₄. Figs. 4(e) and (f) show the dependence of the resonance wavelength and intensity on the gap width of the single-split ring.

In order to explore the sensitivity of Fano resonance to the refractive index of the external environment, we give the extinction spectra with different refractive indexes 1.00, 1.05, 1.10, 1.15 and 1.20. As shown in Fig. 5(a)~(b), peaks M₄, M₆ and dip m₄ all have a significant red shift with the increase of the refractive index. In order to better describe the potential applications of the structure in sensing, the FOM is studied, which is an important parameter to evaluate sensing performance. FOM is defined as

图 5.

Fig. 5. The extinction cross section and the resonance wavelength of the structure with different n

下载图片 查看所有图片

2 $ \mathrm{FOM}=\frac{S}{\mathrm{FWHM}} $

where S is the refractive index sensitivity, and FWHM is the full width at half maximum of the resonance peak. The refractive index sensitivity S can be expressed as

3 $ S=\frac{\delta \lambda}{\delta n} $

where δλ represents the displacement of the resonance peak, and δn is the change of the refractive index. In our strucure, the sensitivity of dip m4 is 1 400 nm/RIU and the maximum FOM value is 29.43, which is on a fairly ideal level. Therefore, the structure has potential application in sensor.

2.4 Increasing the upper split angle of the double-split disk

Here, we further study the extinction characteristics of the structure with offset d=18 nm by increasing the upper split angle of the double-split disk. As shown in Fig. 6(a), a new resonance peak M₇ appears at the short wavelength of the spectrum. In Fig. 6(b), M₇ is a quadrupole-octupole mode, which has a large net dipole moment. Mode M₇ has three magnetic hot spots and three current loops, but the central current loop is opposite to the inter-cavity current loops. Dip m₅ is generated by the interference between the bright magnetic mode M₇ and the dark magnetic mode M₁. Dip m₅ has two magnetic hot spots and two current loops in opposite directions, so m₅ is a magnetic Fano resonance mode. Dips m₂, m₃ and m₅ are called triple magnetic Fano resonances.

图 6.

Fig. 6. The extinction cross section, the charge distribution, the current density and magnetic field enhancement distributions, the resonance wavelength with different θ

下载图片 查看所有图片

In Fig. 6(e), it can be clearly observed that the variation of resonance wavelengths of mode M₇ and m₅ when the upper split angle of the double-split disk increases. By comparing the phenomena generated by the regulation of the single-split ring and the double-split disk, it can be concluded that the regulation of the single-split ring mainly affects the magnetic modes and magnetic Fano resonance in the near-infrared region, while the regulation of the double-split disk mainly affects that of the visible region. Therefore, magnetic mode and magnetic Fano resonance can be obtained in different wavebands according to actual needs. This characteristic of the structure makes it have potential applications in multiple magnetic Fano switch.

3 Conclusion

The nanostructure consisting of a Single-Split Ring and a Double-Split Disk (SSR-DSD) is designed and studied. When the incident light is normal to the structure surface, magnetic Fano resonance can be generated by the interference between a bright magnetic mode and a dark magnetic mode. High order magnetic modes and multiple magnetic Fano resonances can be generated when the double-split disk, the cavity and the gap of the single-split ring offset together along the negative x-axis. On the basis of this structure, magnetic modes and magnetic Fano resonance can also be generated in the near-infrared and visible wavelengths by modulating the gap width of the single-split ring and the upper split angle of the double-split disk. In addition, the maximum sensitivity of the new resonance mode is 1 400 nm/RIU and the maximum FOM is 29.43. The magnetic field enhancement of the structure has also reached 69.7. These excellent optical properties make the SSR-DSD nanostructure have potential applications in ultra-sensitive biosensor, multi-control magnetic Fano switch.
