1 I. INTRODUCTION

Since Tajima and Dawson’s initial proposal of the concept in 1979,1 the concept of laser wakefield acceleration (LWFA) has been considered promising for the shrinking of kilometer-scale conventional accelerators and radiation sources down to room-size machines. A LWFA utilizes a focused short-pulse laser passing through a low-density gas. The laser ionizes the gas and the laser ponderomotive force, which is proportional to the laser intensity gradient, diverts the plasma electrons around the highest intensity regions of the laser pulse, producing nonlinear plasma waves (NPW).2 The plasma electrons form a dense sheath around the quasi-stationary ions and create what has been called the “bubble”3 or “blowout”4 regime. The trajectories of the sheath electrons collapse radially back onto themselves at the back of the bubble. The large space-charge force then pushes some of these electrons forward into the NPW, where they can be accelerated to relativistic velocities by strong acceleration gradients. The LWFA acceleration gradients are roughly three orders of magnitude higher than those obtained using conventional radio-frequency accelerator technology, which explains the great interest in this field of research.

Experiments exploiting the LWFA concept began in the late 1990s5,6 when chirped pulse amplification7 using Ti:Sapphire lasers8 was used to produce intense terawatt-class femtosecond laser pulses.9 The first quasi-monoenergetic electron bunches from an LWFA,10,11 produced in 2004, paved the way for the generation of high-quality12,13 and high energy14–16 electron bunches from these compact lasers.

Due to the nonlinearity of the LWFA process, the injection position and the number of electrons injected into the wakefield depend very strongly on the laser and gas conditions before the interaction. In an LWFA, shot-to-shot beam stability is a serious challenge. Stable electron accelerator performance is a key requirement for the development of viable applications. Small variations in the laser and gas conditions can lead to shot-to-shot fluctuations of the accelerated electron beam properties. Various schemes have been developed to address and control the stability of LWFAs, including ionization injection,17 which increases the charge; fast down-ramp injection,18 which reduces the energy spread and controls the electron energy; and colliding laser beams,19 which control the electron beam energy. The advantages and disadvantages of each scheme will not be discussed here as they are beyond the scope of this work.

As the injection process seems to be the largest source of beam fluctuations, in the present work, we experimentally explore an alternative method to inject electrons into the NPW using nanoparticles. The use of nanowires and nanoparticles has been shown theoretically20,21 and experimentally22 to trigger the injection of electrons into the NPW and increase the charge density, thus providing another possible method for controlling the parameters of the accelerated electron beam. In our experiment, the nanoparticles are generated inside a gas cell through laser ablation of a metal surface and are assumed to be mixed uniformly with the helium gas fed into the gas cell. However, we cannot control when the injection happens due to the random distribution of nanoparticles in the experiment. Combined control over how and where the electron injection happens could be achieved, for example, by using an aerodynamic lens.23 However, developing and integrating such an aerodynamic lens into a gas target would require significant financial and human resources; thus, in this first instance, we focus only on the usefulness of nanoparticle-assisted wakefield acceleration.

2 II. EXPERIMENTAL METHOD

2.1 A. Overview

The experimental setup is shown in Fig. 1.

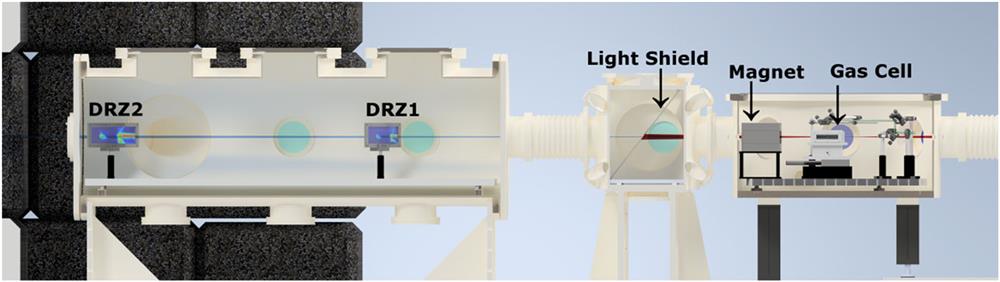

Fig. 1. The electron diagnostics setup, containing a gas cell, a dipole magnet, and two scintillating screens, DRZ1 and DRZ2. The entire setup is placed inside vacuum chambers. The laser and electron bunches propagate from right to left.

下载图片 查看所有图片

An f/50 spherical mirror focuses the intense petawatt-level laser pulses (135 fs pulse duration and 130 J energy) into a 10-cm-long gas cell filled with 99.9% purity helium and doped with aluminum nanoparticles. The leading edge of the laser pulse ionizes the gas, creating a plasma with an electron density of 6 ± 0.5 × 10¹⁷ cm⁻³. Concurrently, the peak of the laser pulse excites an NPW in the bubble regime if the conditions are suitable to accelerate the electrons to high energy. The electron bunches from the LWFA are subsequently deflected by a 10-cm-long dipole magnet with a B-field of 0.79 T and detected on three scintillating screens 1.568, 2.556, and 5.855 m downstream of the exit pinhole of the gas cell. As detailed in Sec. IV, the use of multiple screens allows for cross-checking and an accurate reconstruction of the electron energy spectra independently of the initial pointing of the electron beam. The beam distribution spread measured on the screens includes components from the electron beam energy spread and the electron beam divergence. This beam divergence term thus limits the energy spread resolution of the electron spectrometer because it is not deconvolved due to the lack of simultaneous measurements of the electron beam divergence in the bend plane.

The farthest screen, DRZ3 (shown in Fig. 3), detects electrons with energies above 2 GeV, while the two closer screens, DRZ1 and DRZ2, detect electrons with energies above 0.4 GeV. As detailed in Sec. II D, we use an imaging plate and cross-correlation with the light emitted by the scintillating screens for charge calibration.

2.2 B. The Texas petawatt laser

The Texas Petawatt Laser delivers 130 ± 10 J pulses on target, with 45% of the total energy enclosed within 1/e². The FWHM pulse duration is 135 ± 10 fs with a central wavelength of 1057 nm. An f/50 spherical mirror focuses the laser pulse at the entrance gas cell pinhole onto an FWHM focal spot of ∼55 µm with a peak intensity of 1.2 × 10¹⁹ W/cm². The vacuum Rayleigh length is ∼1.5 cm. The laser temporal contrast of the laser pulse, up to several tens of picoseconds before the main pulse peak, is on the order of 10⁻⁸. The laser parameters are monitored before hitting the spherical mirror, and parameters including the energy, Strehl ratio, and collimation are retrieved for each shot. More details on the TPW laser construction and performance can be found in the published literature.24–26

2.3 C. Gas target and nanoparticle source

A 3D drawing of the gas target27 is shown in Fig. 2. Its design is based on the SlitCell design,28 modified to accommodate a removable metal plate on the bottom of the gas cell for nanoparticle generation. The gas cell has two windows, one on the side and another on the top, which are used for laser alignment and visualization of the interaction region. The gas target is filled with helium via a solenoid valve opening for 2 ms with a delay of 27 ms before the main laser arrives. The gas density is monitored with a pressure transducer (with a measured standard deviation of 0.5 × 10¹⁷ cm⁻³) installed in the middle of the gas cell wall. According to fluid dynamic simulations (not shown here), the gas density profile is uniform inside the gas cell and shows down-ramps outside the pinholes.

Fig. 2. A drawing of the gas cell. A 532-nm laser is focused through the top window onto the surface of a metal plate and generates the nanoparticles through laser ablation. The nanoparticles mix with the helium gas and fill the volume of the gas cell uniformly. The Texas Petawatt Laser enters the gas cell through a 3-mm-diameter pinhole and generates electrons that exit the gas cell through another 3-mm pinhole.

下载图片 查看所有图片

In shots with nanoparticles, an auxiliary laser pulse (532 nm wavelength, 10 ns pulse duration, and 130 mJ energy) is fired 500 µs prior to the main petawatt pulse onto an aluminum plate situated on the bottom of the gas cell near the gas inlet, ablating it and creating the nanoparticles.29,30 Theoretical21 and experimental22 investigations have shown that the amount of charge injected into the bubble can be controlled by changing the nanoparticle’s composition, size, or density. We used an aluminum plate for the work presented here, but most metals can be used as a solid plate or deposited on a support plate. The nanoparticles mixed with the helium gas to fill the gas cell uniformly. The ablation laser fluence was kept constant at 5 J/cm² for the entire experiment. We estimated using Ref. 30 that the mass of ablated aluminum per shot was m = 19 µg. For simplicity, we assume that the entire ablated mass was transformed into nanoparticles with a 10-nm diameter22 uniformly distributed over the entire volume of the gas cell. In this case, ∼10⁶ to 10⁷ nanoparticles could interact with the laser in a cylinder defined by the 50-µm laser spot diameter and the 10-cm gas cell length. While this provides a rough upper-bound estimate for the nanoparticle density, simplifying assumptions in this calculation lead us to believe that the actual nanoparticle density may be lower by a few orders of magnitude.

2.4 D. Electron beam diagnostics: Energy and charge

We deployed a multi-screen electron spectrometer31 for the electron beam energy characterization, as shown in Fig. 3. This arrangement consists of a known static magnetic field and multiple scintillating screens to reconstruct the electron trajectories. It consists of a 0.79 T peak field dipole magnet between A and B and two DRZ1 and DRZ2 scintillating screens placed at C and D, respectively (imaged by two sCMOS cameras). Two Fuji BAS-SR imaging plates placed after the DRZ1 and DRZ2 screens were used for charge calibration of the scintillating screens. An imaging plate named DRZ3 placed at E in Fig. 3 detected electrons with energies higher than 2 GeV. The electron energy retrieving algorithm published by Hojbota et al.32 was used to determine the energy spectrum of the electron beams produced in the laser wakefield experiment.

Fig. 3. A 2D drawing of the setup containing the gas cell and diagnostics. The inset shows the measured magnetic field map of the dipole magnet. The laser and electron bunches propagate from right to left.

下载图片 查看所有图片

We employed the following analysis to mitigate the uncertainty generated by the electron beam angle and offset at the entry point of the dipole magnet.

An electron traveling through a magnetic field oriented perpendicular to its motion is subject to a Lorentz force:dpdt=ddtγmev=−ev×B.

For simplicity, we will consider that the electron propagates solely in the ẑ-direction initially before encountering the magnetic field and that the magnetic field is solely in the ŷ-direction. Then, any deflection imparted onto the electron by the magnetic field is in the x̂-direction. We also assume that any radiation loss due to acceleration in the magnetic field is negligible compared to the electron’s initial energy. Thus, we can approximate the effects of the magnetic field on the electron trajectory asxz=vxz=0vzz+eγmevz∫0zdz′∫0z′dz″Byz″.

For a relativistic electron, the propagation speed is nearly the speed of light, v_z ≈ c. With this approximation, we can substitute in the electron energy ϵ = γm_ec² to obtain the following:xz=β0xz+ecϵ∫0zdz′∫0z′dz″Byz″.

The trajectory of the electron leaving the magnetic field can be determined by measuring the electron positions on two or more scintillating screens positioned after the magnet. The electron deflection is known, while the initial trajectory pointing is unknown. We can recover the energy of the electron by using the measured trajectory and propagating the electron backward through the detector system instead of forward propagating the electron from the source into the detector. In the backward propagation, this trajectory determines β_0x in the equation:β0x=−x2−x1z2−z1=−ΔxΔz.

The energy of the electron producing the trajectory can be determined asϵ=ec−x2+ΔxΔzz2∫0zdz′∫0z′dz″Byz″.

One must also consider the errors in the measurement process. Consider some variation in the measured deflection δx_i. The impact on the energy can be determined asδϵx=∑i∂ϵ∂xi2δxi21/2=ϵ−z2δx1x2z1−x1z22+z1δx2x2z1−x1z221/2,where the ith index corresponds to the ith scintillating screen (see Fig. 4).

Fig. 4. A simplified setup used to calculate the error in the centroid electron energy. The laser and electron bunches propagate from right to left.

下载图片 查看所有图片

For our design, z₁ = 1.702 m and z₂ = 2.686 m, as measured from the end of the gas cell to the intersection point on the scintillating screen. We expect variation in the measurement due to the optical system resolution being of the order of δx₁ = 38 µm and δx₂ = 60 µm. For a ∼6 GeV electron energy, we expect x₁ = 5.700 mm and x₂ = 9.765 mm for the magnet used in this work. This results in δϵ_x/ϵ = 0.111.

Similarly, we can estimate the variation in the energy measurement due to variations in the screen and magnet spacing. For simplicity, we will assume the true magnetic field can be approximated by a fixed field of strength B₀ over some length L ± δL. Then, the energy of the electron isϵ=ecB0−x2+ΔxΔzz2z2−zM+L22−z2−zM−L22,where z_M ± δz_M is the location of the center of the magnetic field. Note that the variation in the effective field strength corresponds to a minor variation in energy,δϵBϵ=δBB0=0.0013,for a field strength of B₀ = 0.760 T and δB = 0.001 T (with the latter an instrument measurement error). If we look at the variation in the propagation axis z, the variation in the energy can be quantified asδϵzϵ=z2x1−x2δz1z2−z1x2z1−x1z22+4z2−zM2δL2+4L2δzM2z2−zM+L/22−z2−zM−L/222+z1x2−x1z2−z1x2z1−x1z2+2Lz2−zM+L/22−z2−zM−L/222δz221/2.

For our spectrometer, the expected energy variation due to the positional location measurement error δz₁ = δz₂ = δz_M = δL = 0.5 mm is δϵ_z/ϵ = 0.009 for a 6 GeV electron energy. The total error is given byδϵϵ=δϵxϵ2+δϵzϵ2=0.112.

At the lower energy limit of our spectrometer (∼600 MeV), we expect electron trajectories with x₁ = 54.660 mm, x₂ = 93.652 mm, and δx₁ = 41 µm, δx₂ = 63 µm. The resolution is roughly the same as for the higher energy electron trajectories since we view the scintillating screen at a near-normal incidence. This yields δϵ_x/ϵ = δϵ_z/ϵ = 0.012. For low energies, we estimate the total error as δϵ/ϵ = 0.017.

The total error energy as a function of the electron energy is shown in Fig. 5, where the maximum plotted error is 18.6% for a 10 GeV electron energy.

Fig. 5. The electron spectrometer total relative error in energy retrieval as a function of the electron energy.

下载图片 查看所有图片

Using G4Beamlines,33 a particle simulation and tracking program, we could simulate electron trajectories through our detector using various initial parameters while including the measured dipole field map. With these simulations, we could determine the parameter space (all the positions for all possible pointings between −1 and +5 mrad) for each detector scintillating screen (Fig. 6). For each experimental shot, we obtained the positions of the bunch or bunches on each screen, and using the parameter space diagrams, we determined which pointing corresponded to the same energy reading on both screens. This provided the energy calibration for plotting the shot and the spectrum. As a final check and when possible, the calibration was done for multiple points to ensure that different parts of the spectrum did not have different pointings.

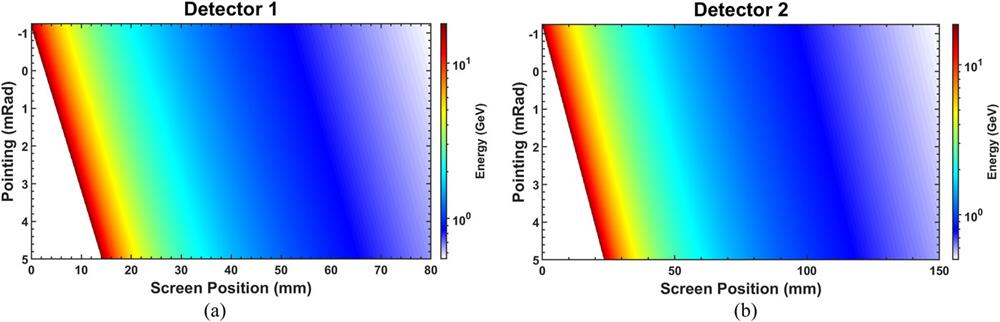

Fig. 6. The parameter space for the DRZ scintillating screens 1 and 2 (Detector 1 and Detector 2, respectively) for various initial electron pointings and energies. The experimental electron spectrum is matched on the two screens, and the corresponding pointings and energies are retrieved for each spectrum feature or each bunch.

下载图片 查看所有图片

Following calibration protocols found in the literature,34–37 the imaging plates were used to cross-calibrate the electron beam charge impinging on the scintillating screens. The charge of the electron beam was determined from the imaging plate using the formula:Q=SeREαt,N,where S is the PSL signal from the imaging plate, e is the elementary charge, R(E) is the imaging plate response sensitivity for a given incident electron energy E, and αt,N is the convoluted attenuation of the signal due to repeatedly scanning N times and the passage of time (t). Both R(E) and αt,N were empirically determined.

To obtain the charges on the shots without an imaging plate, we correlated the charge obtained from the imaging plate with the light signal captured by our optical camera equipped with a narrow band-pass filter to remove some of the background light. All shots were taken with the camera set to zero gain and with a fixed exposure length. In an effort to avoid signal saturation of the CCD pixels, the aperture f-stop of the imaging lenses was set a priori based on our best estimate of the expected signal intensity. Each decrease in the aperture f-stop corresponds to a doubling of the light intensity on the sensor, and conversely, each increase in the aperture f-stop corresponds to a factor of two decrease in the light intensity. The f-stop for each shot was recorded, and the corresponding correction factor was applied to obtain the emission signal from the scintillating screen. As determined from shots recorded with the imaging plate signal, the scintillating screen emission signal showed a linear relationship with the electron beam charge. Despite our aim of avoiding the signal saturation regime, some electron spectra were saturated. The retrieved charge was underestimated in these cases.

3 III. RESULTS

In baseline shots without nanoparticles, we produced typical electron bunches similar to those published by Wang et al.38 with electron energies around 2 ± 0.08 GeV and charges of a few hundred pC (see Fig. 7).

Fig. 7. A typical shot recorded without nanoparticles and shown on both DRZ screens. The difference in charge and divergence is due to the different responses of the DRZ screen and the optical system assembly.

下载图片 查看所有图片

The low repetition rate of the TPW laser precluded systematic parameter scans, and the nature of high-power laser systems with a limited beam time resulted in 26 successful shots (23 with and three without nanoparticles) in our experimental campaign, from which two shots with nanoparticles showed electron energies beyond 10.4 ± 1.93 GeV. The electron spectra that displayed the highest attained energies are shown in Figs. 8 and 9. Further electron spectra with energies beyond 2 GeV, including the already mentioned shots, with an energy lower bound cut at 2 GeV, are shown in Fig. 10 and summarized in Table I.

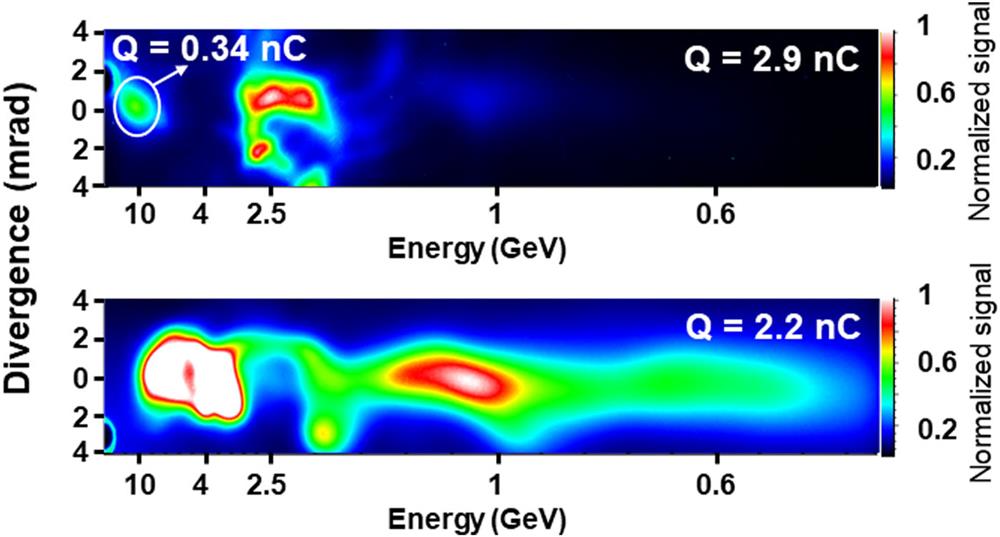

Fig. 8. Electron energy spectra of the two most energetic shots recorded by DRZ2. The energy spectra were recorded simultaneously on two consecutive screens to correct any off-axis electron beam pointing. The top spectrum shows a high energy bunch with the centroid at 10.4 ± 1.93 GeV, a 3.4 GeV rms energy spread, a 340 pC electric charge (2.9 nC total charge), and a 0.9 mrad rms divergence. The bottom energy spectrum shows a 4.9 ± 0.39 GeV centroid electron bunch with a tail energy that extends beyond 10.4 GeV and has a 2.2 nC total charge with a 1.4 mrad rms divergence. The energy spread from the electron beam divergence has not been deconvolved, and its value could be lower than estimated.

下载图片 查看所有图片

Fig. 9. Two of the most energetic electron spectra as viewed on DRZ3 (placed 5.855 m away from the exit of the gas cell) with an energy cutoff of ∼2 GeV.

下载图片 查看所有图片

Fig. 10. Data showing the electron energy spectra with energies above 2 GeV recorded by DRZ1 (left column) and DRZ2 (right column). The DRZ1 screen was placed 1.568 m from the exit of the gas cell, and DRZ2 was placed at 2.556 m from the exit. The first two shots show the highest electron energies beyond 10 GeV.

下载图片 查看所有图片

As an exemplification of the data analysis, let us consider shot number 3 (seen in Fig. 10 and Table I). The initial raw data exhibited two distinct electron bunches, and we accurately determined their positions on the DRZ screens. Subsequently, employing the analysis routine, we determined the unique solution that gave the pointing for each bunch while simultaneously displaying identical energy readings on both DRZ screens. Consequently, upon comparing the pointing values for each bunch, it was revealed that both exhibited identical values of 2.20 mrad (meaning that the electron energy was lower than the real one if uncorrected). Using this corrected pointing value, we derived the electron spectrum.

Similarly, the analysis conducted on shot number 6 necessitated a pointing correction of 0.75 mrad. In contrast, the remaining shots did not require any correction.

Although it is not obvious in Fig. 6 due to the limited optical resolution, the raw data used to generate the parameter space shows that within the experimental error, there is a unique solution that gives the same energy reading on both DRZ screens and has the same pointing.

The position of the laser focal plane was monitored during the experiment but was not accurately controlled and showed significant shot-to-shot fluctuations. We observed that the position of the focal plane inside the gas target was essential to controlling the electron energy, as noted in previous experiments with the TPW laser.38 All electron energy spectra with peak energies beyond 3.5 GeV (all generated using nanoparticles) were obtained with the expected laser focal plane in vacuum (see Fig. 11) at 7 ± 1 mm inside the gas cell relative to the entrance pinhole.

Fig. 11. The dependence of the maximum (or cut-off) electron energy on the position of the laser focal plane in the gas cell. It can be observed that all the shots with electron energies above 3.5 GeV are grouped around 7 ± 1 mm. The red curve is drawn to guide the eye, and the entrance pinhole is at 0 mm where the laser with a vacuum Rayleigh length of ∼1.5 cm is focused.

下载图片 查看所有图片

The significant reliance of the outcome of the LWFA on the spatial location of the laser focal plane within the gas target may be attributed to the nonlinear evolution of the laser pulse and plasma wave being contingent upon the initial plasma conditions, as shown by Ciocarlan et al.39 The potential impact of the entrance pinhole of the gas cell on the laser beam, which has not been quantified,40 should also not be disregarded. Additional empirical and theoretical inquiries will be critical to elucidating the fundamental underlying mechanism, which is presently being actively investigated.

4 IV. DISCUSSION AND CONCLUSION

Currently, we do not have a satisfactory model or experimental explanation for the generation of such high electron energies. Various theoretical scenarios are now under investigation and, if relevant, will be the subject of future publications. Due to the prohibitive computational complexity and cost of performing a Particle-in-Cell (PIC) simulation in the full three-dimensional geometry of a 10-cm-long plasma with a known spatiotemporal shape laser pulse, and the additional need to resolve nanoparticles (with a resolution of less than 5 nm), our future effort will focus on characterizing the nanoparticle-assisted wakefield accelerator in terms of the output electron parameters, i.e., by using better statistics and by probing the wakefields using few-cycle lasers41 and electron beams.42 Due to the high number of shots required for this experiment (statistics and probing), access to a high repetition rate petawatt-class laser (0.01–1 Hz) will be required.

In conclusion, we have shown in this nanoparticle-assisted laser wakefield acceleration experiment that we can produce electron bunches with high energies between 4 and 10 GeV. From the 26 recorded electron spectra under various experimental conditions, one electron spectrum showed an electron bunch with 0.34 nC of charge and a centroid energy of 10 ± 1.86 GeV, while another electron spectrum showed electron bunches with a tail extending beyond 10 GeV. Through further investigations using a high repetition PW-class laser, such as the ones found at BELLA at Lawrence Berkeley National Laboratory, ALEPH at Colorado State University, CoReLS in the Republic of Korea, or ELI-NP in Romania, we may be able to identify mechanisms to enable the production of 4–10 GeV electron beams and the experimental conditions required to improve their quality.
