1. Introduction

In an atomic system, quantum coherence has resulted in interesting and abundant outcomes, including trapping of atoms, Bose–Einstein condensates, and laser cooling. As an intriguing instance of quantum coherence, electromagnetically induced transparency (EIT) is a phenomenon where a non-transparent medium is changed into a transparent one with a narrow window, leading to the dynamical storage of light in solid-state systems^[1] and no inversion of the laser^[2]. In a three-level atomic system, two excitation ways toward high energy level destructively interfere with each other, which leads to a cancellation of absorptions^[3,4]. Owing to the high quality factor and strong dispersion, the EIT phenomenon has demonstrated excellent potentials for intriguing photonic applications, such as non-linear and slow light devices. In classical systems, it has been theoretically proved that the interference between coherent optical waves can induce an EIT-like phenomenon^[5], which can be exploited to block and capture light^[6]. On account of the negligible propagation loss, mimicking the EIT phenomenon is promising and attractive in metamaterials. Notably, metamaterials are novel artificial metal structures that are composed of periodically arranged basic unit cells, which exhibit response to the electric and magnetic components of the electromagnetic field^[7]. By manually designing the geometric parameters, it is feasible to tailor the propagation characteristics with a large degree of flexibility and intrigue numerous interesting properties, including enhanced non-linearity and tremendous group refractive index^[8,9], whose schemes have been applied on optical buffers^[10], slow light devices^[11,12], and biochemical sensors^[13]. Particularly in the terahertz (THz) field, the metamaterials serve as distinguished candidates for sensing^[14], next-generation communication^[15], and imaging applications^[16].

Several essential units are commonly utilized in constructing THz metamaterials, such as cut-wire resonator^[17], closed-ring resonator (CRR)^[18], and split-ring resonator (SRR)^[19], allowing for prosperous applications relative to the plasmonic hybridization^[20]. In practical experiments, EIT-like phenomenon in metamaterials is induced and observed by exciting a polaritonic resonance formed by bright and dark eigenmodes^[21]. Precisely, the dark mode often originates from the broken symmetry of system, such as SRRs. In general, the bright eigenmode needs an absorption of the electric field with a broad width, whereas the dark eigenmode presents a narrow line width^[22]. Similar to the EIT phenomenon, the interference between bright and dark eigenmodes can be regarded as a plasmonic analogue of the EIT phenomenon, which is plasmon-induced transparency (PIT) in classical systems^[23]. In order to enhance the active control of the PIT phenomenon by external stimuli, the metamaterials are often hybridized with a variety of materials, including superconductors^[24], semiconductors ^[25], and graphene^{[26–29" target="_self" style="display: inline;">–29]}, using their natural response to electrical^[30,31], optical^[32], mechanical^[33], and thermal stimuli^[34]. Among these conductors, semiconductors can provide carrier injection to shunt the capacity in metamaterials, controlled by external stimuli. One salient and significant modulating approach is the all-optical modulation of the PIT effect in a picosecond time scale, which is highly desired to novel ultrafast devices^{[35–40" target="_self" style="display: inline;">–40]}. To date, all-optical modulation of metamaterials and semiconductors has been established as a hot topic worthy of numerous scholar attentions^[41,42]. However, most of the reported works focus on a single PIT modulation, in which only one function can be acquired at a time.

In this work, we present a detailed investigation on the simultaneous forward and reverse modulation of the PIT phenomenon along two polarization directions, respectively, in a delicately designed metamaterial device. In this device, SRRs and split cut-wire resonators (SCWRs) are fabricated on a silicon-on-sapphire (SOS) wafer. Accounting for the different metal structures along two planar perpendicular directions, the PIT phenomena are simultaneously modulated and demodulated in two directions via external optical stimuli. Importantly, one can actively manipulate and select the modulating process by rotating the metadevice. The optical-pump THz-probe (OPTP) measurements reveal that the modulation of PIT phenomena is accompanied by the sharp transparent peaks with modulation depths of 109% and 129% and remarkable slow light effects. Alternatively, the response time is measured to be less than 2 ps, owing to the ultrafast response of Si.

2. Results and Discussion

The schematic of the metamaterial device for OPTP is depicted in Fig. 1(a). THz beams travel through the area on the surface of metamaterials, where the laser beam illuminates on Si to excite the free carriers. Specifically, the THz beams are linearly polarized along two planar perpendicular directions, denoted as x polarization and y polarization, respectively. The configuration of the unit cell is displayed in Fig. 1(b). It is seen from this figure that the golden structure is deposited onto the surface of an SOS wafer, while the Si layer is sculptured into two parts, which includes the shape of islands and the metal structures, in order to electrically connect the SCWRs of metamaterials. In addition, the fabricated metadevice is in great agreement with the designed layout, which is indicated by the optical microscopic image in Fig. 1(c).

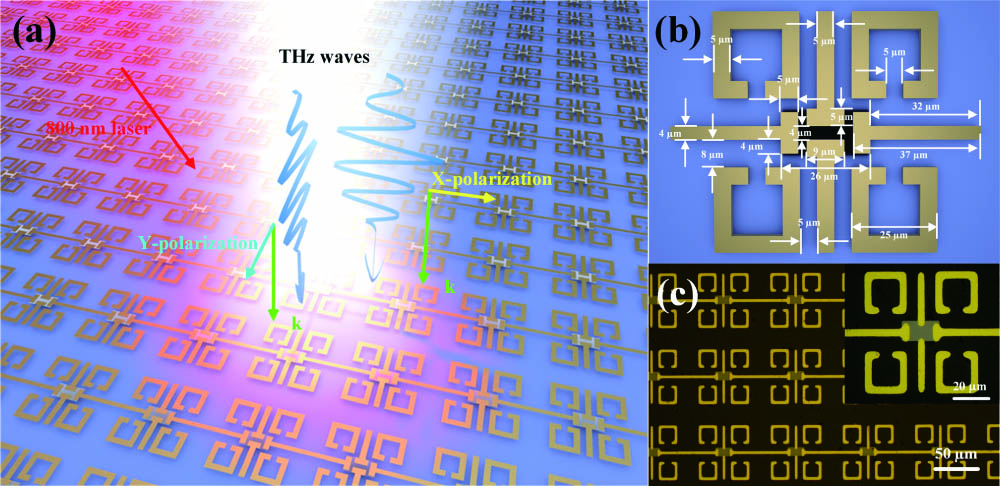

Fig. 1. (a) Diagrammatic illustration of the polarization-dependent PIT modulation in the metadevice for OPTP spectroscopy. (b) Schematic of the unit cell of the metadevice. The sizes have been marked in the figure. The black area is the bared Si island, whose sizes are 26 µm in the horizontal direction and 12 µm in the vertical direction, respectively. (c) Optical microscopic image of the periodically arranged unit cells. Inset is an amplified photo of a single unit cell. The periods are 90 µm and 95 µm in directions of x polarization and y polarization, respectively.

下载图片 查看所有图片

To begin with, the polarization dependence of THz waves transmission rates in the metaphotonic device is investigated, with the results being presented in Fig. 2. In case of THz x polarization, an intrinsic PIT phenomenon is observed in the frequency regime from 0.4 THz to 1.2 THz without an outer laser pump, represented by the black curve in Fig. 2(a). Moreover, a sharp transparent window appeared to be 86.3% at 0.81 THz, between a pair of dips at 0.70 THz and 1.03 THz, with a quality factor of 4.0. When under an exterior laser pump excitation with its power changing from 0mW/cm2 to 2000mW/cm2, the PIT phenomenon in this metaphotonic device gradually disappears. On the other hand, for THz y polarization, a small transparent dip is found at 0.91 THz without an external laser pump, associated with a high transmission rate, which is shown as the black curve in Fig. 2(b). Pumped by laser beams, the metaphotonic device realized a PIT effect. One significant finding is that when the laser pump ascends from 0mW/cm2 to 2000mW/cm2, the quality factor gradually increases to 4.7. Alternatively, the sharpest transparent window appears in between two other dips. The numerically calculated transmission rates are shown in Figs. 2(c) and 2(d). In order to mimic the variational conductivity of the Si island pumped by laser beams, the conductivity of Si in calculating was manually set from 10 S/m to 80,000 S/m. Considering the intrinsic conductivity of Si, the minimum of its conductivity was set as 10 S/m rather than 0 S/m. Importantly, the shapes of calculated transmission rates are consistent with the measured data. However, the red-shift behaviors are discovered from the calculated transmission rates when compared with the experimentally measured spectra. One reasonable explanation is that the fabrication is deviated from the designed layout. This error causes the electromagnetic resonances appearing at blue-shifted frequencies. With the conductivity set manually, the trend of calculated transmission rates matches well with that of experimental measurement. The difference between transmission rates of the Fano peak and the left Fano dip is defined as the maximum of transmission difference (DM) when the PIT effect appears. In the case that the PIT effect vanishes, the difference of transmission rates is defined as the minimum of transmission difference (Dm). In this context, the modulation depth is defined as (DM−Dm)/DM. According to the experimental measurements, the modulation depths are extracted to be 109% for THz x polarization and 129% for THz y polarization.

Fig. 2. Polarization-dependent modulation of PIT effects in two perpendicular THz polarization directions, with a time delay of 40 ps. Experimentally measured transmission rates of THz waves for (a) x polarization and (b) y polarization of metaphotonic devices, pumped by a series of pumping powers (shown as labels). The numerically simulated transmission rates of THz waves for (c) x polarization and (b) y polarization of metaphotonic devices, with conductivity of Si island varying corresponding to the experimental measurement (shown as labels).

下载图片 查看所有图片

Additional insights are furnished by the exploration of the slow light property in metaphotonic devices. Here, both the numerical simulations and experimental measurements are performed to acquire the THz transient group delay, whose results are demonstrated in Fig. 3. In cases of THz x polarization, a pair of dips appear at 0.70 THz and 1.04 THz when under the pump fluence of 0mW/cm2, shown as the black curve in Fig. 3(a), whose group delays are −7.9ps and −5.1ps, respectively. In term of the y polarization [see Fig. 3(b)], the PIT phenomenon occurs when the metadevice is pumped at 2000mW/cm2, where a pair of dips associated with delay values of −1.22ps and −0.49ps appear at 0.78 THz and 1.13 THz, respectively. Additionally, only one dip of −0.43ps is observed at 0.91 THz when the laser pump is turned off. Moreover, the numerical calculations are demonstrated in Figs. 3(c) and 3(d), which are in good agreement with the experimental measurements, except for the two following aspects. Firstly, the dips for THz x polarization reach as high as −17.66ps and −11.41ps, and their shapes are sharper than the experimentally measured ones. In addition, for y polarization, when conductivity is 10 S/m, the dip of the numerical calculation is also sharper than experimental measurements. However, other dips are very consistent with experiments, without the presence of the above issues. It is referred that the precision of the experimental measurement depends on the minimum movement of the translational stage. As a result, the fixed space interval of the translational stage causes the sharp dips that cannot be detected. Secondly, the frequency of calculated results shows red-shifting features when compared with the measured ones, which may be caused by the mismachining tolerance.

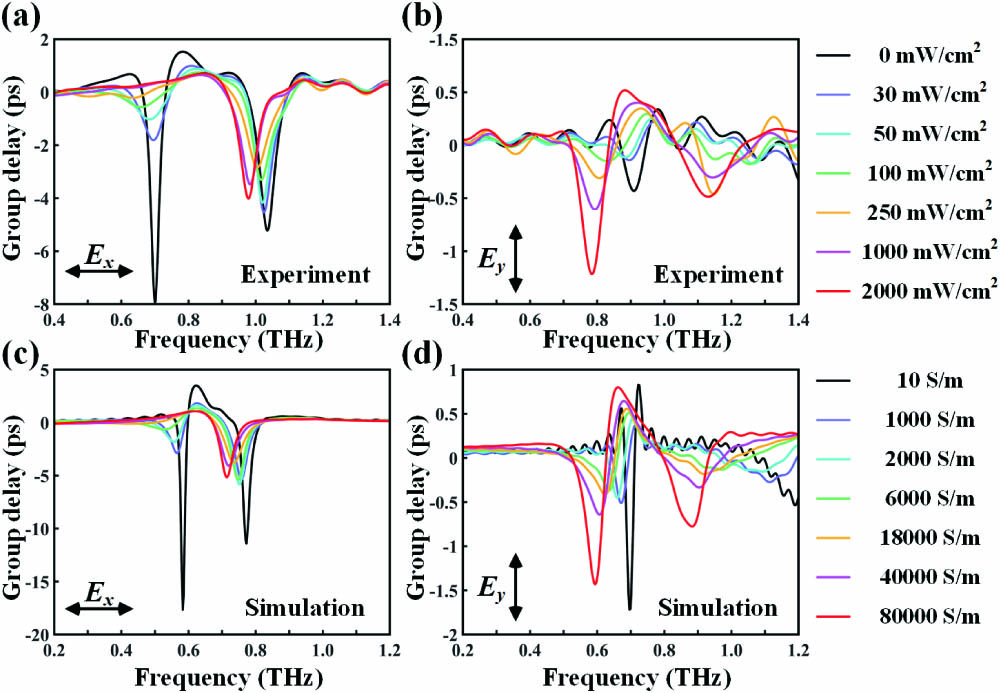

Fig. 3. Experimentally measured THz transient group delay for (a) x polarization and (b) y polarization, with the metaphotonic device pumped by laser beams for a series of fluence (as labels). Numerically calculated group delay of THz waves for (c) x polarization and (d) y polarization with conductivity of Si island changing as labels. The time delay was 40 ps.

下载图片 查看所有图片

In addition to capturing the influence of diverse pump fluence on modulation, the transient process of modulation in the time domain was also studied, as presented in Fig. 4. When under a pump with fluence of 2000mW/cm2, the PIT phenomenon occurs, accompanied by a transparent window. This PIT phenomenon vanishes with an increasing time delay, as illustrated in Fig. 4(a). In the meantime, the transparent peak and the right transmission dip both show red shifts. The time delay is defined as 0 ps for the translational stage at the original state. At this time, the THz waves arrive earlier than laser pump. With the increment of time delay, the intrinsic transparent dip reappears, and other transparent peaks and dips exhibit blue shifts towards their original position. In particular, when excited by a pump with fluence of 2000mW/cm2, the PIT effect suddenly occurs [see Fig. 4(b)]. A pair of transparent dips appear, accompanied by a transparent peak. As time delay further increases, the PIT effect gradually vanishes, and the transmission rates recover towards the original spectrum.

Fig. 4. Experimentally measured THz transient color map of transmission rates for (a) x polarization and (b) y polarization, under pump fluence of 2000mW/cm2.

下载图片 查看所有图片

To investigate the optical characteristic of the SOS wafer, OPTP experiments are carried out using the THz time-domain system (TDS). Here, the laser pumps with fluences of 500mW/cm2, 1000mW/cm2, and 2000mW/cm2 were applied to spots on the SOS wafer. The dynamics of the SOS wafer is described by the transient negative differential transmission (−ΔT/T). The transient negative differential transmission indicates the real-time dynamics of photo-generated carriers of the SOS wafer, whose peak is proportional to the photo-conductivity, assuming that the carrier mobilities are unchanged^[43]. As shown in Fig. 5, the photo-generated carriers reach the maximal value within ∼2 ps. Limited by the total length of translational stages, the whole period of photo-generated carriers containing the exciting and decaying processes could not be completely recorded. To analyze the temporal evolution, a single exponential function [−ΔT(t)/T0=Ae−t/τ+B] is exploited to fit the experimentally measured results, under an assumption that the slow decay is attributed to trap-assisted recombination. Thus, the fitting curves are shown in Fig. 5, with the decay constants retrieved from the fitting curves being 473 ps at 1000mW/cm2.

Fig. 5. Negative differential transmission of SOS wafer pumped by laser beams at a series of powers (as labels). The measured data was fitted using a single exponential function.

下载图片 查看所有图片

Aiming at demonstrating the underlying mechanism of formation and vanishing, we performed numerical calculations on transmission rates and electromagnetic field distributions of the units in metaphotonic devices. The calculated results are shown in Fig. 6. The orthogonal SCWRs are designed for the modulation in vertical directions. For THz x polarization, with conductivity of Si set as 10 S/m, two transparent dips appear when there are only SRR pairs and CW, respectively. The localized surface plasmon (LSP) resonance in SCWRs and the inductive-capacitive (LC) resonance in SRR pairs couple with each other, leading to a typical PIT phenomenon with a transparent window between a pair of transparent dips. The electromagnetic field of these three units is shown in Fig. 6(e). With conductivity of Si set as 80,000 S/m, the LSP resonance in the SCWR disappears, since the effective electrical length of the SCWR is changed by the Si island. The LC resonance alone is not able to excite the PIT phenomenon. Consequently, the PIT phenomenon vanishes in the meantime, as shown in Fig. 6(f). For the THz y polarization, when the conductivity is set as 10 S/m, the LSP resonance is vibrated in two parts of SCWRs, as shown in Fig. 6(g), corresponding to a transparent dip at around 1.27 THz illustrated as the inset in Fig. 6(c). In other aspects, the transmission rate of SRR is at a high level, resulting in the occurrence of a transparent dip at 0.71 THz in units of SCWR and SRR. As conductivity of Si increases to 80,000 S/m, the LSP resonance is in the whole SCWR. The electromagnetic field of LSP resonance stimulates the LC resonance in SRR. Then, these two resonances couple with each other, resulting in the PIT phenomenon. The formation process is shown in Figs. 6(d) and 6(h).

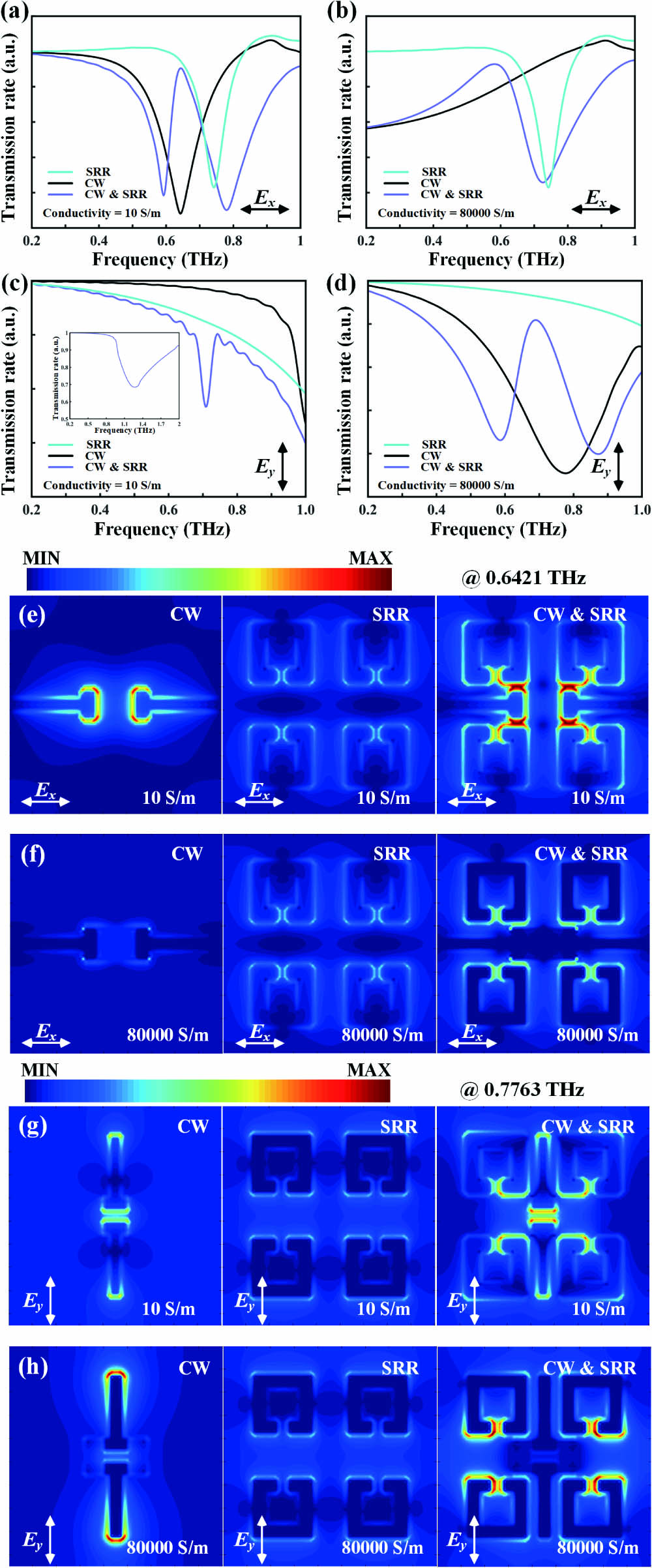

Fig. 6. Intrinsic coupling of the PIT effect for appearing and vanishing. The relative transmission rate of SRR, CW, and their combination, respectively, with conductivity of Si set as (a) 10 S/m and (b) 80,000 S/m for THz x polarization, and (c) 10 S/m and (d) 80,000 S/m for THz y polarization. Numerically calculated electromagnetic field distributions of these units with conductivity of (e) 10 S/m, (f) 80,000 S/m for THz x polarization (at 0.6421 THz), and (g) 10 S/m, (h) 80,000 S/m for THz y polarization (at 0.7763 THz).

下载图片 查看所有图片

3. Conclusion

In summary, we have established a comprehensive study on the polarization-dependent modulation of the PIT phenomenon in the THz metaphotonic device. Specifically, the SCWRs and SRRs are fabricated on an SOS wafer of this device. The forward and reverse PIT modulating processes can be manipulated via the rotation of the metadevice. Moreover, remarkable modulation effects of transmission rate and group delay are observed, the modulation depths of which reach 129% and 109%, respectively. Additionally, the resonant THz transmission is modulated on the picosecond time scale, owing to the ultrafast response of Si. This work set out to gain a better understanding of actively controlling the modulating process of the PIT phenomenon, which also inspires more ingenious designs for novel photonics devices.
