激光与光电子学进展, 2022, 59 (18): 1810014, 网络出版: 2022-08-29
多尺度特征融合残差网络的高光谱地物分类
Hyperspectral Image Classification Based on Multi-Scale Feature Fusion Residual Network
高光谱图像分类 残差结构 多尺度特征融合 光谱空间特征提取 卷积神经网络 hyperspectral image classification residual structure multi-scale feature fusion spectral-spatial feature extraction convolutional neural network
摘要

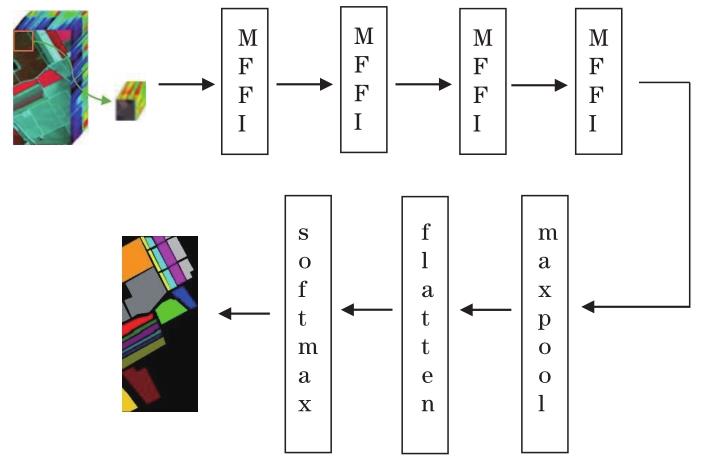

为充分提取高光谱图像(HSI)的光谱空间信息特征,实现HSI的高精度地物分类,提出端到端的多尺度特征融合残差(MFFI)模块。该模块结合了3D多尺度卷积、特征融合以及残差连接3种手段,实现了HSI多尺度光谱空间特征的联合提取。因模块具有端到端特性,可通过堆叠多个MFFI模块得到具有提取深层特征能力的MFFI网络。该网络在Salinas、Indian Pines和University of Pavia 3个HSI数据集的平均总体准确率为99.73%,平均准确率为99.84%,平均卡帕系数为0.9971。结果表明:MFFI模块可以有效提取不同类型地物数据集的光谱空间特征,并取得良好的分类结果。
Abstract
In order to fully extract the spectral-spatial features of hyperspectral image (HSI) and to achieve high-precision ground object classification of HSI, an end-to-end multi-scale feature fusion identity (MFFI) block is proposed. This block combines 3D multi-scale convolution, feature fusion and residual connection. Through this block, multi-scale spectral-spatial joint features of HSI can be extracted. Because of the end-to-end feature of the block, the final MFFI network can be obtained by stacking multiple MFFI blocks. The average overall accuracy of 99.73%, average accuracy of 99.84%, and Kappa coefficient of 0.9971 are obtained on three HSI datasets: Salinas, Indian Pines and University of Pavia. The results show that the proposed MFFI block can effectively extract the spectral-spatial features of different types of ground object datasets and achieve satisfactory classification results.
邓子青, 王阳, 张兵, 丁召, 边历峰, 杨晨. 多尺度特征融合残差网络的高光谱地物分类[J]. 激光与光电子学进展, 2022, 59(18): 1810014. Ziqing Deng, Yang Wang, Bing Zhang, Zhao Ding, Lifeng Bian, Chen Yang. Hyperspectral Image Classification Based on Multi-Scale Feature Fusion Residual Network[J]. Laser & Optoelectronics Progress, 2022, 59(18): 1810014.
