1 引言
乳腺癌是最常见的恶性疾病，具有较高的死亡率和发病率，是全球特别是发展中国家女性死亡的主要原因之一[1-3]。乳腺癌筛查方法有X光摄影、钼靶检查、乳腺超声和乳腺增强磁共振等，但这些方法作为临床辅助手段，无法作出最终诊断，须以临床组织学结论为诊断金标准。由于组织学诊断易受医师经验等外界因素的影响，临床上迫切需要客观、快速、高准确率的诊断方法。
光谱学为临床检测正常和癌变组织提供了一种新方法[4]。作为获取与生物化学信息相关的代谢性质以及组织中细胞外基质结构成分的工具，荧光光谱法具有无损、安全、高效的优点[5-7]。丁建华等[8]使用488 nm激光源获取离体乳腺正常组织、良性瘤组织和癌组织的自体荧光光谱，分析后发现三种组织的荧光光谱具有明显差异。荧光光谱是多个显著荧光团的叠加光谱，直接分辨谱峰具有较高难度。已有研究表明，可以使用高斯函数拟合方法、Gram-Schmidt方法以及光谱反褶积等方法得到荧光光谱的基谱，实现对疾病的诊断。秦艳利等[9]使用高斯曲线拟合方法分别对健康牙齿以及患有牙结石牙齿的荧光光谱进行拟合，结果发现，676 nm和486 nm处的荧光峰强度比可以作为诊断牙结石的标准。Pu等[10]使用Gram-Schmidt方法得到了乳腺组织中关键荧光团的光谱，有效检测了乳腺组织中荧光团的组成随癌症发展的变化。Chithra等[11]使用光谱反褶积方法计算不同内源荧光团的荧光强度、峰值波长和全波半峰全宽最大值，得到了乳腺癌患者血浆中的多种荧光基团，并发现荧光基团信息可以将治疗和未治疗患者区分开来。
乳腺组织自体荧光光谱法多采用420～512 nm波段的光源，而本团队采用波长为405 nm的激光源采集乳腺组织切片的自体荧光光谱，避免了活体检测时脂肪和血液对光谱的干扰，提高了光谱强度。由于部分荧光物质所发射的荧光波长距离较近，会出现重叠现象，直接使用荧光光谱峰面积进行量化分析，会导致量化不客观、不准确等问题。为了解决这一问题，本文使用高斯函数拟合乳腺组织切片的自体荧光光谱，然后利用拟合后的峰面积比分析正常组织和癌变组织的荧光光谱信息(峰面积、中心波长、半峰全宽)。研究表明，使用高斯函数拟合荧光光谱可以简化提取的光谱信息，并且可以准确、客观地分析正常组织和癌变组织的荧光光谱，最终诊断是否为乳腺癌。对较大数量样本研究后，本文决定采用支持向量机(SVM)算法对荧光光谱进行分类，从而实现对乳腺癌的快速诊断。
2 实验系统和方法

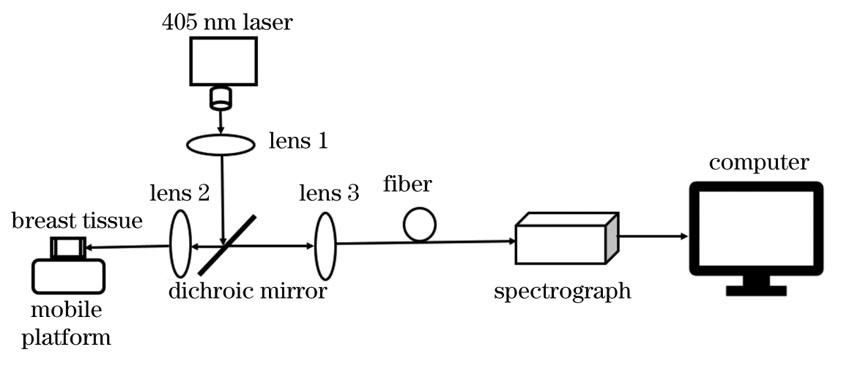

实验装置如
表 1. 实验仪器信息表
Table 1. Experimental instrument information table
|
用于实验的乳腺组织切片样本共80片，包括28片SP染色正常组织切片，10片苏木精-伊红(HE)染色癌变组织切片，10片未染色癌变组织切片，32片SP染色癌变组织切片。SP染色法中使用的染色剂由蒸馏水、DAB A、DAB B、DAB C按体积比为5∶1∶1∶1混合配制而成，HE染色法中的染色剂由苏木精与伊红按体积比为1∶1混合配制而成。染色剂配比时效为0.5 h，需在该时间内完成光谱采集。
本次实验中对每个组织样本分别检测10个不同的位置点，每一个位置点均采集三次光谱，共获取4类样本的2400组数据。采集光谱积分时间为112 ms，波长采集范围为450～750 nm。为避免日光等照明光源对实验结果造成干扰，以上实验操作均在暗室条件下完成。
数据处理采用Origin软件，先对4类乳腺组织样本的荧光光谱进行平均处理，然后使用Savitzky-Golay函数进行平滑处理，接着使用最值法将光谱峰值归一化到(0，1)范围内，最后使用高斯函数对归一化后的荧光光谱进行拟合。
3 分析与讨论
3.1 背景荧光
实验中使用的载玻片和染色剂产生的背景荧光会影响组织样品的荧光光谱，因此本次实验分别采集了载玻片和染色剂的荧光光谱，如

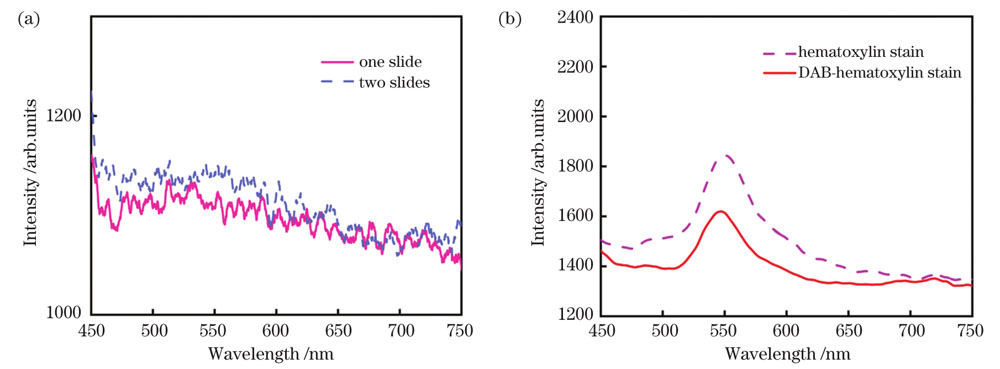

图 2. 载玻片和染色剂的荧光光谱。(a)载玻片的荧光光谱；(b)染色剂的荧光光谱
Fig. 2. Fluorescence spectra of slide and stain. (a) Fluorescence spectra of slide; (b) fluorescence spectra of stain
3.2 乳腺组织的荧光光谱分析

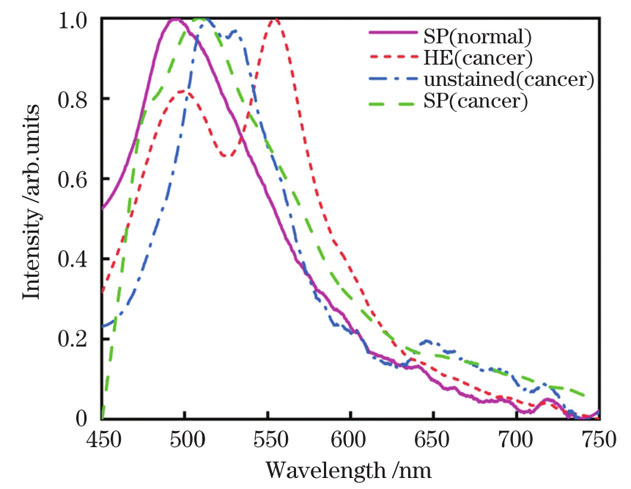

图 4. 高斯函数拟合的归一化平均荧光光谱图。(a)SP染色正常乳腺组织；(b)未染色癌变乳腺组织；(c)HE染色癌变乳腺组织；(d)SP染色癌变乳腺组织
Fig. 4. Normalized mean fluorescence spectrograms fitted by Gaussian function. (a) Normal breast tissue by SP staining; (b) unstained cancerous breast tissue; (c) cancerous breast tissue by HE staining; (d) cancerous breast tissue by SP staining
表 2. 高斯拟合峰的特征参量信息
Table 2. Characteristic parameter information of Gaussian fitting peak
|
由
表 3. 正常乳腺和癌变乳腺组织的峰面积比值A517/A492和A635/A492
Table 3. Peak area ratios of A517/A492 and A635/A492 of normal and cancerous breast tissues
|
由
综上可知：HE染色中使用的苏木精对伊红染液具有荧光淬灭效应，对组织中内源性荧光物质的影响较小，而SP染色过程中使用的封闭液对组织中内源性荧光物质的影响较大，在采集乳腺组织的自体荧光光谱时，应尽量选用石蜡包埋或HE染色切片。
3.3 荧光光谱分类算法实验
采用高斯函数对乳腺组织切片的自体荧光光谱进行拟合，可以提取光谱中的关键荧光基谱，然后通过峰面积比就可以判断组织是否癌变。为客观、准确、高效地筛查乳腺癌变组织，本次实验将采集的乳腺组织切片自体荧光光谱作为数据集，分析了SVM算法对乳腺组织荧光光谱进行分类、判别的可行性。SVM算法是一种有监督的分类算法，利用最优超平面对预测样本点的类别进行判断[22-24]，具有适用于多样本数据集的优势。
正常和癌变乳腺组织的荧光光谱在490～540 nm波段内有较大重叠，不利于判断乳腺组织是否癌变。SVM算法使用核函数将正常和癌变乳腺组织的荧光光谱数据映射为可分数据，可以快速区分癌变组织。采用SVM算法对乳腺组织的荧光光谱进行判别，判别结果的准确率是87.50%，说明SVM算法对乳腺组织荧光光谱分类具有潜在的可行性。后续研究可以从电压、细胞 pH 值等影响组织样品荧光光谱的外界环境因素出发，通过抑制噪声干扰来提高信噪比，进而提高准确率。判别结果的召回率和精度分别为93.94%、88.57%，说明SVM算法可以将癌变乳腺组织荧光光谱的特征信息查全、查准，对乳腺癌变组织的荧光光谱信息具有较高的敏感度和识别能力。判别结果的F1分数为91.18%，说明SVM算法在检测乳腺组织荧光光谱中平衡召回率和精度的能力较强。为了与SVM算法的判别结果进行对比，后续工作拟考虑应用K最近邻(KNN)、卷积神经网络(CNN)等算法分析乳腺组织的荧光光谱，进而进行分类判别。
4 结论
本团队搭建了405 nm激光荧光光谱采集系统，并采用该系统采集了乳腺组织切片的自体荧光光谱；之后提出了使用高斯函数拟合自体荧光光谱的方法，计算了正常和癌变组织在517 nm和635 nm处的荧光光谱峰面积分别与492 nm处荧光光谱峰面积的比值；最后分析了SVM算法对荧光光谱的分类能力。研究结果表明：癌变后，细胞中的荧光基团受代谢影响，导致癌变乳腺组织较正常组织的自体荧光光谱出现了红移现象；使用高斯函数拟合荧光光谱可将重叠峰分离，得到癌变组织在517 nm和635 nm处的峰面积与492 nm处峰面积之比分别为正常组织的2.4～5.5倍和5.4～8.5倍，说明峰面积比对正常与癌变组织具有较强的区分能力。SVM算法的判别结果(准确率为87.50%，召回率为93.94%，精度为88.57%，F1分数为91.18%)证明该方法对癌变乳腺组织具有查全、查准能力，对召回率和精度的平衡能力较强，为乳腺癌的快速诊断提供了研究方向。
综上所述，采用高斯函数拟合荧光光谱可以得到乳腺癌组织中荧光基团的光谱特征信息，峰面积比可以作为诊断乳腺癌的标准，荧光光谱与SVM分类算法模型的结合可以为多样本乳腺癌的快速诊断提供可行途径。
